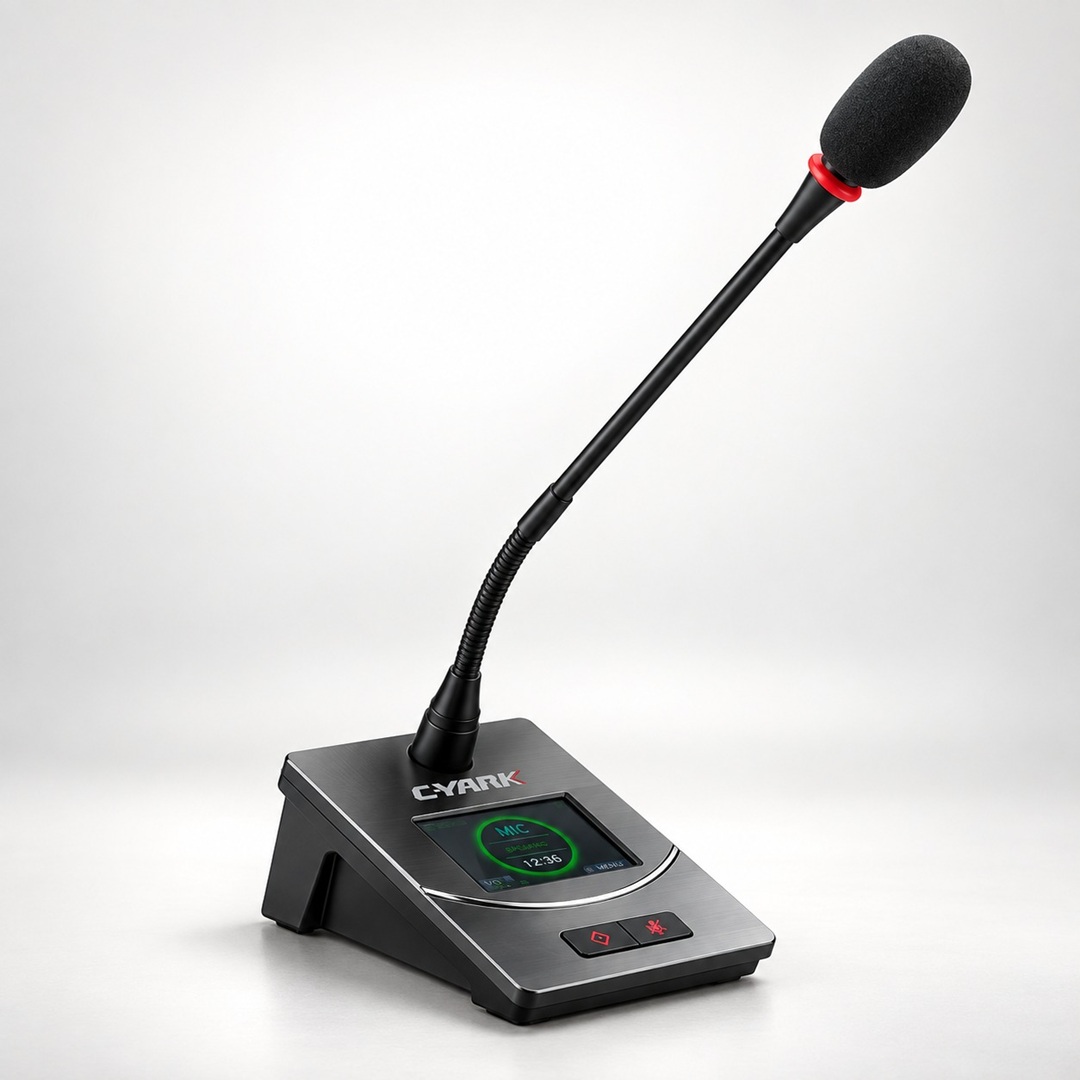

The C-YARK C-869D is a wired conference delegate microphone unit with built-in hi-fi speakers, supplied in Bangladesh by DigiMark Solution as an authorized C-YARK Distributor.
Key features
Built-in speakers at every seat — Dual hi-fi speakers in each delegate unit. In a room of moderate size, this replaces ceiling speakers and an amplifier, because the sound arrives at each participant from directly in front of them rather than from overhead.
Identical to the chairman unit except for priority — Same capsule, same frequency response, same construction. The only functional difference is that the C-869C can mute the room, and this cannot — which is why you order one chairman unit and the rest as delegates.
Earphone socket at every seat — Two 3.5 mm stereo sockets per unit, usable for earphone listening or auxiliary input. Useful for hearing assistance without a separate system.
Host powered over the same cable — DC 24V from the controller down the 8P shielded cable. No local power, no batteries, no charging routine — the practical advantage of a wired system.
Where it is used
Every participant position other than the chairman, in boardrooms, council chambers and committee rooms.
Sizing a conference system
Three factors determine the specification: seat count, room acoustics, and whether proceedings are recorded.
Seat count — one unit per seat plus one chairman unit. Count fixed positions, not typical attendance.
Room acoustics — a hard-surfaced room with glass and tile will echo regardless of microphone quality. Treatment does more for intelligibility per taka than any equipment upgrade.
Recording — if minutes may be challenged or transcribed, specify a controller with built-in recording and the higher-grade capsule. Retrofitting recording afterwards costs considerably more.
Why buy from DigiMark Solution
DigiMark Solution is the Authorized C-YARK Distributor for Bangladesh. Genuine units with manufacturer warranty, local service by our own team, and installation and commissioning by engineers who have specified conference systems for government chambers, courts, universities, and corporate boardrooms since 2006.
Indicative price range in Bangladesh
Price on request. Conference systems are quoted as a complete room rather than per unit. Send us your seat count and room dimensions, and we quote the same day — WhatsApp +880 1979-234342.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized C-YARK distributor. Every C-YARK CY-F320D Conference Delegate Unit with Built-in Speaker System is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION
C-869D
Brand
C-YARK
Model
CY-F320D
Product Type
Wired conference delegate unit
Display
2.4″ HD IPS colour display — meeting mode, unit parameters, date and time
Speaking Indicator
Green illuminated light ring, constant while speaking
Status Lights
Dual colour — green while speaking, red on standby; flashing green prompt from host
Keys
Transparent silicone physical keys — no mechanical click
Power
Passive — powered by the system host at DC 24V
8-Core Interface
T-shaped 8-core — full aluminium foil and water-line shielding
Network Interface
Cat6A, dual RJ45, hand-in-hand connection
Hot Swapping
Supported
Speaking Timer
Built in
Multiple Chairman Units
Supported, with no installation location restrictio
Sensitivity
−35 dBV/Pa
Frequency Response
20 Hz – 20 kHz
Weight
1.4 Kg
Attribute / Feature
Specification Details
Brand
C-YARK
Model
CY-F320D
Product Type
Wired conference delegate unit
Display
2.4″ HD IPS colour display — meeting mode, unit parameters, date and time
Speaking Indicator
Green illuminated light ring, constant while speaking
Status Lights
Dual colour — green while speaking, red on standby; flashing green prompt from host
Keys
Transparent silicone physical keys — no mechanical click
Power
Passive — powered by the system host at DC 24V
8-Core Interface
T-shaped 8-core — full aluminium foil and water-line shielding
Network Interface
Cat6A, dual RJ45, hand-in-hand connection
Hot Swapping
Supported
Speaking Timer
Built in
Multiple Chairman Units
Supported, with no installation location restrictio
Sensitivity
−35 dBV/Pa
Frequency Response
20 Hz – 20 kHz
Weight
1.4 Kg
Complete Installation
What else you need for a working Kit
A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.
Price on request. Complete system pricing depends on the controller, microphone units, cabling, amplification, and seat count. WhatsApp: +880 1979-234342 for a quote.
The chairman unit has priority control and can mute active delegate microphones. Delegate units are designed for participant use.
Generally, one unit per participant seat, plus one chairman unit. Quantity depends on the room's seating capacity.
No. Wired units are powered by the controller at DC 24V through the same cable carrying audio and control signals. Wireless CY-7153 units use a 2500mAh battery with 12–14 hours of speaking time.
Yes. We provide room assessment, cable planning, installation, commissioning, and staff training.
