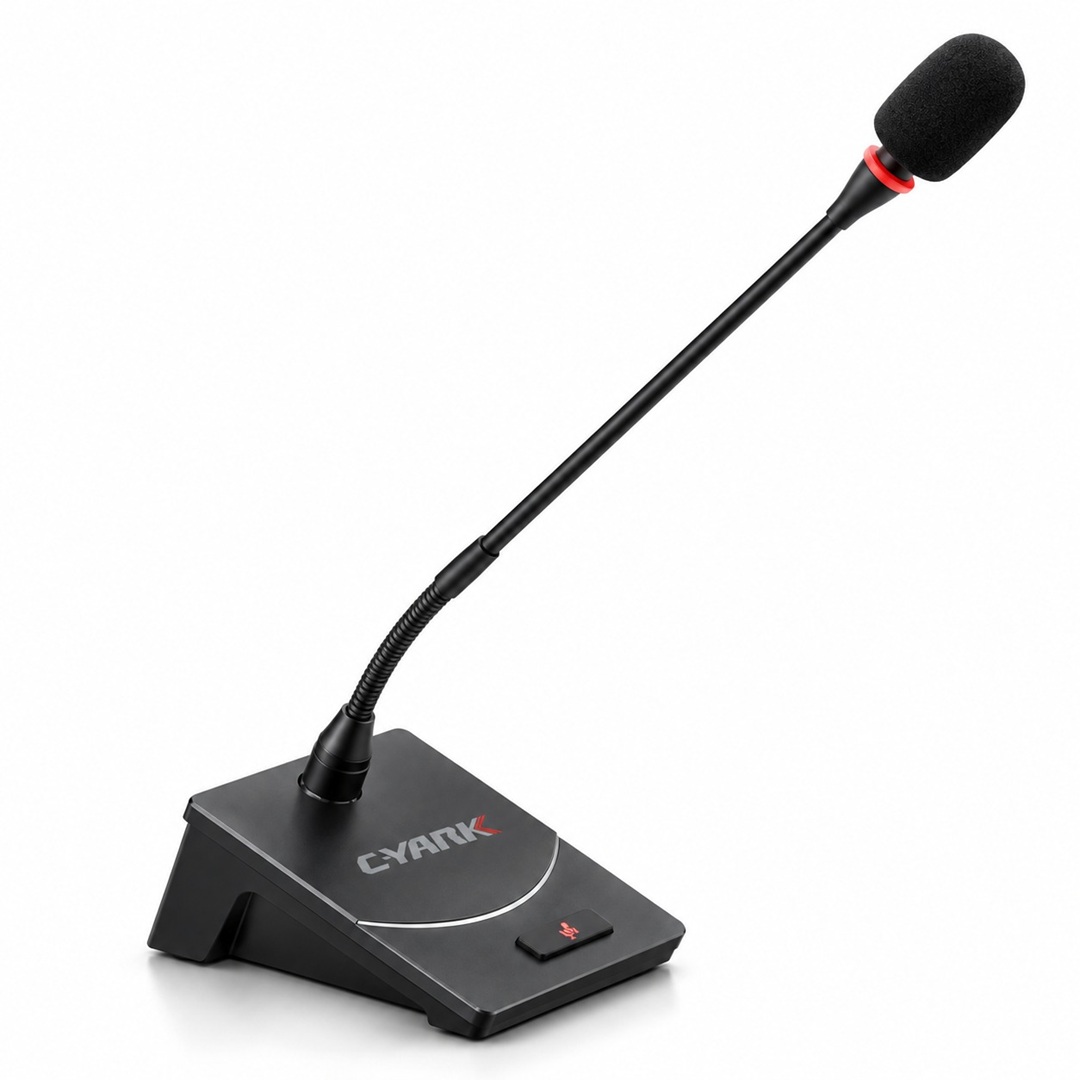

The C-YARK CY-W320C is a wired conference chairman microphone unit with an illuminated ring, supplied in Bangladesh by DigiMark Solution as an authorized C-YARK Distributor.
Key features
20 Hz to 20 kHz with >90 dB signal-to-noise — broadcast-grade capsule — This is a materially better microphone than the C-869 series: full 20 Hz–20 kHz response, >90 dB S/N, <0.05% THD and 135 dB maximum SPL. If the meeting is being recorded, broadcast, or transcribed, the difference is audible.
Red light ring — visible from across the room — The light ring sits on the microphone head rather than on the base, so the chairman's active status is visible to every participant and to a camera. Delegate units use green, so the roles are distinguishable at a glance.
Supercardioid pattern rejects the room — A supercardioid pattern is tighter than the unidirectional capsules used on entry-level units. In a hard-surfaced room, it is what keeps one speaker's microphone from picking up the person beside them, which is the usual cause of muddy conference audio.
Passive — no local power at any seat — Powered from the host at 24V over the hand-in-hand chain. Nothing to plug in at the table, nothing to charge.
Where it is used
The presiding position in boardrooms, council chambers and courtrooms, particularly where proceedings are recorded.
Sizing a conference system
Three factors determine the specification: seat count, room acoustics, and whether proceedings are recorded.
Seat count — one unit per seat plus one chairman unit. Count fixed positions, not typical attendance.
Room acoustics — a hard-surfaced room with glass and tile will echo regardless of microphone quality. Treatment does more for intelligibility per taka than any equipment upgrade.
Recording — if minutes may be challenged or transcribed, specify a controller with built-in recording and the higher-grade capsule. Retrofitting recording afterwards costs considerably more.
Why buy from DigiMark Solution
DigiMark Solution is the Authorized C-YARK Distributor for Bangladesh. Genuine units with manufacturer warranty, local service by our own team, and installation and commissioning by engineers who have specified conference systems for government chambers, courts, universities, and corporate boardrooms since 2006.
Indicative price range in Bangladesh
Price on request. Conference systems are quoted as a complete room rather than per unit. Send us your seat count and room dimensions, and we quote the same day — WhatsApp +880 1979-234342.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized C-YARK distributor. Every C-YARK CY-W320C Conference Chairman Unit is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION
CY-W320C
Brand
C-YARK
Model
CY-W320C
Product Type
Wired conference chairman unit
Speaking Indicator
Red illuminated light ring on the microphone head, constant while speaking
Power
Passive — powered by the system host at DC 24V
Connection
Hand-in-hand daisy chain
Chairman Priority
Yes — controls meeting order; multiple chairman units supported
Placement
No location restriction when connected
Sensitivity
−35 dBV/Pa
Frequency Response
20 Hz – 20 kHz
Input Impedance
2 kΩ
Directionality
Supercardioid unidirectional
Equivalent Noise
20 dBA SPL
Maximum SPL
135 dB (THD <3%)
Signal-to-Noise Ratio
>90 dB
Channel Crosstalk
>80 dB
Total Harmonic Distortion
<0.05%
Colour
Black
Gooseneck Length
425 mm · head 223 × 37 × 29 mm
Base Dimensions
140 × 110 × 59 mm
Weight
1.4 kg
Attribute / Feature
Specification Details
Brand
C-YARK
Model
CY-W320C
Product Type
Wired conference chairman unit
Speaking Indicator
Red illuminated light ring on the microphone head, constant while speaking
Power
Passive — powered by the system host at DC 24V
Connection
Hand-in-hand daisy chain
Chairman Priority
Yes — controls meeting order; multiple chairman units supported
Price on request. Complete system pricing depends on the controller, microphone units, cabling, amplification, and seat count. WhatsApp: +880 1979-234342 for a quote.
The chairman unit has priority control and can mute active delegate microphones. One chairman unit is typically used with the required delegate units.
Generally, one unit per participant seat, plus one chairman unit. Quantity depends on the room's seating capacity.
No. Wired units are powered by the controller at DC 24V through the same cable carrying audio and control signals. Wireless CY-7153 units use a 2500mAh battery with 12–14 hours of speaking time.
Yes. We provide room assessment, cable planning, installation, commissioning, and staff training.
