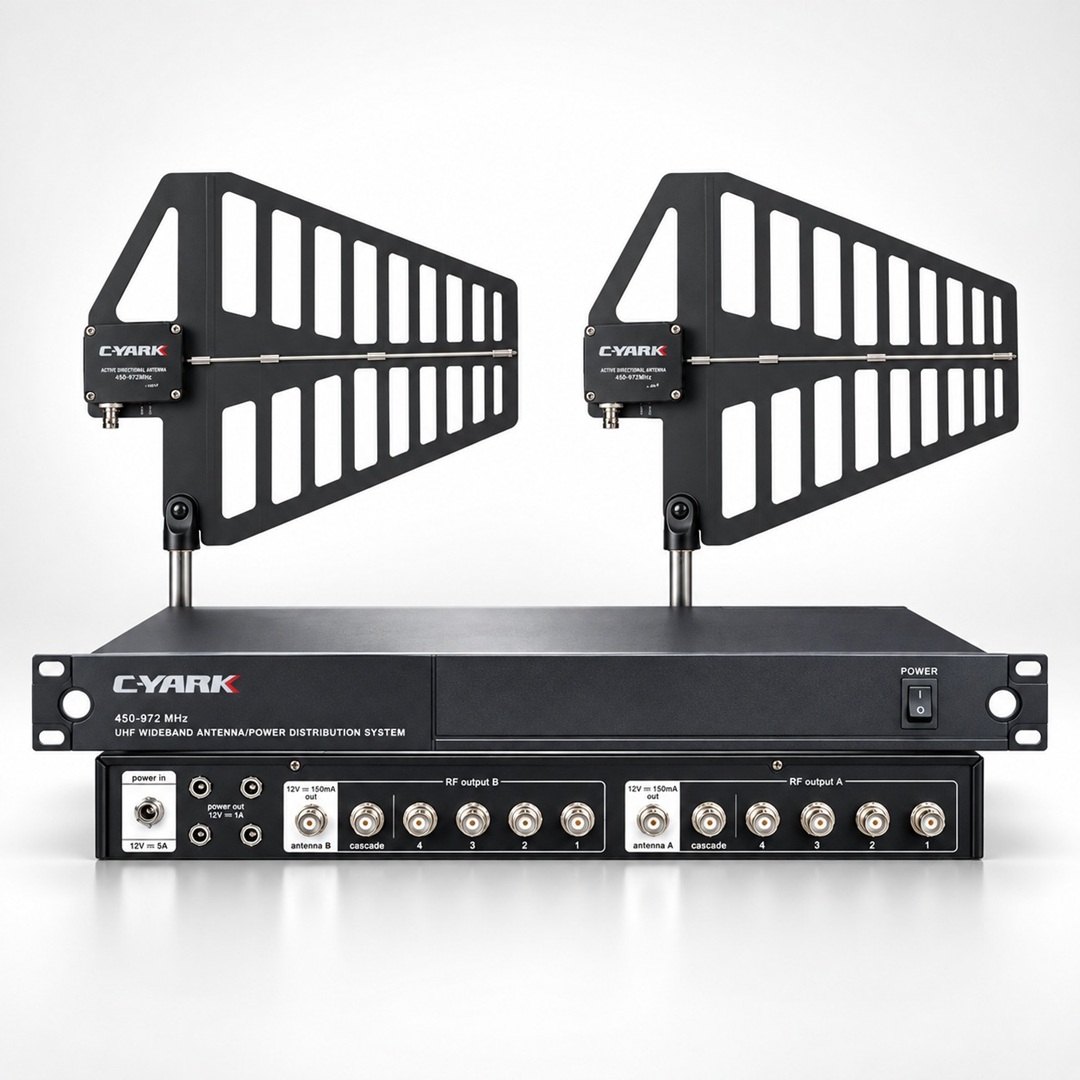

C-YARK UH-505B Wireless Antenna Booster & Distribution System

What the UH-505B is

The C-YARK UH-505B is an active UHF antenna distribution system with a directional antenna and amplifier, supplied in Bangladesh by DigiMark Solution as an authorized C-YARK Distributor.

Key features

• It solves the problem wireless conference systems actually have: range — A wireless conference host has a limited RF footprint. In a long chamber, a room with a gallery, or a hall with structural columns, the units at the far end drop out intermittently — and intermittent dropout is far harder to diagnose than total failure. An active directional antenna moved to the right position fixes it.
• Selectable 3 dB or 10 dB gain compensates for cable loss — Long coaxial runs lose signal. Rather than a fixed amplifier that can overload a short run, the gain is switchable with LED indication of which setting is active. Set it wrong, and you introduce noise; this makes the setting visible.
• One distributor serves five receivers — Ten antenna ports, two per receiver for diversity reception. Plus two BNC cascade ports so a second distribution system shares the same antenna pair — which is how a large venue covers more receivers without a second antenna position.
• Powers the receivers too — Four 12V/1A outputs run up to four devices from the same unit, and the amplifier itself is powered down the coaxial cable. That removes several power adapters from the rack.
• Three mounting methods, weather-resistant — Microphone stand, wall with a swivel bracket, or ceiling suspension — and a weather-resistant design that allows a covered outdoor position where the RF path is better.

Where it is used

Any wireless conference deployment in a large, long, or structurally obstructed room, and multi-receiver installations.

Sizing a conference system

Three numbers decide the specification: seat count, room acoustics, and whether proceedings are recorded.

• Seat count — one unit per seat plus one chairman unit. Count fixed positions, not typical attendance.
• Room acoustics — a hard-surfaced room with glass and tile will echo regardless of microphone quality. Treatment does more for intelligibility per taka than any equipment upgrade.
• Recording — if minutes may be challenged or transcribed, specify a controller with built-in recording and the higher-grade capsule. Retrofitting recording afterwards costs considerably more.

Why buy from DigiMark Solution

DigiMark Solution is the Authorized C-YARK Distributor for Bangladesh. Genuine units with manufacturer warranty, local service by our own team, and installation and commissioning by engineers who have specified conference systems for government chambers, courts, universities, and corporate boardrooms since 2006.

Indicative price range in Bangladesh

Price on request. Conference systems are quoted as a complete room rather than per unit. Send us your seat count and room dimensions, and we quote the same day — WhatsApp +880 1979-234342.
