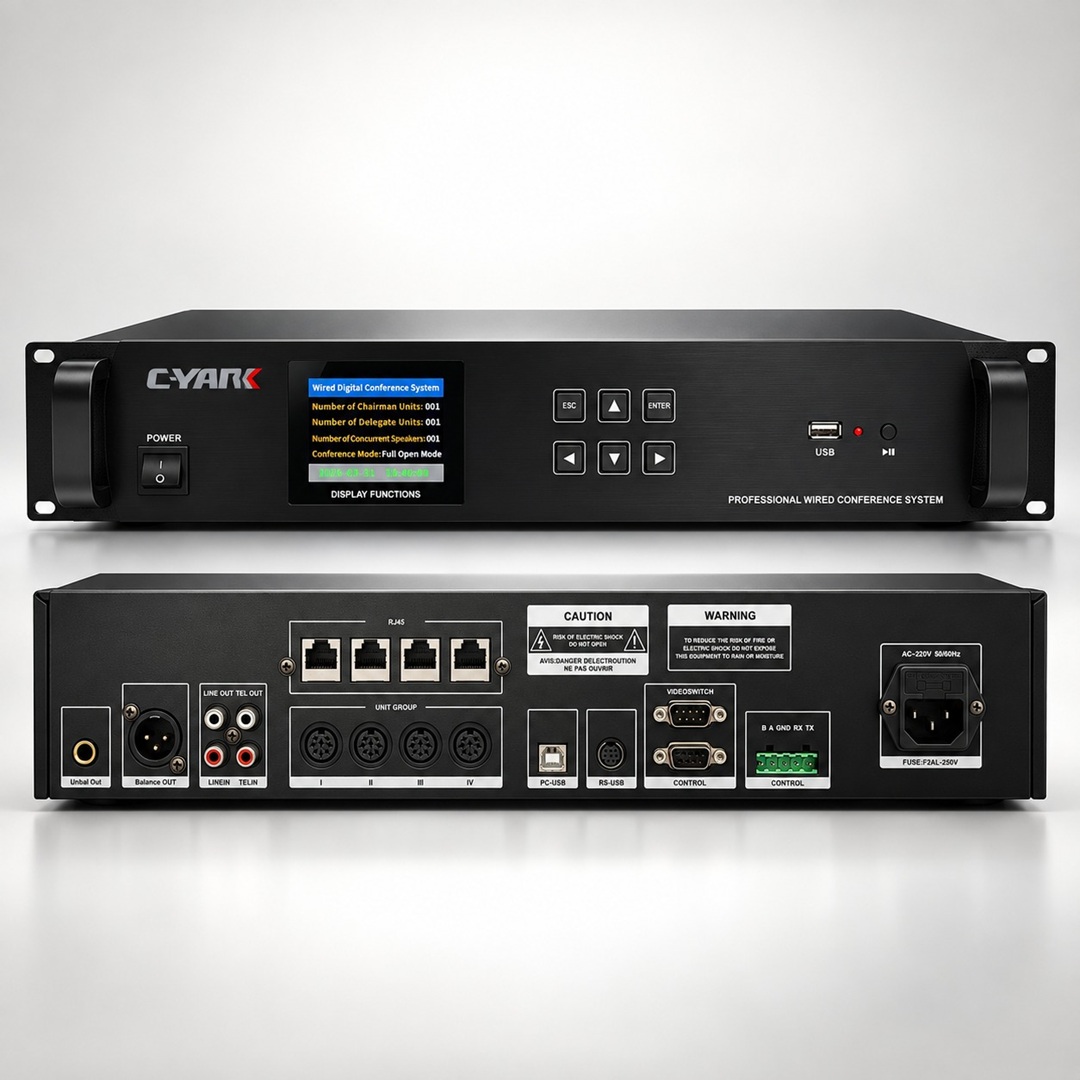

The C-YARK CY-300A is a wired digital conference system controller with USB recording and video tracking, supplied in Bangladesh by DigiMark Solution as an authorized C-YARK Distributor.
Key features
200 units on one controller — assembly-hall scale — Four RJ45 interfaces at 20 units each, plus four 8-core interfaces at 30 units each, expanding to 200 units with an expanded power supply. That is a parliament committee room, a university senate, or a large council chamber on a single controller.
Hot-swappable unit interfaces — Units can be connected and disconnected while the system is running. In a room whose seating changes between sessions, this is the difference between a five-minute reconfiguration and a shutdown, and it also means one faulty unit can be pulled mid-meeting.
USB recording in WAV, not compressed — High-fidelity WAV output rather than a compressed format. For minutes that may be transcribed or challenged, uncompressed audio is materially easier to work with.
Speaking time limits from 0 to 99 minutes — Per-speaker time limits with either a timed close or an automatic close, and the chairman is exempt. For a council or a committee working to standing orders, this enforces the rules without the chair having to interrupt anyone.
Up to 12 chairman units — Twelve positions can hold chairman privilege — suited to a panel, a bench or a multi-party committee where more than one person needs priority.
Where it is used
Council chambers, parliament committee rooms, university senates, large boardrooms and courtrooms requiring recorded proceedings.
Sizing a conference system
Three factors determine the specification: seat count, room acoustics, and whether proceedings are recorded.
Seat count — one unit per seat plus one chairman unit. Count fixed positions, not typical attendance.
Room acoustics — a hard-surfaced room with glass and tile will echo regardless of microphone quality. Treatment does more for intelligibility per taka than any equipment upgrade.
Recording — if minutes may be challenged or transcribed, specify a controller with built-in recording and the higher-grade capsule. Retrofitting recording afterwards costs considerably more.
Why buy from DigiMark Solution
DigiMark Solution is the Authorized C-YARK Distributor for Bangladesh. Genuine units with manufacturer warranty, local service by our own team, and installation and commissioning by engineers who have specified conference systems for government chambers, courts, universities, and corporate boardrooms since 2006.
Indicative price range in Bangladesh
Price on request. Conference systems are quoted as a complete room rather than per unit. Send us your seat count and room dimensions, and we quote the same day — WhatsApp +880 1979-234342.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized C-YARK distributor. Every C-YARK CY-300A Digital Conference System Controller is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION
CY-300A
Brand
C-YARK
Model
CY-300A
Product Type
Wired digital conference system controller
Microphone Unit Capacity
Up to 200 units with expanded power supply
RJ45 Interfaces
4 × RJ45 — 20 units each, 80 units total
8-Core Interfaces
4 × 8-core — 30 units each, 120 units total
Hot Swapping
Supported on microphone unit interfaces
Display
2.8″ colour display with menu, six function keys
Recording
USB recording — high-fidelity WAV output
Video Tracking
Supported
Meeting Modes
5 modes — Open, Chair, FIFO, Limit, LIFO
Speaker Limit
1 to 12 units speaking simultaneously
Speaking Time Limit
0 to 99 minutes — timed close or automatic close; chairman exempt
Maximum Chairman Units
12
Languages
Chinese, Traditional Chinese, English
Real-Time Clock
Date and time display
Power Supply
AC 220V–240V at 50Hz–60Hz
Dimensions
485 mm × 430 mm × 90 mm
Weight
9 kg to 11 kg
Attribute / Feature
Specification Details
Brand
C-YARK
Model
CY-300A
Product Type
Wired digital conference system controller
Microphone Unit Capacity
Up to 200 units with expanded power supply
RJ45 Interfaces
4 × RJ45 — 20 units each, 80 units total
8-Core Interfaces
4 × 8-core — 30 units each, 120 units total
Hot Swapping
Supported on microphone unit interfaces
Display
2.8″ colour display with menu, six function keys
Recording
USB recording — high-fidelity WAV output
Video Tracking
Supported
Meeting Modes
5 modes — Open, Chair, FIFO, Limit, LIFO
Speaker Limit
1 to 12 units speaking simultaneously
Speaking Time Limit
0 to 99 minutes — timed close or automatic close; chairman exempt
Price on request. Complete pricing depends on the controller, microphone units, cabling, amplification, and seat count. WhatsApp: +880 1979-234342 for a quote.
It supports up to 200 units with an expanded power supply. Plan the quantity based on the number of seats.
It depends on the system. C-869 units usually do not, as they have built-in dual Hi-Fi speakers. Wired video-tracking and wireless systems may require separate amplification.
Yes. The CY-300A supports high-fidelity WAV recording to USB. Other C-YARK systems may use USB recording or an external recorder.

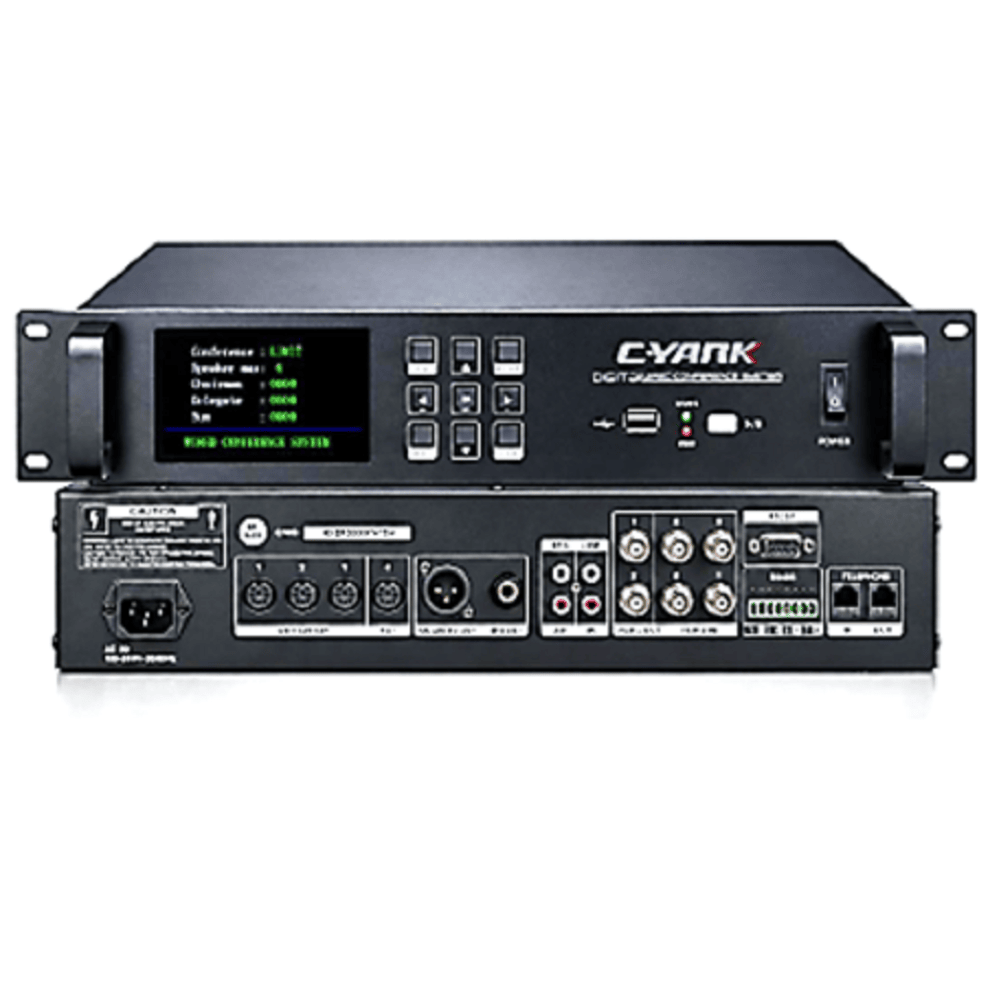

Yes, on the CY-8700 and CY-8710. Both include a built-in telephone coupler for remote participation.
