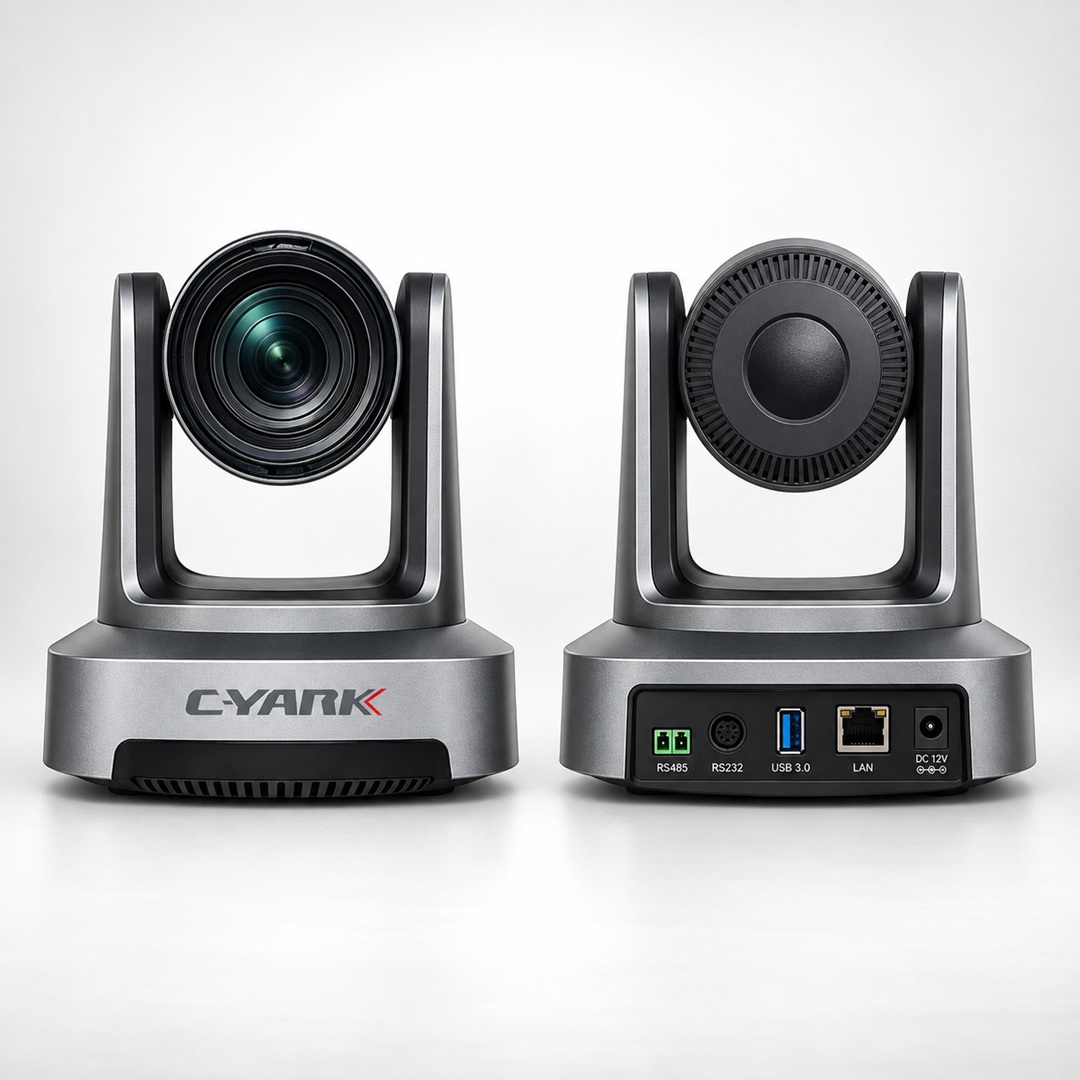

The C-YARK CY-UV20U-4K is a 4 K PTZ conference camera with 20× optical zoom and AI auto-tracking, supplied in Bangladesh by DigiMark Solution as an authorized C-YARK Distributor.
Key features
AI tracking and conference-system tracking are two different things — this does both. The camera has its own AI single-person and multi-person tracking, and it also accepts tracking commands from a C-YARK conference controller over RS-232 using VISCA. The conference-system route is the more reliable of the two in a meeting, because the controller knows which microphone is live rather than the camera guessing from movement.
20× optical zoom, not digital — f = 4.95–99 mm with 20× optical. At the far end of a long council chamber, optical zoom keeps the face sharp; digital zoom simply enlarges pixels. Digital 8× is available on top where needed.
USB, HDMI and RJ45 simultaneously — USB 3.0 for a laptop running Zoom or Teams, HDMI to a room display or recorder, RJ45 for network streaming. Most rooms end up needing at least two of these, and having all three avoids a capture device.
4K at 30fps in H.264, H.265 and MJPG over USB — Three codecs from the USB port means it works with almost any conferencing software without a transcoding step. YUY2 uncompressed at 1080p is available where latency matters more than bandwidth.
255 presets with VISCA and PELCO — Standard protocols mean it integrates with third-party control systems, not only C-YARK's. 255 presets cover even a large chamber seat by seat.
Works on Windows, macOS, Android and Linux — UVC-class operation across all four, which matters when the room is used by people bringing their own laptops.
Where it is used
Paired with any of the three conference systems for speaker tracking, recorded proceedings, hybrid meetings and live streaming.
Sizing a conference system
Three numbers decide the specification: seat count, room acoustics, and whether proceedings are recorded.
Seat count — one unit per seat plus one chairman unit. Count fixed positions, not typical attendance.
Room acoustics — a hard-surfaced room with glass and tile will echo regardless of microphone quality. Treatment does more for intelligibility per taka than any equipment upgrade.
Recording — if minutes may be challenged or transcribed, specify a controller with built-in recording and the higher-grade capsule. Retrofitting recording afterwards costs considerably more.
Why buy from DigiMark Solution
DigiMark Solution is the Authorized C-YARK Distributor for Bangladesh. Genuine units with manufacturer warranty, local service by our own team, and installation and commissioning by engineers who have specified conference systems for government chambers, courts, universities, and corporate boardrooms since 2006.
Price
Price on request. Conference systems are quoted as a complete room rather than per unit. Send us your seat count and room dimensions, and we quote the same day — WhatsApp +880 1979-234342.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized C-YARK distributor. Every C-YARK CY-UV20U-4K 4K PTZ Conference Camera is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
1× HDMI · 1× USB 3.0 · 1× RJ45 · 1× RS-232 out · 1× RS-485 · 1× DC in
Power Input
DC 12V / 2A
Dimensions
166 × 165 × 170 mm
Weight
1.6 kg
Complete Installation
What else you need for a working Kit
A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.
Price on request. Complete system pricing depends on the controller, conference units, cabling, amplification, and seat count. WhatsApp: +880 1979-234342 for a quote.
Yes. It supports AI single/multi-person tracking and can also receive tracking commands from a C-YARK conference controller via RS-232 VISCA.
Yes. The camera supports UVC over USB 3.0 and works with Windows, macOS, Android, and Linux without additional drivers. HDMI and RJ45 outputs are also available.
The camera provides 20× optical zoom, plus 8× digital zoom for additional close-up coverage.
Yes. We provide room assessment, camera positioning, installation, commissioning, and staff training.
