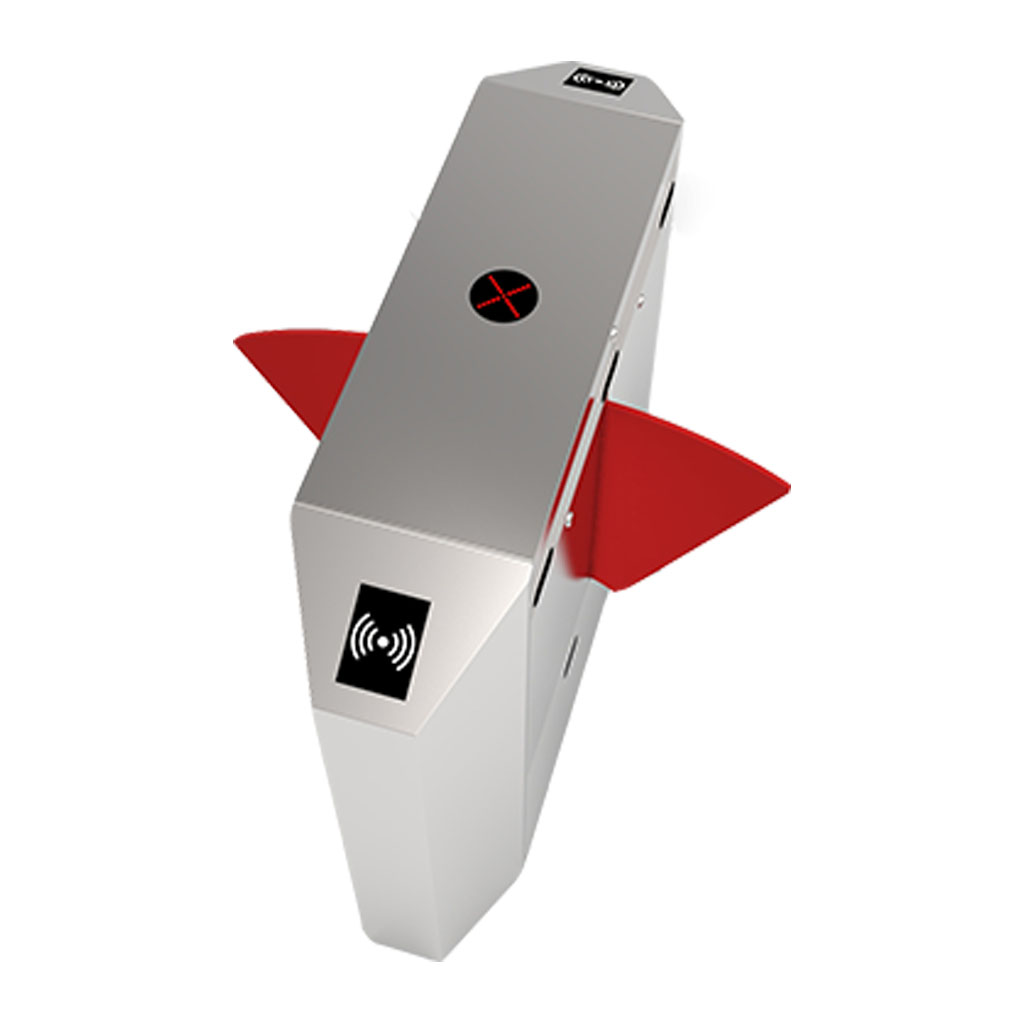

ZKTeco FBL2200 Pro Flap Barrier

What the FBL2200 Pro is: A Premium Dual-Lane Optical Turnstile with Retracting Glass Barriers

A flap barrier moves more people per minute than any other entrance type ZKTeco publishes figures for — 42 with RFID cards against a tripod's 30 — and the retracting flaps disappear into the pedestal when open, which is why they suit a lobby.

They are also four times the weight of a tripod and need considerably more floor space. The footprint on the FBL2000 series is 1200 by 1150 millimetres per lane.

Key features

• 42 per minute with RFID — the highest in the ZKTeco pedestrian range — And 35 with fingerprint, 23 with vein, 11 with face recognition. That last figure is the one that ruins projects: a lane rated at 42 behind a face terminal runs at 11.
• Barriers retract upward, and the capacitor board makes that automatic — On power loss, the flaps pull back into the pedestal. Order the optional capacitor board. Without it, a power cut can leave the lane shut with people on the secure side.
• 1200 by 1150 millimetres of floor per lane — The published footprint on the FBL2000 series, at 119 kg net. Worth checking against a lobby drawing before the order, because retrofitting a flap barrier into a space designed for a tripod does not work.
• LCD on the control board — Status and fault codes are readable at the unit rather than requiring a laptop, which is the difference between a ten-minute service call and an afternoon.

Sizing the entrance

1. Count peak-hour arrivals. Not daily headcount. A factory of 3,000 arrives across twenty minutes.
2. Check the credential, not just the lane. The reader is almost always the bottleneck.
3. Include one wide lane. Wheelchairs, trolleys, and beds do not pass a standard aperture.

Why buy from DigiMark Solution

Authorized ZKTeco Distributor for Bangladesh since 2006. Genuine units with manufacturer warranty, serial-verified through ZKTeco's anti-counterfeiting system on arrival, installed and commissioned by our own engineers, and serviced from seven branches. We size the lane count before quoting rather than after installing.

Price

Price on request, quoted per lane. Send your entrance width and peak-hour footfall — WhatsApp +880 1979-234342.
