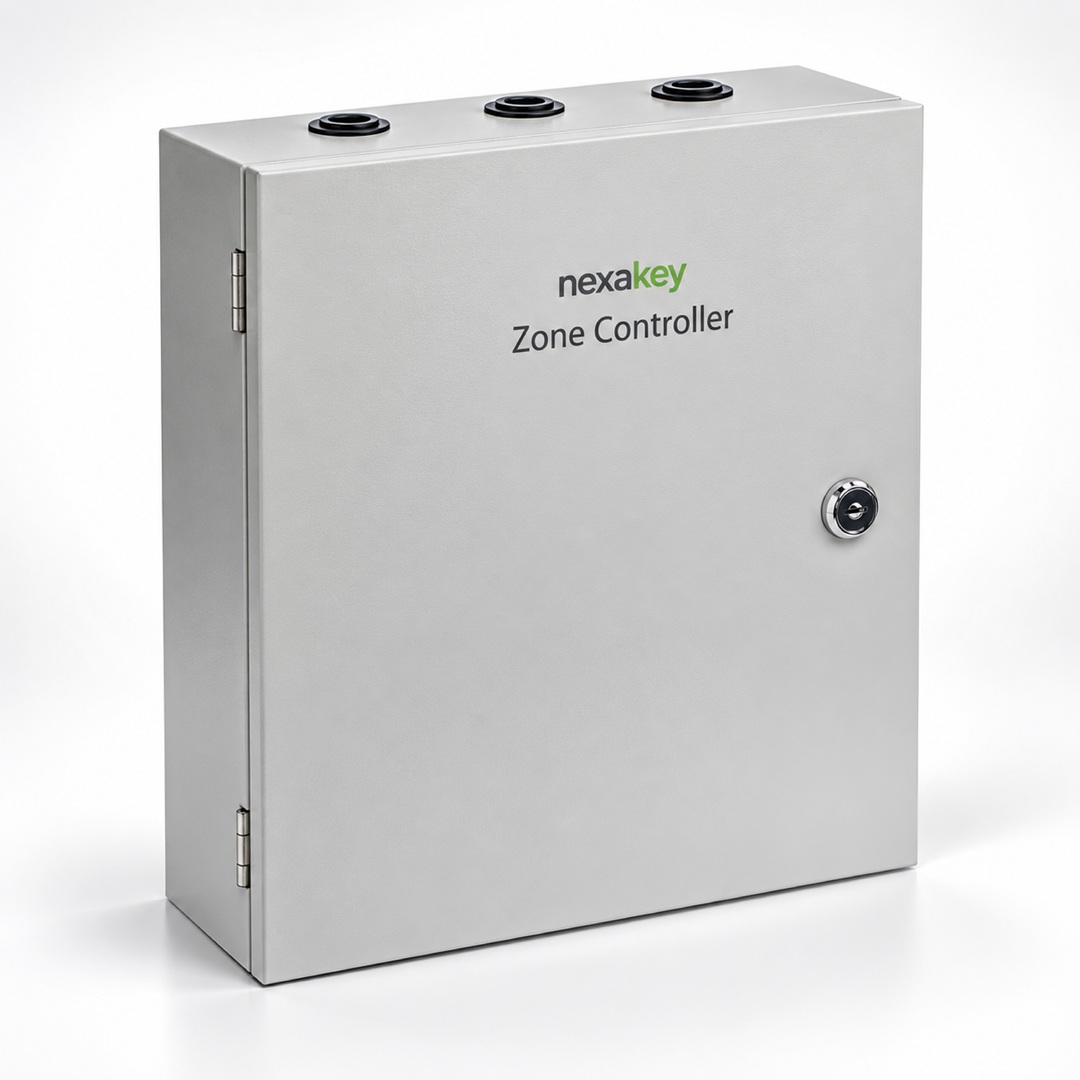

What Is the Nexakey NX-ZC510 Parking Guidance Zone Controller?
The Nexakey NX-ZC510 is a zone controller for the NEXA PARK guidance system. It connects up to 50 ultrasonic bay sensors, arranged as 2 channels of 25, and drives the guidance displays in its zone. It uses hybrid RS485 + CAN communication and operates from −30 °C to +75 °C.
- Up to 50 sensors (2 channels × 25)
- Drives guidance displays in the zone
- Hybrid RS485 + CAN communication
- Operates from −30 °C to +75 °C
How Does the NX-ZC510 Zone Controller Work?
Each ultrasonic sensor above a bay measures the distance to whatever is below it and lights its own indicator green or red. Up to 25 sensors daisy-chain on a network cable into the zone controller, which takes up to 50. Up to 25 zone controllers then report to a node controller over CAN at up to 1000 m. The central controller updates the aisle displays and entrance board in real time.
Where Does the Zone Controller Sit in the Guidance System?
It sits in the middle of the architecture. Sensors report to the zone controller, zone controllers report to node controllers, and node controllers report to the central controller. The same architecture scales from one floor to 31,250 bays.
Why Choose Ultrasonic Guidance Instead of Cameras?
Camera-based guidance depends on reading number plates, and these systems do not reliably read Bangla-script plates. Ultrasonic detection does not read plates at all. Occupancy and guidance therefore work correctly on Bangladeshi plates, whatever their script or condition.
Why Plan the Cable Layout Before Choosing Controllers?
The controller count follows the cable layout. Sensors daisy-chain up to 25 per run, a zone controller takes up to 50 sensors, and a node controller takes up to 25 zones. Daisy-chain wiring keeps cable cost and installation time down, but we need your floor plan before any quotation is meaningful.
Does the NX-ZC510 Work in Bangladeshi Basements?
Yes. It operates from −30 °C to +75 °C, comfortably inside a Bangladeshi basement. In a full basement, drivers circling for a space are the real congestion. A free-space count at the entrance and arrows at each junction remove most of that circulation.
Where Can You Use the NX-ZC510 Zone Controller?
Use it wherever a car park needs guidance across several zones:
- Shopping mall basements: removes the circling that causes congestion
- Hospital car parks: helps stressed visitors find a space quickly
- Airport and transport car parks: guides drivers across large floor plates
- Commercial office towers: manages tenant and visitor floors with different occupancy
- Mixed-use developments: serves several levels with different user groups and peak times
What Is the NX-ZC510 Price in Bangladesh?
DigiMark Solution quotes the NX-ZC510 as a Project Solution item. We design the system around your floor plan, because the component count follows your layout. Send your floor plan, and we will prepare a quotation.
Why Buy the NX-ZC510 From DigiMark Solution?
DigiMark Solution has supplied security and automation hardware in Bangladesh since 2006 and is a member of BCS and DCCI.
- Authorized supply: you get genuine firmware, correct accessories, and a locally honoured warranty
- Local service: our Dhaka and Chattogram branches provide spares, support, and on-site commissioning
- Survey before quote: we survey your site free of charge and confirm the design before quoting
- One accountable supplier: we integrate barriers, terminals, guidance, and software as one system
