Security Surveillance Hikvision DS-7104HQHI-K1 4-ch 1080p Mini 1U H.265 DVR

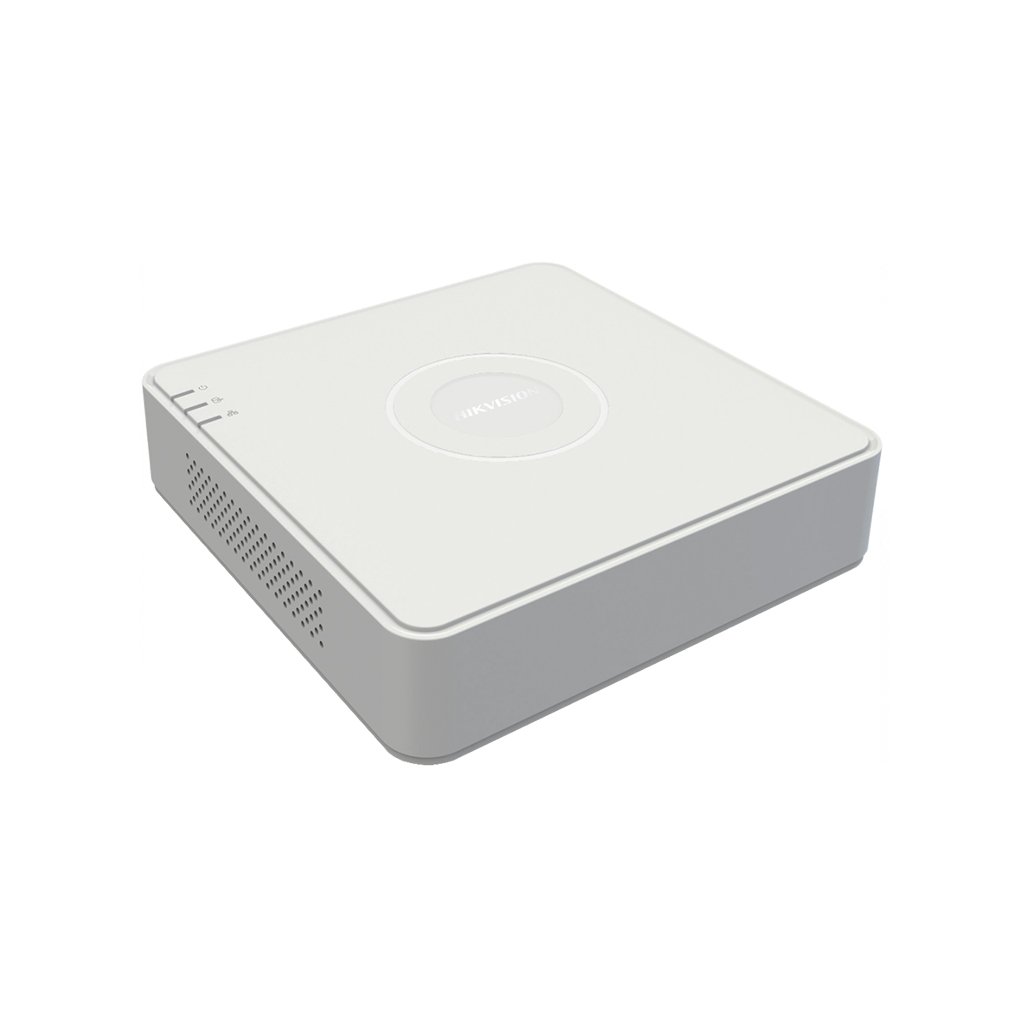

Hikvision DS-7104HQHI-K1 4-ch 1080p Mini 1U H.265 DVR

Price	0 ৳
Status	In stock
Product Code	PR00301
Brand	HIKVISION
Model	DS-7104HQHI-K1

Features

4 channels and 1 HDD mini size DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Hotline: 01979234344 | Corporate: 01979234316

Download Brochure

Share On :

Description

Last Modified On: 17-08-2023

Hikvision DS-7104HQHI-K1 4-ch 1080p Mini 1U H.265 DVR

Compression and Recording

H.265 Pro+ can improve encoding efficiency and reduce the data storage cost
Full channel recording at up to 4 MP lite resolution

Storage and Playback

Smart search for efficient playback
Support the 3rd party cloud storage

Network & Ethernet Access

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable

Best 4 CH DVR

Hikvision DS-7204HGHI-F1
Hikvision DS-7104HQHI-K1
Hikvision DS-7204HQHI-K1

Digi-Mark Solution authorized dealer of Hikvision in Bangladesh.You can buy the Hikvision DS-7104HQHI-K1 at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

General Informations

Technical Specification
Model																		DS-7104HQHI-K1
Recording
Video compression																		H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution																		When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Video bit rate																		32 Kbps to 6 Mbps
Dual stream																		Support
Stream type																		Video, Video & Audio
Audio compression																		G.711u
Audio bit rate																		64 Kbps
Video and Audio
IP video input																		Up to 6 MP resolution
Analog video input																		BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input																		4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input																		4 MP, 1080p25, 1080p30, 720p25, 720p30
HDMI/VGA output																		1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS input																		Support
General
Power supply																		12 VDC, 1.5 A
Consumption (without HDD)																		≤ 8 W
Working temperature																		-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity																		10% to 90%
Dimensions (W × D × H)																		200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight (without HDD)																		≤ 1 kg (2.2 lb)
