Advanced Elevator

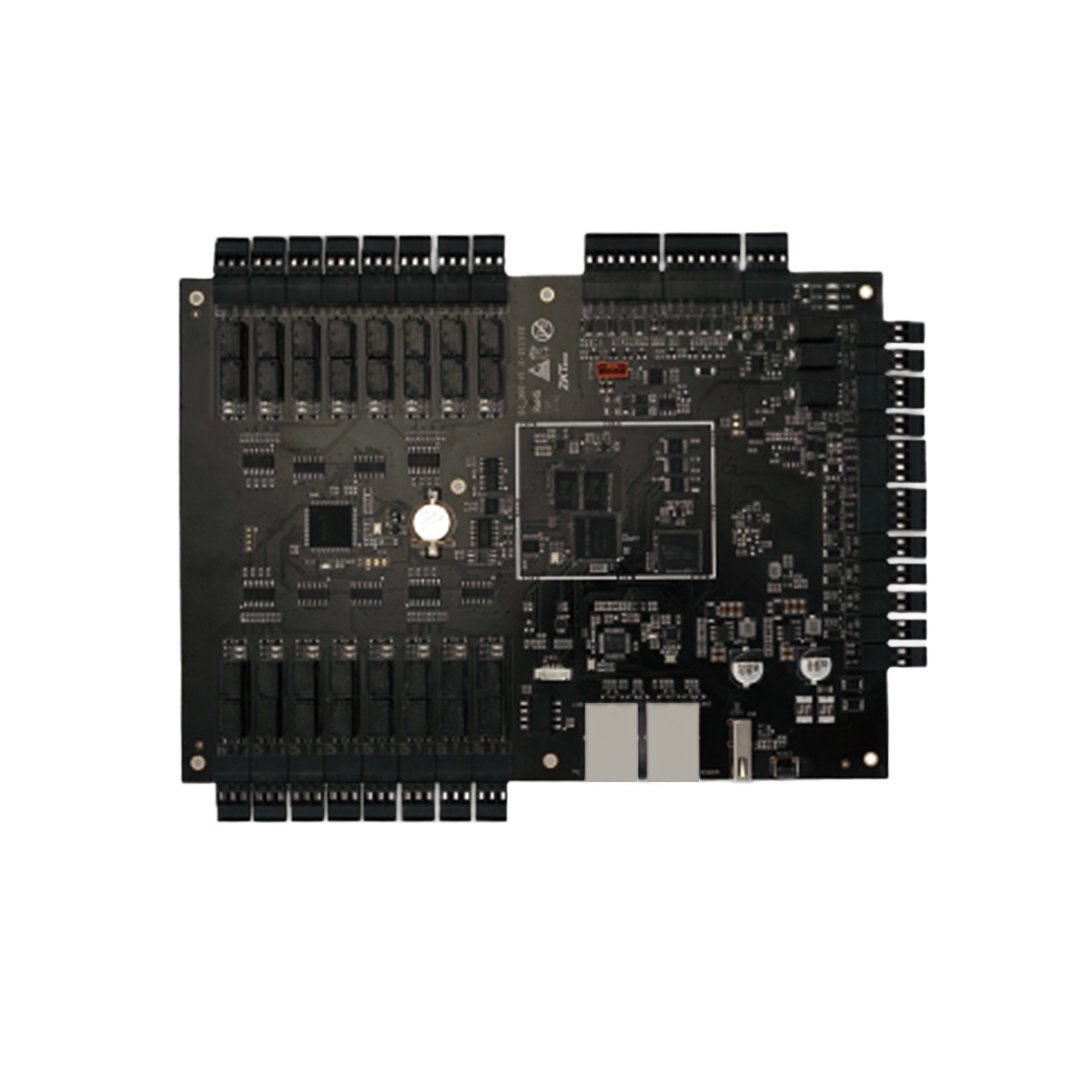

Access Control Solution The ZKTeco EC16 is the second-generation elevator control panel designed to provide secure, scalable, and versatile floor access management for multi-story buildings. Paired with DEX16 expansion boards, it offers robust control over elevator usage, restricting access based on user credentials to enhance building security.
Key Features
Scalable Floor Control: Controls up to 16 floors natively. Expandable with up to 7 DEX16 boards for a total of 128 floors.
Multi-Method Authentication: Supports fingerprint and RFID card verification via RS485. Integrates with ZKBio CVSecurity platform for dynamic QR codes, facial recognition, and advanced biometric access.
Secure Access Management: Restricts floor buttons based on authorized users, time zones, and permissions. Supports direct elevator dispatch to authorized floors.
Flexible Integration: Compatible with Wiegand and RS485 readers (up to 8 RS485 + 2 Wiegand readers per panel). Supports ZKTeco QR500/600 series readers.
Reliable Communication: RS485 for expansion boards and readers; TCP/IP for software integration.
Additional Functions: Passage mode for unrestricted access during business hours, anti-passback, and event logging.
Benefits
Enhanced Security: Prevents unauthorized access to sensitive floors in offices, residential buildings, hotels, and hospitals.
Cost-Effective Scalability: Start with basic setup and expand as needed without replacing the core panel.
User Convenience: Seamless integration with modern access methods like mobile QR codes and touchless facial recognition.
Easy Management: Integrates with ZKBio CVSecurity software for centralized control, reporting, and real-time monitoring.
FAQ
What is the maximum number of floors the EC16 can control?
The EC16 panel natively controls up to 16 floors. By adding up to 7 DEX16 expansion boards via RS485 connection, the system expands to a maximum of 128 floors.
How many readers can be connected to the EC16?
The EC16 supports up to 8 RS485 readers and 2 Wiegand readers simultaneously, allowing flexible installation of fingerprint, RFID, or QR code readers.
What authentication methods does the EC16 support?
It supports fingerprint and RFID card verification directly via RS485. When integrated with ZKBio CVSecurity software, it also enables dynamic QR codes, facial recognition, and advanced biometric options.
What software is used to manage the EC16?
The EC16 integrates with ZKBio CVSecurity for centralized management, user enrollment, time zone settings, access permissions, real-time monitoring, and reporting.
What are the power requirements for the EC16 and DEX16?
Both operate on DC 12V power supply. Ensure stable power and check LED indicators during installation for proper functioning.
