How do the ZKTeco KR600 series card readers integrate with security control panels?
The ZKTeco KR600 series operates as an external Wiegand slave card reader, capturing RFID credentials and transmitting raw identification data through 26-bit or 34-bit Wiegand protocols to a central access control panel like the ZKTeco C3 or InBio series. They require a master controller to process database authentication and execute door lock triggers.
Where it is used in Bangladesh
Corporate building entry points — Secure lobby and office floor door access.
Industrial and factory gates — Weatherproof outdoor deployment for employee attendance tracking.
Residential apartment complexes — Main gate and parking barrier vehicle access.
Educational institutions — Controlled campus zone and laboratory entries.
What else you need for a complete setup
Because these units function as slave readers, a complete installation requires a master access control panel (such as a ZKTeco C3-200 or InBio-260), a matched electronic door lock (EM lock or drop bolt), a 12V regulated power supply with battery backup, an exit button, and structured cabling.
Price in Bangladesh
Pricing varies based on the specific card frequency variant (ID vs. Mifare) and project scope. Contact via WhatsApp at +880 1979-234342 or tap Get Best Price for a same-day corporate quotation.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized ZKTeco distributor. Every ZKTeco KR600 Series Wiegand Card Readers is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.
Pricing varies based on the card frequency model (EM 125kHz vs. Mifare 13.56MHz) and order volume. For dealer rates, bulk orders, or project pricing, contact DigiMark Solution at +880 1979-234342 (Call/WhatsApp) for a same-day quote.

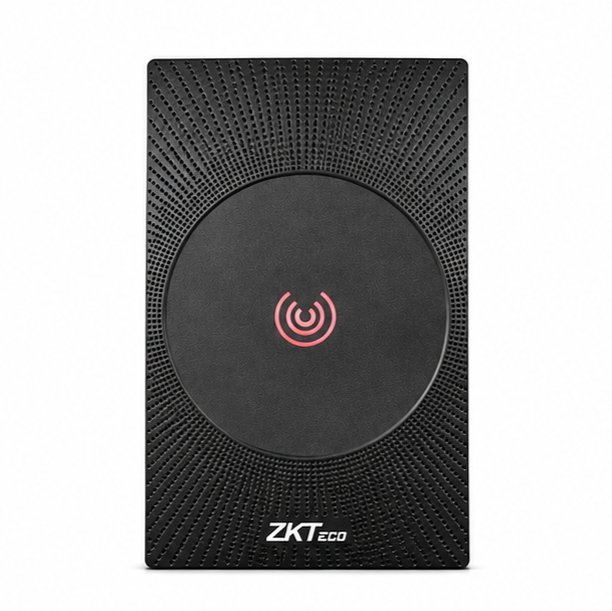

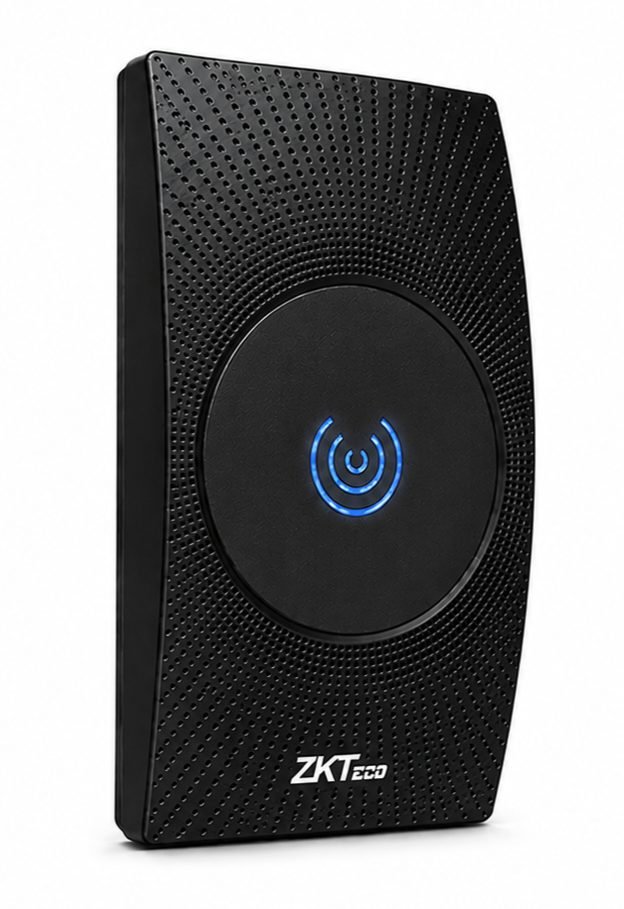

The ZKTeco KR600 is an external RFID/IC card reader designed for access control system extension. It reads proximity cards (up to 10cm read range) or IC/Mifare cards (up to 5cm read range) in under 300ms.
It features standard Wiegand output (26-bit for KR600-E / 34-bit for KR600-M), making it compatible with all ZKTeco standalone controllers (like the SenseFace or InBio series) and third-party access control panels.
Yes. The KR600 has an IP65 waterproof rating with a solid epoxy-potted design, making it durable against rain, dust, and harsh environmental conditions for both indoor and outdoor use.
Since the KR600 is a reader unit, a complete door installation requires a main access controller (or master terminal), a power supply (DC 6–14V), an EM magnetic lock, suitable brackets (Z/L or U), an exit button, and Wiegand wiring.
Yes. DigiMark Solution is an Authorized Distributor of ZKTeco in Bangladesh. Every unit comes with an official manufacturer warranty, genuine firmware, technical support, and warranty service across seven branch service desks.
