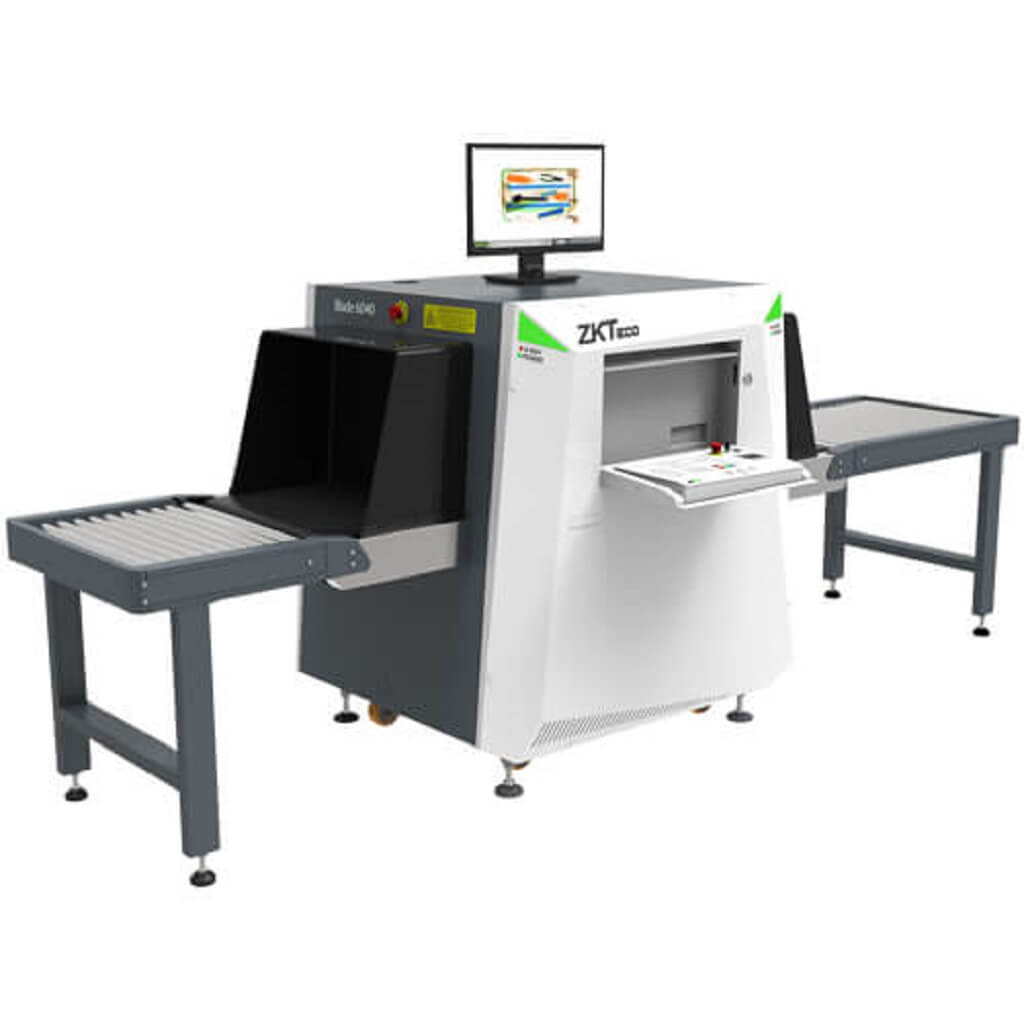

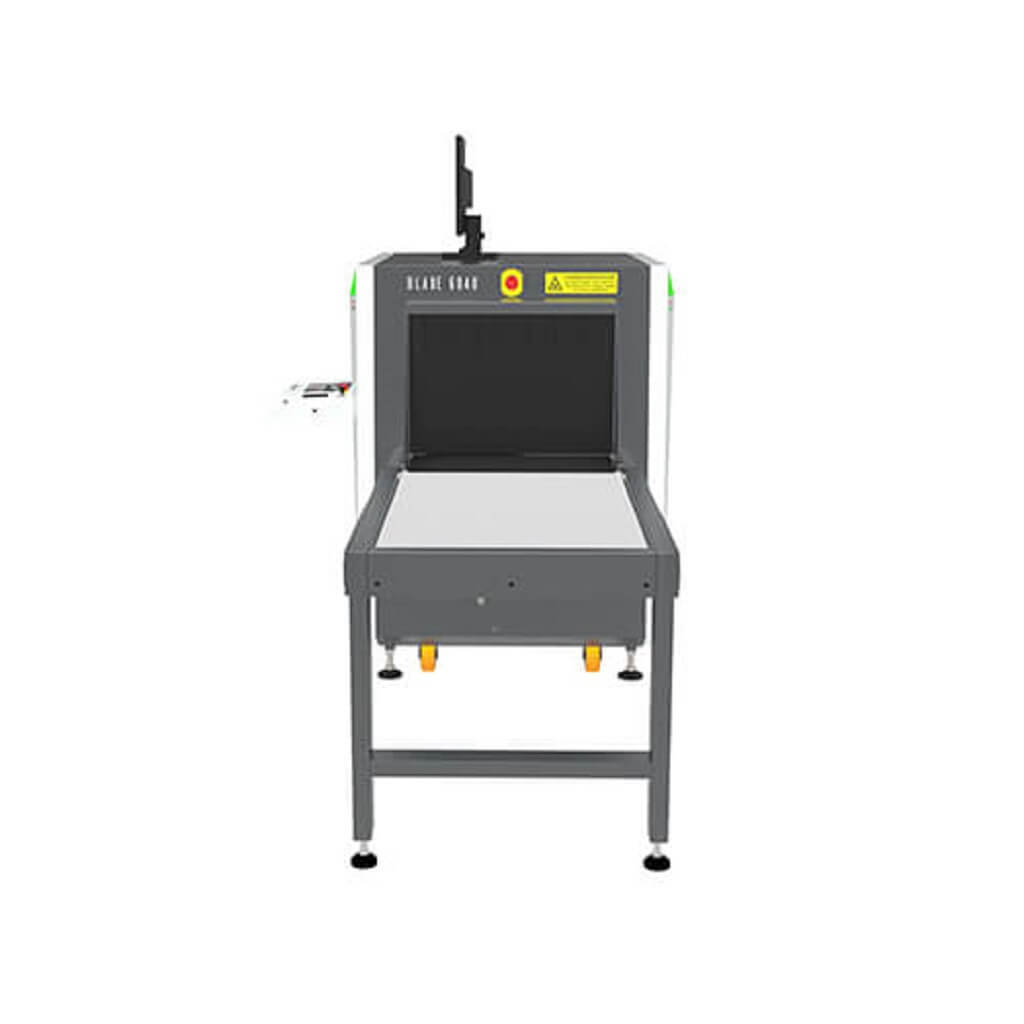

BLADE6040 is an X-ray baggage inspection system with a tunnel size of 610*420mm which provides an effective inspection on mail, hand-held baggage, luggage, and other items. It helps to identify suspicious items such as weapons, liquids, explosives, drugs, knives, fire guns, bombs, toxic substances, flammable substances, ammunition and other dangerous objects which may lead to potential safety hazard by atomic number identification.High image quality in combination with automatic identification of suspicious objects allows the operator to quickly and effectively evaluate any luggage cont.
Digi-Mark Solution authorized distributor of ZKTeco X-Ray Baggage Scanner in Bangladesh. You can buy the ZKTeco BLADE6040 X-Ray Baggage Scanner at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.
DigiMark Solution has been Bangladesh's authorized ZKTeco distributor. Every ZKTeco BLADE6040 X-Ray Baggage Scanner is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
| SPECIFICATION | BLADE6040 |
|---|---|
| Tunnel Dimensions(W*H) | 610*420 mm |
| Conveyor Speed | 0.20 m/sec. ~ 0.40 m/sec |
| Load on Conveyer | max. 200 kg (evenly distributed) |
| Space Definition | Horizontal Φ1.0mm / Vertica lΦ2.0mm |
| Steel Penetration | 38mm guaranteed; 40mm typical |
| Wire Resolution | 38AWG guaranteed; 40AWG typical |
| Dual-energy Detector | Yes |
| Number of Colors in X-ray Image | 3 |
| Dimensions(L*W*H) | 1990*970*1320 mm |
| Package Dimensions(L*W*H) | 2100*1200*1600 mm |
| Package Weight | 750 kg |
| Film Safety | ASA/ISO1600 standard of film safety |
| Single Inspection Dosage Rate | ≤1.0μGy |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5-95%, non-condensing |
| Power Supply |
230 VAC +/- 10% / 60/50 Hz (EU) 110 VAC +/- 10% / 60/50 Hz (US) |
| Power Consumption | 700W |
| Sound Pressure | <51.8dB (A) |
| Tube Current | 0.5 - 0.1 mA (adjustable) |
| Anode Voltage | 150 - 170 kV (adjustable) |
| Generator Cool | Seal oil cooling / 100% |
| Processor | Intel® Braswell SoC N3160 (QC-2.24GHz) |
| Monitor | 21” LED color |
| Memory | Onboard 4 GB RAM |
| Hard Drive | 1TB |
| USB Port | 4 Ports |
| Attribute / Feature | Specification Details |
|---|---|
| Tunnel Dimensions(W*H) | 610*420 mm |
| Conveyor Speed | 0.20 m/sec. ~ 0.40 m/sec |
| Load on Conveyer | max. 200 kg (evenly distributed) |
| Space Definition | Horizontal Φ1.0mm / Vertica lΦ2.0mm |
| Steel Penetration | 38mm guaranteed; 40mm typical |
| Wire Resolution | 38AWG guaranteed; 40AWG typical |
| Dual-energy Detector | Yes |
| Number of Colors in X-ray Image | 3 |
| Dimensions(L*W*H) | 1990*970*1320 mm |
| Package Dimensions(L*W*H) | 2100*1200*1600 mm |
| Package Weight | 750 kg |
| Film Safety | ASA/ISO1600 standard of film safety |
| Single Inspection Dosage Rate | ≤1.0μGy |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5-95%, non-condensing |
| Power Supply | 230 VAC +/- 10% / 60/50 Hz (EU) 110 VAC +/- 10% / 60/50 Hz (US) |
| Power Consumption | 700W |
| Sound Pressure | <51.8dB (A) |
| Tube Current | 0.5 - 0.1 mA (adjustable) |
| Anode Voltage | 150 - 170 kV (adjustable) |
| Generator Cool | Seal oil cooling / 100% |
| Processor | Intel® Braswell SoC N3160 (QC-2.24GHz) |
| Monitor | 21” LED color |
| Memory | Onboard 4 GB RAM |
| Hard Drive | 1TB |
| USB Port | 4 Ports |
