PL10R

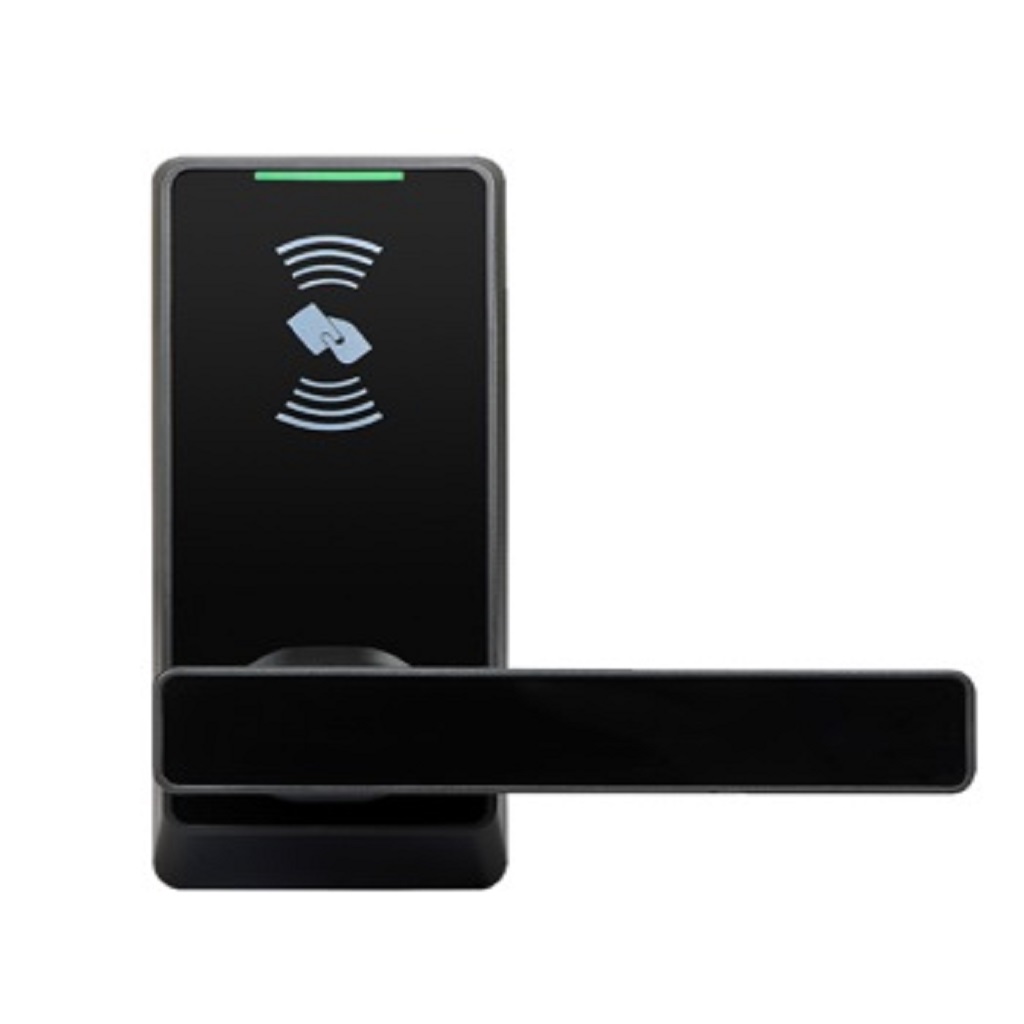

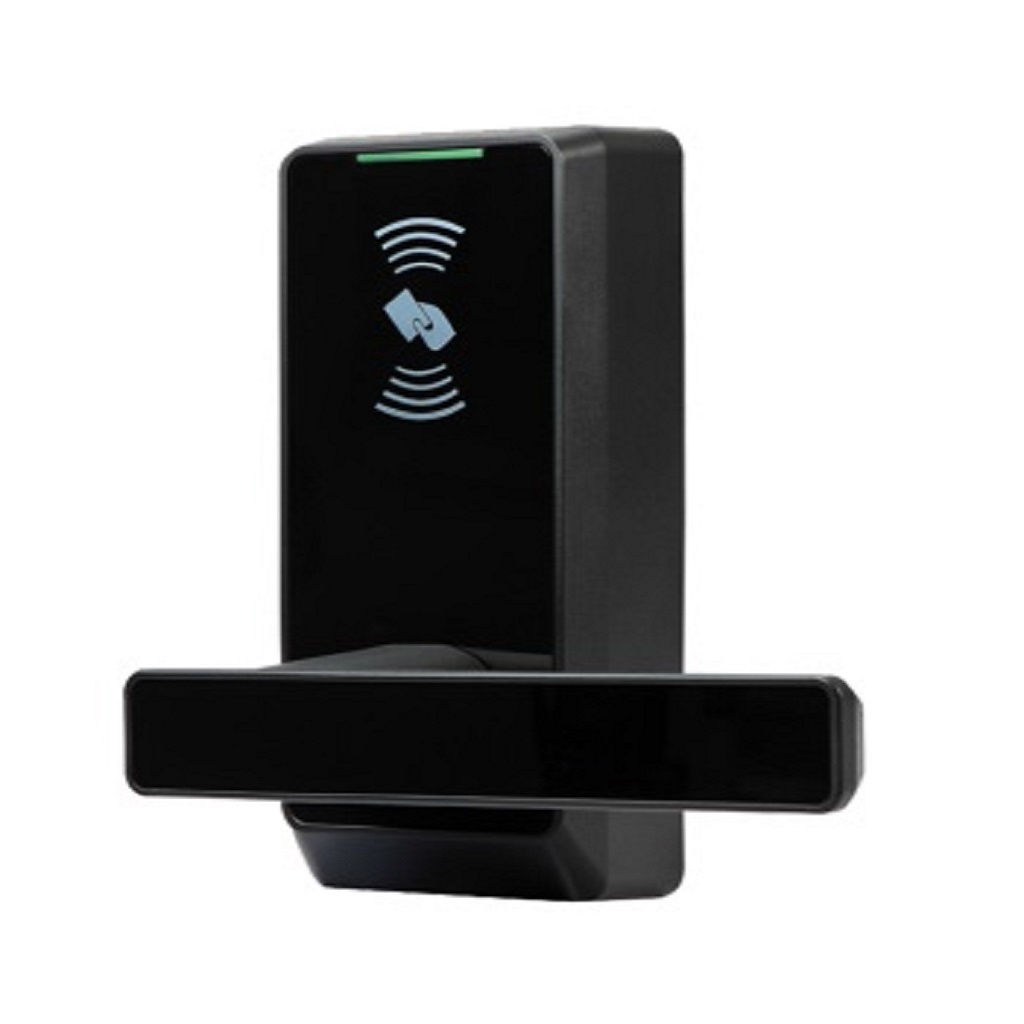

PL10R is a smart lock with advanced RFID technology. It is designed for DIY, which enables you to replace a knob lock with it by yourself easily and quickly.
Features
• Advanced 13.56mhz Mifare card technology
• Rugged, sleek and compact design
• American standard single latch for easy
replacement and installation
• Independent clutch motor design under patent protection
• Idle handle design to prevent forcible entry
• Registration data are stored even if there is power loss
• Handle, latch and strike are reversible for
all door opening directions
• Emergency key override (concealed)
• LED indicator and inbuilt buzzer
• External terminals to draw back-up
power from a 9V battery
• Low battery warning
• Normal Open mode
• Easy to program and easy to use
• Easy to install - no wiring is required
• 3 user groups
- Admin, Normal User and Temporary User
• Backset is 60 mm or 70mm (adjustable)
Card | ID Card. Advanced 13.56mhz Mifare card technology |
Material |
Rugged ABS
|
Backset |
60mm or 70mm (Adjustable)- American Single Latch;
62 mm - German Standard Mortise |
User Capacity | Admin -10; Normal User - 60; Temporary User - 20 |
Power Supply | 4 ×AA Alkaline Battery |
Operating Temperature | 0°C - 55°C |
Battery Life | Over 6000 Times (Approx1 year) |
Backup Unlocking Way | Mechanical Key & 9V Battery |
Door Thickness | 30-53 mm (Standard) |
Dimensions (W*L*D ) |
Front - 69*155*35 mm
Back - 69*155*25 mm |
