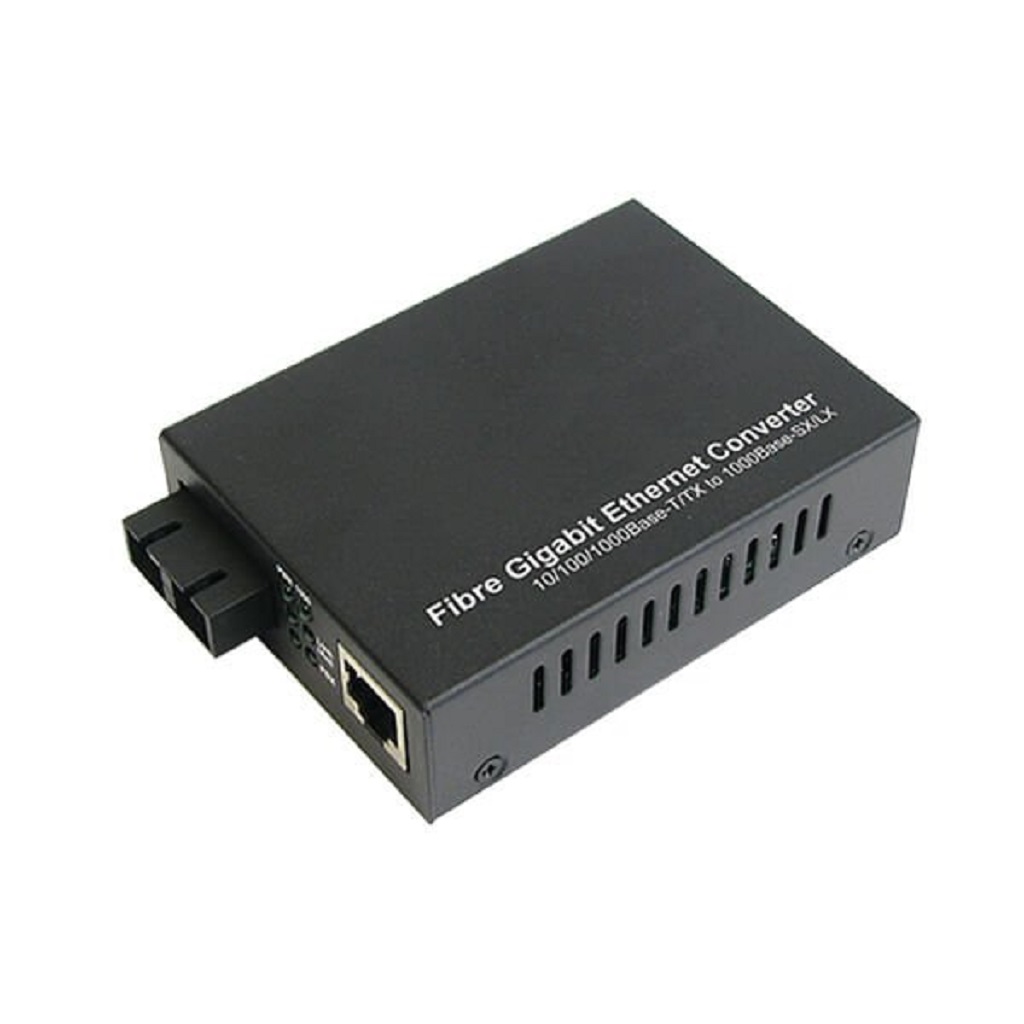

Networking Components Gigabit Media Converter 10/100/1000 Mbps

Gigabit Media Converter 10/100/1000 Mbps

Price	0 ৳
Status	In stock
Product Code	PR00572
Brand	B&TON
Model	Gigabit Media Converter 10/100/1000 Mbps

Features

Automatic identification of MDI/MDI-X cross line
10/100/1000Mbps port with full/half duplex auto-negotiation
Back pressure flow control for full duplex
Converter mode with auto-change-forward (Switch) function

Hotline: 01979234344 | Corporate: 01979234316

No Brochure

Share On :

Description

Last Modified On: 30-12-2021

Gigabit Media Converter 10/100/1000 Mbps

The 10/100/1000 Media Converter provides an intelligent solution for long distance connections between legacy 10BaseT and 100BaseTX networks and the newer 1000Base Gigabit Ethernet networks. The built-in 10/100/1000 converter enables the fiber cable connection to operate at 1000 Mbps connected to either a 10BaseT, 100BaseTX, or a 1000BaseT network, while remaining completely 1000BaseSX standard-compliant for the fiber optic connection. The fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub.Each Media Converter provides a 10/100/1000BaseT/TX auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. The Built-in switch does the network segmentation to provide the maximum fiber distance. Auto-MDIX capability on the twisted-pair port allows convenient connection.

Digi-Mark Solution authorized dealer of TP-LINK in Bangladesh. You can buy the Gigabit Media Converter 10/100/1000 Mbps at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

General Informations

Description
Complies with:	IEEE802.3 10 Base-T standardIEEE 802.3u 100Base-TX/FX standardIEEE 802.3ab 1000BaseTIEEE 802.3z 1000BaseSX/LX
Connector:	STP RJ-45 connector, optical SC, FC,ST connector
Data Buffer:	2 Megabyte
Wavelength (typical):	Multimode: 850nm (≤550m), 1300nm (≤2Km)Single mode: 1310nm up to 20Km, 1550nm up to 80Km
Operation mode:	Full duplex mode or half duplex mode
Temperature:	0 – 50°C (Operating); -45 – 80°C (Storage)
Humidity:	5%-80% non-condensing (Operating); 10%-90% (Storage)
Power Supply:	External 1A,+5VDCInternal 110~260VAC
Dimensions:	External power version 95mm x70mm x 26mm (LxWxH)Internal power version 140mm x110mm x 30mm (LxWxH)
Power Consumption:	2.5W
Compliance:	RoHS Materials & REACHFCC Part 15 Class BCE EN55022: 1998+A1: 2000+A2: 2003EN61000-3-2: 2000+A2: 2005EN61000-3-3: 1995+A1: 2001EN55024: 1998+A1: 2001+A2: 2003
MTBF:	65,000 h (25°C)
