IP Phone & PBX Fanvil X210i Visualization Paging Console Phone

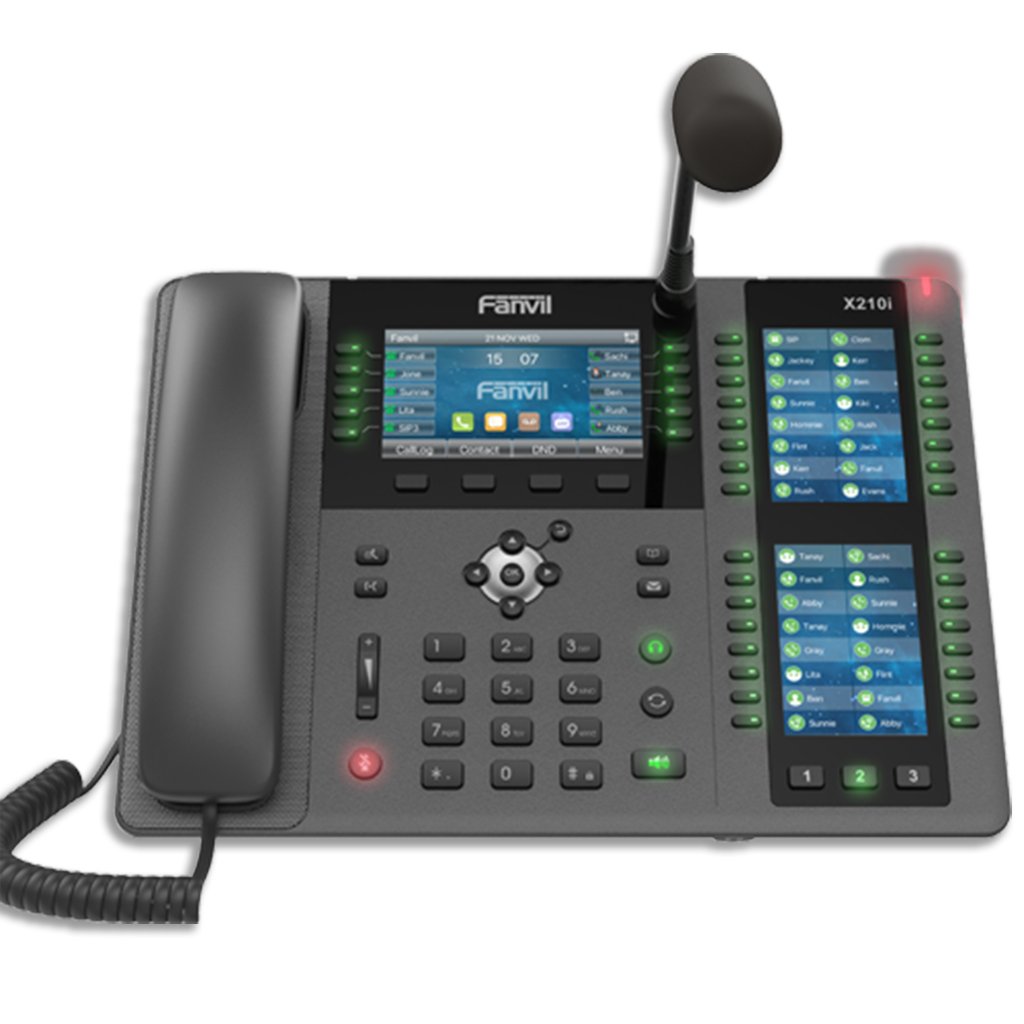

Fanvil X210i Visualization Paging Console Phone
Fanvil X210i Visualization Paging Console PhoneFanvil X210i Visualization Paging Console PhoneFanvil X210i Visualization Paging Console PhoneFanvil X210i Visualization Paging Console PhoneFanvil X210i Visualization Paging Console Phone

Fanvil X210i Visualization Paging Console Phone

not inserted
Price 0
Status Pre Order
Product Code PR00263
Brand Fanvil
Model X210i

    • 20 SIP Lines, 3-Way Conference, Hotspot
    • 4.3” Main Color Display
    • Dual Gigabit Ports, Integrated PoE

Hotline: 01979234344 | Corporate: 01979234316
Download Brochure
Share On :
Last Modified On: 24-05-2023
Fanvil X210i Visualization Paging Console Phone

X210i is a visualization paging console phone for industry customer. It is equipped with a gooseneck microphone and supports HD hands-free calling. With intelligent programmable DSS buttons, you can set up a one-click call function to improve communication efficiency. It is compatible with the standard SIP protocol and can be used as a monitoring center or host for office manager with functions such as make calls for external & internal phones, two-way intercom, monitoring, and broadcasting. The X210i improves the management efficiency and emergency response capabilities.

Good sound pickup effect

Professional directional gooseneck microphone presents sound with good reproduction, high definition and low noise.

HD audio for speakerphone and handset

Newly-added support for Opus and a larger audio cavity bring abundant, strong low frequency effect. The speakerphone adopts full net coverage delivering crystal clear, life-like voice communication.

Unified Designed With Two Side Displays For Up To 106 DSS Keys

  • Convenient operation on X210i with two 3.5" side DSS Key displays, no need to add external extension modules.
  • With three page-switch buttons, the side displays allow to set up to 96 DSS keys (32 physical), and plus 10 DSS keys on the main display, up to 106 DSS keys are available in total for BLF, speed dial, group broadcasting function etc.

Video Surveillance

Equipped with video codec H.264, X210i enables to be integrated with multiple IP cameras. With simply a press on the DSS keys, you can view the video of the selected camera in real time.

Remote control of Fanvil SIP video door phone and barrier gate

  • X210i enables to be integrated with Fanvil SIP video door phone, so that you can have a two-way talk with visitors and unlock the door from your X210i IP phone if you deem them worthy.
  • When the license plate recognition fails to open the barrier gate, the driver can contact the management center through the intercom terminal installed at the entrance and exit of the parking lot, and the management center remotely help the driver to open the barrier gate through X210i.

Broadcast commands are issued instantly

Each broadcast group is displayed on the DSS screen, you can press the DSS keys to select the broadcast group,and use the gooseneck microphone to make a "one-on-one" or "one-to-many" broadcast calls for emergency notifications, suitable for places where coordination is needed for work relationships.

Rich Extension Function Door Phone Integration

X210i offers a variety of device connections including Wi-Fi (via Wi-Fi dongle), integrated Bluetooth, EHS headset, USB port for charging smartphone or other devices. Two Gigabit ports allow you to connect your desktop computer or laptop on the phone – no need for extra cabling.

Features Overview

  • 20 SIP lines, 3-way conference
  • HD audio on speakerphone and handset
  • Movable type Directional External Gooseneck Microphone
  • 4.3" main color display
  • 2×3.5" side color displays for DSS keys
  • Up to 106 DSS keys (42 tri-colored physical keys)
  • Dual Gigabit ports, integrated PoE
  • Built-in Bluetooth
  • Wi-Fi connectivity (via Wi-Fi dongle)
  • Video codec H.264 support for receiving video calls
  • Support EHS headset
  • Stand with 2 adjustable angles of 40 and 50 degrees
  • Compatible with major platforms: 3CX, Asterisk, Broadsoft, Metaswitch, Avaya etc.

Digi-Mark Solution authorized dealer of Fanvil in Bangladesh. You can buy the Fanvil X210i Visualization Paging Console Phone  at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.


  • 20 SIP Lines
  • HD Voice
  • Support receiving Video call
  • POE Enabled
  • 3 LCDs (Main + DSS)
  • Handset / Hands-free / Headset mode
  • Intelligent DSS Keys
  • Optional External Power Supply

Phone Features

  • Local Phonebook (2000 entries)
  • Remote Phonebook (XML/LDAP, 2000 entries)
  • Call logs (In/out/missed, 1000 entries)
  • Black/White List Call Filtering
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Bluetooth 2.1: Support Bluetooth headset
  • Support Wi-Fi Dongle
  • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Flash Drive or Server Recording )
  • Action URL / Active URI
  • uaCSTA

Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (On server)
  • 3-way Conference
  • Hot Line
  • Hot desking


  • Video codec: H.264
  • Video call resolution: QCIF / CIF / VGA


  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
  • Wideband Codec: G.722, AMR-WB, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO


  • Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode:IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS


  • SIP2.0 over UDP/TCP/TLS
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • TR-069

Deployment & Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • Main LCD x1: 4.3 inch (480x272) color-screen LCD
  • DSS Key-mapping LCD x2: 3.5 inch (320x480) color-screen LCD
  • Keypad: 77 keys, including
    • 4 Soft-keys
    • 6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial)
    • 4 Navigation keys
    • 1 OK key
    • 1 Return key
    • 12 Standard Phone Digits keys
    • 3 Volume Control keys, Up/Down/Mute(Microphone)
    • 1 Hands-free key
    • 42 DSS Keys with tri-color LED
    • 3 Page-Switch (PS) key
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Gooseneck Microphone x1
    • Directional microphone
    • Frequency response: 20Hz~20KHz
    • SNR:  “60 dB.1kHz at 1 Pa
  • Back Rack x1
  • Gooseneck MIC Port x1: Gooseneck Microphone x1
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
  • DC Power Input: 5V/2A
  • Power Consumption (PoE): 2.6~ 9W
  • Power Consumption (Adapter): 2.4~8W
  • Working Temperature: 0~45?
  • Working Humidity: 10~95%
  • Installation: Desktop Stand
  • Color: Dark gray
  • Device Dimensions
    • Desktop Stand (Angles 1): 309 x 214 x 187mm
    • Desktop Stand (Angles 2): 309 x 226 x 167mm
  • Gift Box Dimensions: 323 x 301 x 71mm
  • Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS)
