IP Phone & PBX Fanvil X210 High-end Enterprise IP Phone
Fanvil X210 High-end Enterprise IP Phone
Fanvil X210 High-end Enterprise IP PhoneFanvil X210 High-end Enterprise IP PhoneFanvil X210 High-end Enterprise IP PhoneFanvil X210 High-end Enterprise IP Phone

Fanvil X210 High-end Enterprise IP Phone

not inserted
Price 0
Status Pre Order
Product Code PR00259
Brand Fanvil
Model Fanvil X210
Features

    • 20 SIP Lines, 3-Way Conference, Hotspot
    • 4.3” Main Color Display
    • Dual Gigabit Ports, Integrated PoE

Hotline: 01979234344 | Corporate: 01979234316
Download Brochure
Share On :
Last Modified On: 24-05-2023
Fanvil X210 High-end Enterprise IP Phone

Deliver Convenience and Productivity

X210 is a high-end enterprise IP phone for users who need to get access to flexible and advanced features to handle medium to high call volumes in their daily work. Featuring 10 DSS keys on 4.3" main color display, up to 96 DSS keys (32 physical) on 2×3.5" side color displays, X210 has up to 106 DSS keys in total to set for BLF, speed dial, group broadcasting function etc. It also comes with HD audio, built-in Bluetooth, Wi-Fi connectivity, EHS support, dual Gigabit, PoE, IP camera/SIP door phone integration, delivering vast productivity with these advanced features.

4.3" main color display with 2×3.5" side color displays for DSS keys

Elegantly designed and featuring a large 4.3" high-resolution color display and two convenient 3.5" side color displays make using this IP phone more intuitive than ever.

HD audio for speakerphone and handset

Newly-added support for Opus and a larger audio cavity bring abundant, strong low frequency effect. The speakerphone adopts full net coverage delivering crystal clear, life-like voice communication.

Unified Designed With Two Side Displays For Up To 106 DSS Keys

  • Convenient operation on X210 with two 3.5" side DSS Key displays, no need to add external extension modules.
  • With three page-switch buttons, the side displays allow to set up to 96 DSS keys (32 physical), and plus 10 DSS keys on the main display, up to 106 DSS keys are available in total for BLF, speed dial, group broadcasting function etc.

Rich Extension Function

X210 offers a variety of device connections including Wi-Fi (via Wi-Fi dongle), integrated Bluetooth, EHS headset, USB port for charging smartphone or other devices. Two Gigabit ports allows you to connect your desktop computer or laptop on the phone – no need for extra cabling.

Deliver HD Video Call with IP Camera/SIP Video Door Phone Integration

Equipped with video codec H.264, X210 enables to be integrated with your IP camera or Fanvil SIP video door phone, so that you can have a two-way talk with visitors and unlock the door from your X210 IP phone if you deem them worthy.

Features Overview

  • 20 SIP lines, 3-way conference, hotspot

  • HD audio on speakerphone and handset

  • 4.3" main color display

  • Built-in Bluetooth

  • 2×3.5" side color displays for DSS keys

  • Up to 106 DSS keys (42 tri-colored physical keys)

  • Dual Gigabit ports, integrated PoE

  • Wi-Fi connectivity (via Wi-Fi dongle)

  • Support EHS headset

  • Video Codec H.264 support for receiving video calls

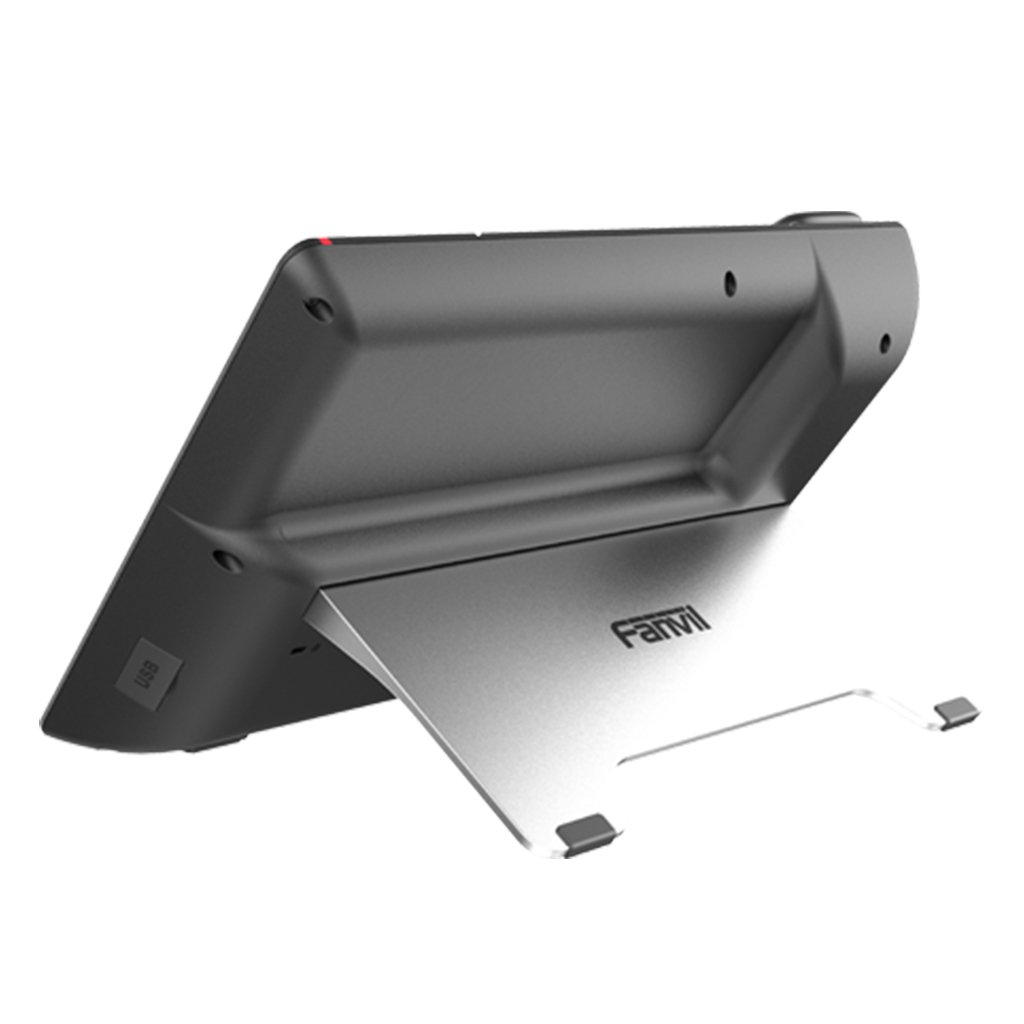

  • Stand with 2 adjustable angles of 40 and 50 degrees

  • Compatible with major platforms: 3CX, Asterisk, Broadsoft, Metaswitch, Avaya etc.

Digi-Mark Solution authorized dealer of Fanvil in Bangladesh. You can buy the Fanvil X210 Enterprise IP Phone at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

Generic

  • 20 SIP Lines
  • HD Voice
  • Support receiving Video call
  • PoE Enabled
  • 3 LCDs (Main + DSS)
  • Handset / Hands-free / Headset mode
  • Intelligent DSS Keys
  • Optional External Power Supply

Phone Features

  • Local Phonebook (2000 entries)
  • Remote Phonebook (XML/LDAP, 2000 entries)
  • Call logs (In/out/missed, 1000 entries)
  • Black/White List Call Filtering
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Bluetooth 2.1: Support Bluetooth headset
  • Support Wi-Fi Dongle
  • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Flash Drive or Server Recording )
  • Action URL / Active URI
  • uaCSTA

Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (On server)
  • 3-way Conference
  • Hot Line
  • Hot desking

Video

  • Video codec: H.264
  • Video call resolution: QCIF / CIF / VGA

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
  • Wideband Codec: G.722, AMR-WB, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

  • Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode:IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • Main LCD x1: 4.3 inch (480x272) color-screen LCD
  • DSS Key-mapping LCD x2: 3.5 inch (320x480) color-screen LCD
  • Keypad: 77 keys, including
    • 4 Soft-keys
    • 6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial)
    • 4 Navigation keys
    • 1 OK key
    • 1 Return key
    • 12 Standard Phone Digits keys
    • 3 Volume Control keys, Up/Down/Mute(Microphone)
    • 1 Hands-free key
    • 42 DSS Keys with tri-color LED
    • 3 Page-Switch (PS) key
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Back Rack x1
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
  • DC Power Input: 5V/2A
  • Power Consumption (PoE): 2.6~ 9W
  • Power Consumption (Adapter): 2.4~8W
  • Working Temperature: 0~45℃
  • Working Humidity: 10~95%
  • Installation: Desktop Stand
  • Color: Dark gray
  • Device Dimensions
    • Desktop Stand (Angles 1): 309 x 214 x 187mm
    • Desktop Stand (Angles 2): 309 x 226 x 167mm
  • Gift Box Dimensions: 323 x 301 x 71mm
  • Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS)
