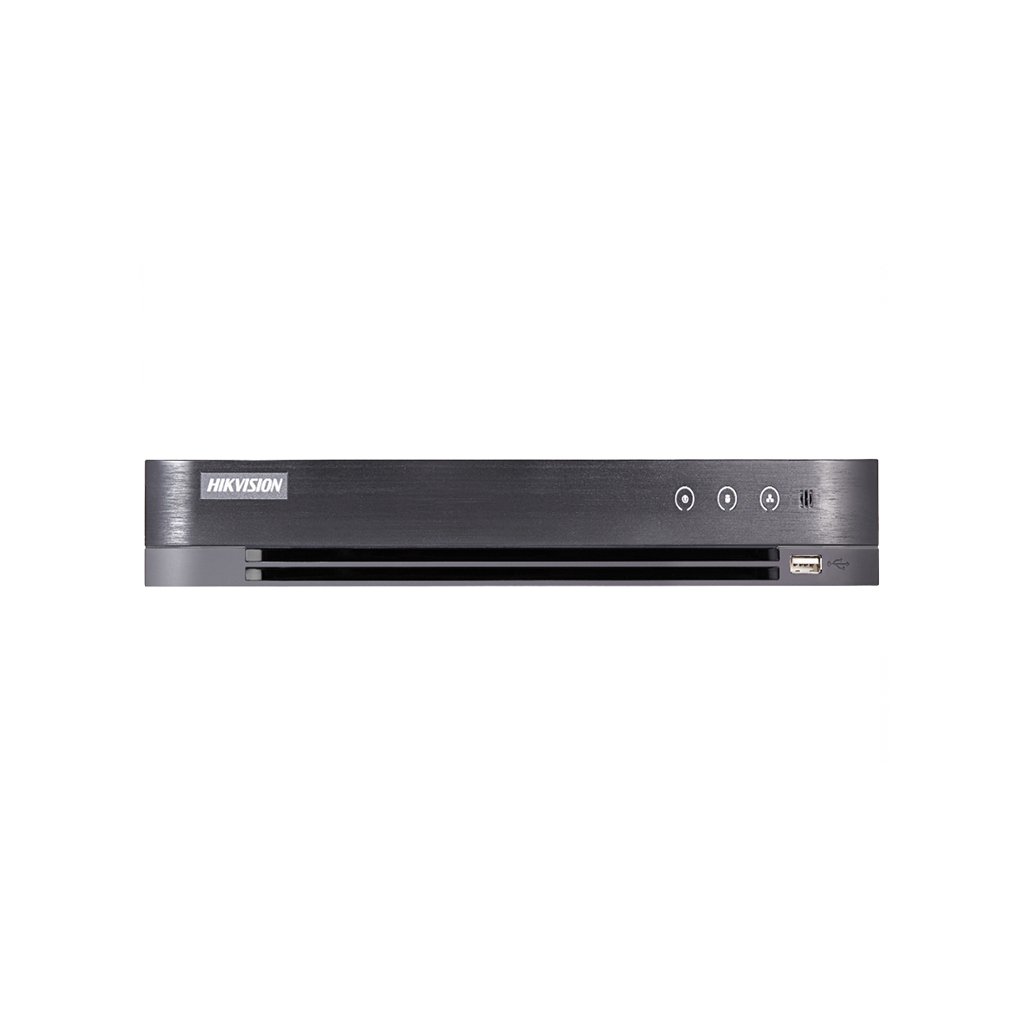

Security Surveillance Hikvision DS-7204HUHI-K1 4-ch 5 MP 1U H.265 PoC DVR
Hikvision DS-7204HUHI-K1 4-ch 5 MP 1U H.265 PoC DVR
Hikvision DS-7204HUHI-K1 4-ch 5 MP 1U H.265 PoC DVR

Hikvision DS-7204HUHI-K1 4-ch 5 MP 1U H.265 PoC DVR

not inserted
Price 0
Status In stock
Product Code PR00322
Brand HIKVISION
Model DS-7204HUHI-K1
Features

    • 4 channels and 1 HDD 1U DVR
    • Efficient H.265 pro+ compression technology
    • Encoding ability up to 5 MP @ 12 fps
    • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Hotline: 01979234344 | Corporate: 01979234316
Download Brochure
Share On :
Last Modified On: 21-08-2023

Hikvision DS-7204HUHI-K1 4-ch 5 MP 1U H.265 PoC DVR

Video Input and Transmission

  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Up to 2-ch 6 MP IP cameras input
  • 5 MP/4 MP HDTVI video input and live view
  • Defogging function enabled for the supported analog cameras
  • Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

  • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Full channel recording at up to 5 MP resolution

Video Output

  • Simultaneous HDMI/VGA output
  • HDMI output at up to 4K (3840 × 2160) resolution for DS-7208HUHI-K1
  • Separate CVBS output

Best 4 CH HD DVR

  • Hikvision DS-7204HGHI-F1
  • Hikvision DS-7104HQHI-K1
  • Hikvision DS-7204HQHI-K1





Digi-Mark Solution authorized dealer of Hikvision in Bangladesh.You can buy the  Hikvision DS-7204HUHI-K1 DVR at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

Technical Specification
Model DS-7204HUHI-K1
Recording
Video compression H.265+/H.265/H.264+/H.264
Encoding resolution 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Video bit rate 32 Kbps to 10 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input  Up to 6 MP resolution
Analog video input  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
HDMI/VGA output  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS input PAL/NTSC
General
Power supply 12 VDC
Consumption (without HDD) ≤ 10 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimensions (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight (without HDD) ≤ 1.16 kg (2.6 lb)
