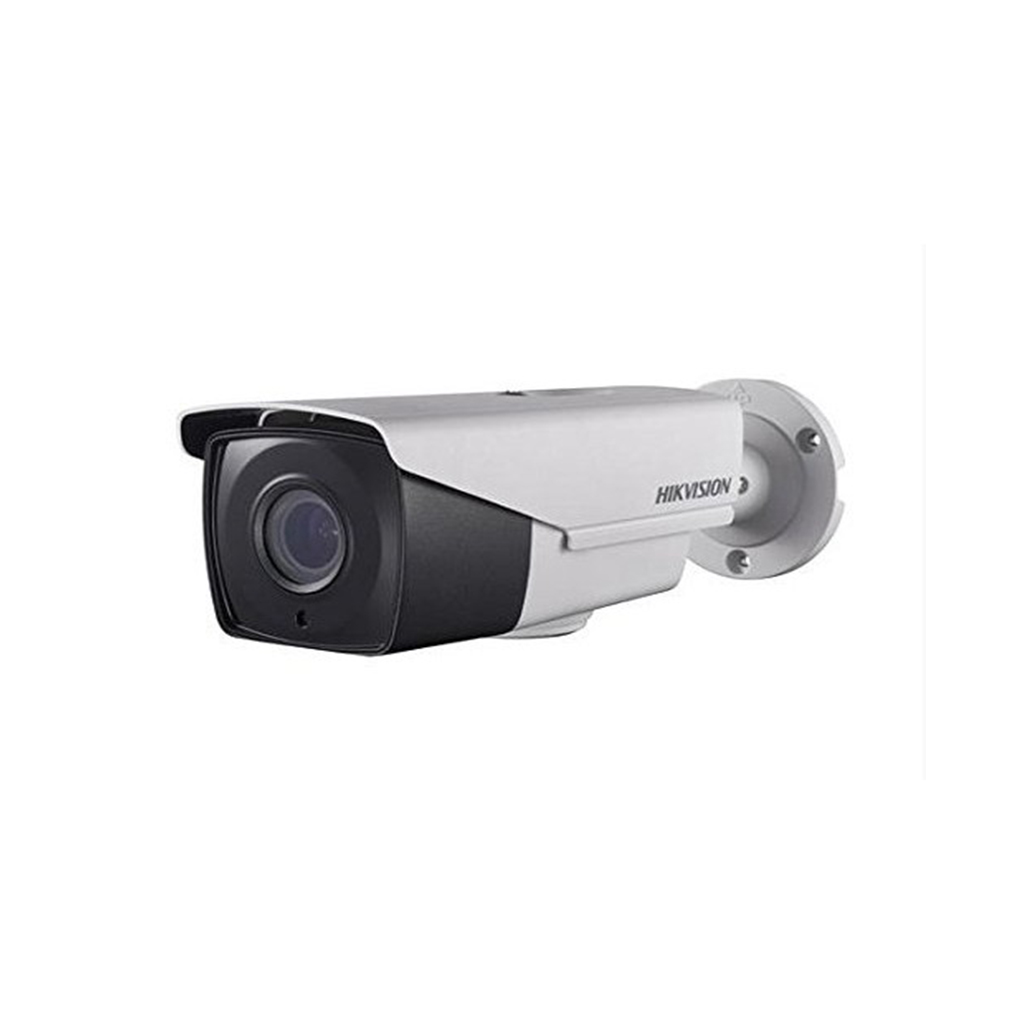

DS-2CE16D7T-IT3Z
HD1080P WDR Motorized VF EXIR Bullet Camera
• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• 2.8-12mm motorized vari-focal lens
• True Day/Night
• OSD menu, DNR, Smart IR
• True WDR, up to 120dB
• EXIR technology, up to 40m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)
Image Sensor:
| | | 2MP CMOS Image Sensor | |
| Signal System: | | | PAL/NTSC |
| Effective Pixels: | | | 1928(H)*1088(V) |
| Min. Illumination: | | | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | Motorized VF lens; 2.8 - 12 mm Angel of view: 35.1°-114.5° |
| Lens Mount: | | | φ14 |
| Adjustment Range: | | | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120dB |
| Video Frame Rate: | | | [email protected]/[email protected] |
| HD Video Output: | | | 1 Analog HD output |
| Synchronization: | | | Internal Synchronization |
| S/N Ratio: | | | More than 62 dB |
| Up the Coax: | | | Support |
