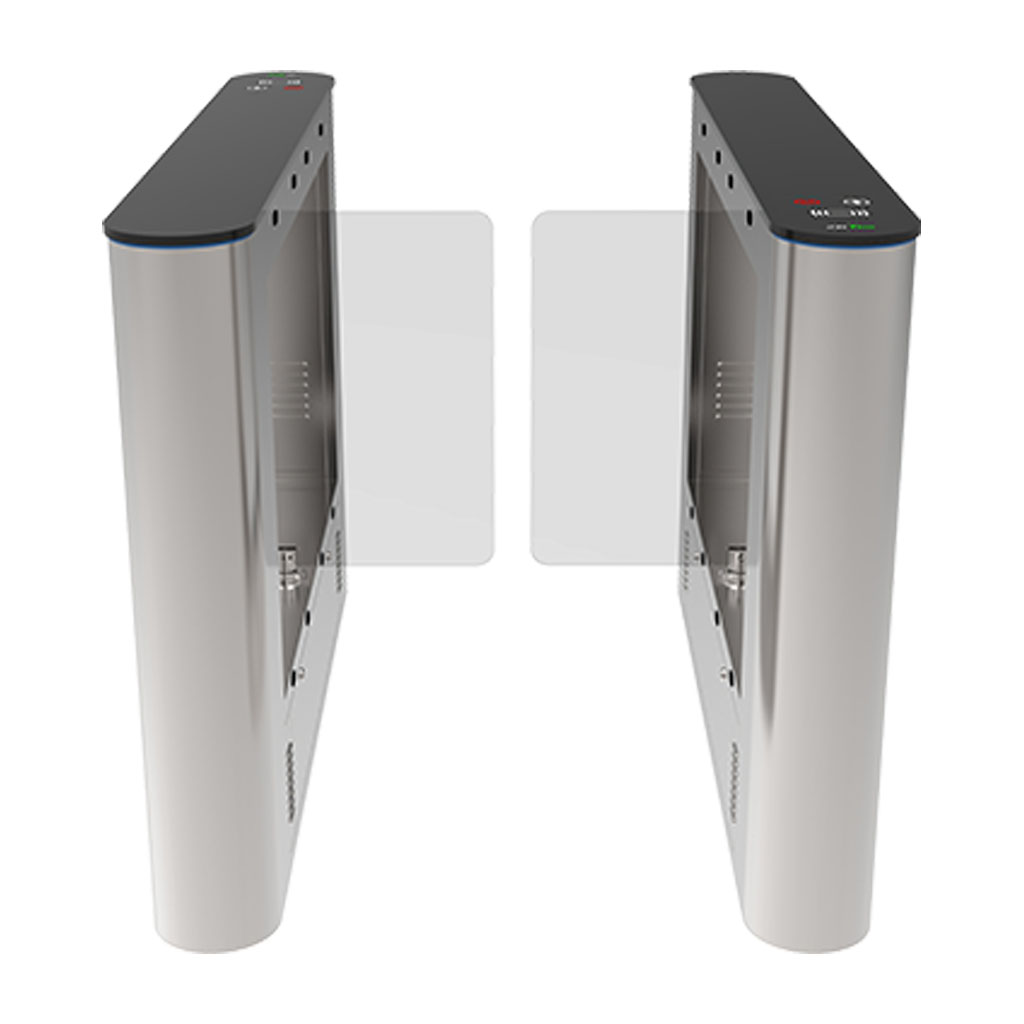

The ZKTeco SBTL5000 is a single-lane swing barrier turnstile that locks its gate by default and only swings open once a connected RFID or fingerprint reader confirms a valid credential. Built from stainless steel with a tempered-glass barrier, it targets entrances that need a secure but visually open passage rather than a compact flap or tripod lane.
Key features
The only lane that passes a wheelchair or a trolley — Wide-lane models exist precisely for this. If the building has a disability access obligation, a bank of fast flap lanes does not discharge it.
Barriers swing open automatically in an emergency — No manual release, no key, no guard intervention. The corollary is that the entrance stands open through a power cut.
LCD status display on the unit — Current running state visible at the pedestal, which matters on a lane that guards and cleaners interact with daily.
30 per minute with RFID — Slower than a flap barrier by design — the wider aperture takes longer to clear. Size accordingly rather than assuming parity.
Sizing the entrance
Count peak-hour arrivals. Not daily headcount. A factory of 3,000 arrives across twenty minutes.
Check the credential, not just the lane. The reader is almost always the bottleneck.
Include one wide lane. Wheelchairs, trolleys, and beds do not pass a standard aperture.
Why buy from DigiMark Solution
Authorized ZKTeco Distributor for Bangladesh since 2006. Genuine units with manufacturer warranty, serial-verified through ZKTeco's anti-counterfeiting system on arrival, installed and commissioned by our own engineers, and serviced from seven branches. We size the lane count before quoting rather than after installing.
Indicative Price range in Bangladesh
Price on request, quoted per lane. Send your entrance width and peak-hour footfall — WhatsApp +880 1979-234342.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized ZKTeco distributor. Every ZKTeco SBTL5000 Swing Barrier is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION
SBTL5000
SBTL2000
Brand
ZKTeco
ZKTeco
Model
SBTL5000
SBTL2000
Product Type
Single-lane swing barrier turnstile
Single-lane swing barrier turnstile
Barrier Movement
Swing
Swing
Fingerprint Throughput
maximum of 25 people per minute
maximum of 25 people per minute
Lane Width
650 mm
1050 mm
Emergency Mode
Supported
Supported
Casing / Barrier Material
SUS304 stainless steel; barrier: tempered glass
SUS304 stainless steel
Indication
LCD display
LED indicator
Working Temperature
-28°C to 60°C
-28°C to 60°C
Working Humidity
20% to 95%
5% to 80%
Working Environment
Indoor only
Indoor / outdoor
Lifespan (MCBF)
2,000,000 cycles
2,000,000 cycles
Dimensions
1400 × 180 × 1000 mm
1200 × 280 × 1000 mm
Net Weight
120 kg
118 kg
Attribute / Feature
Specification Details
Brand
ZKTeco
Model
SBTL5000
Product Type
Single-lane swing barrier turnstile
Barrier Movement
Swing
Fingerprint Throughput
maximum of 25 people per minute
Lane Width
650 mm
Emergency Mode
Supported
Casing / Barrier Material
SUS304 stainless steel; barrier: tempered glass
Indication
LCD display
Working Temperature
-28°C to 60°C
Working Humidity
20% to 95%
Working Environment
Indoor only
Lifespan (MCBF)
2,000,000 cycles
Dimensions
1400 × 180 × 1000 mm
Net Weight
120 kg
Complete Installation
What else you need for a working Kit
A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.
Price on request — quoted per lane (turnstile, reader, controller, power, fixing, commissioning). Send entrance width and peak-hour footfall for a same-day quote. WhatsApp: +880 1979-234342.
Up to 30/min with RFID. Size lanes on peak-hour arrivals, not headcount — 3,000 people arrive in about twenty minutes, not eight hours.
Yes — survey, lane sizing by peak-hour footfall, installation, and software integration. Right the first time; no equipment change fixes it later.
Wide-lane models only. Standard-width lanes — swing, flap, or tripod — can't accommodate a wheelchair or trolley.
Not as a rule. SBTL5000 and FBL2000 Pro both do 30/min RFID — speed depends on the model, not the barrier type. Wider wheelchair-access lanes do trade speed for accessibility.
