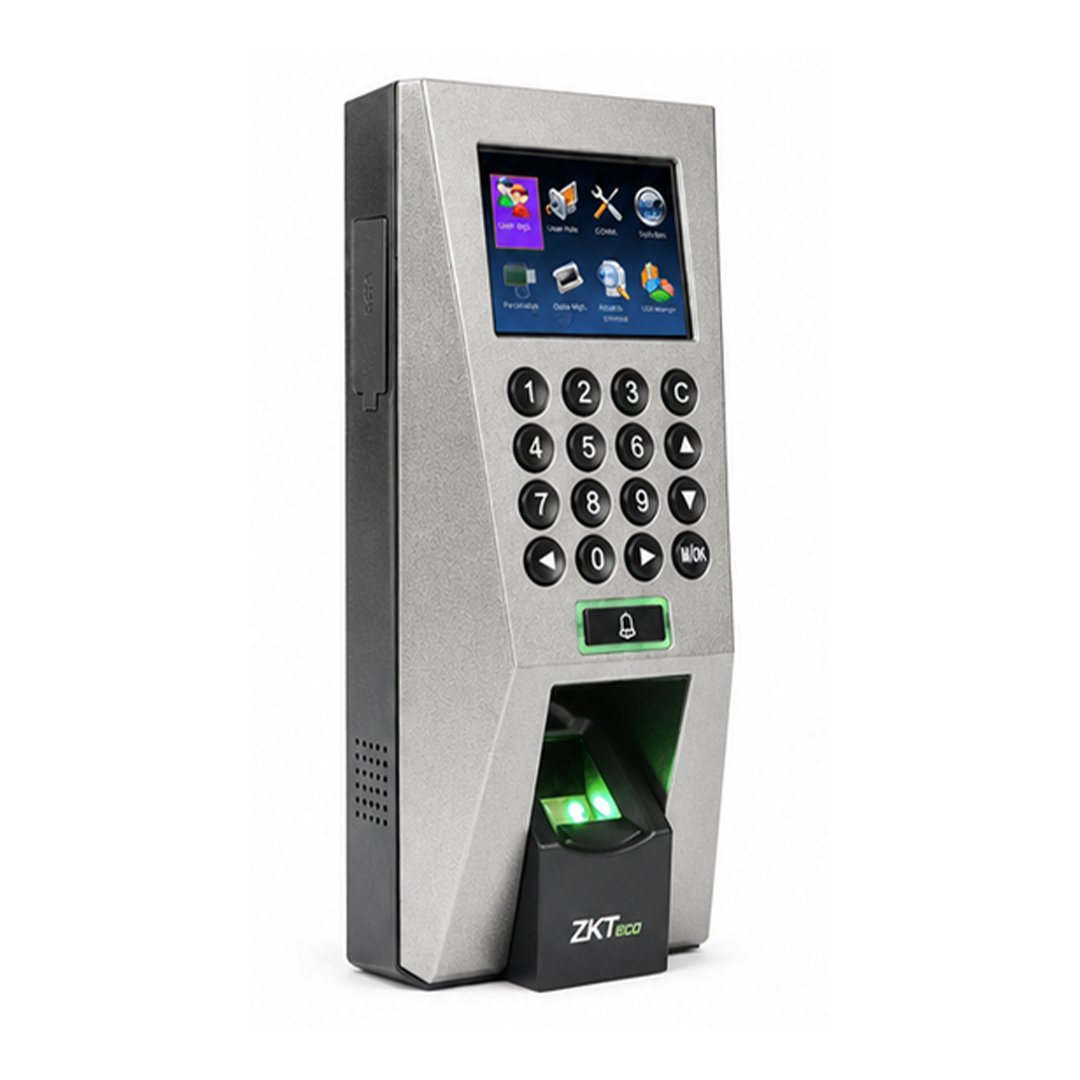

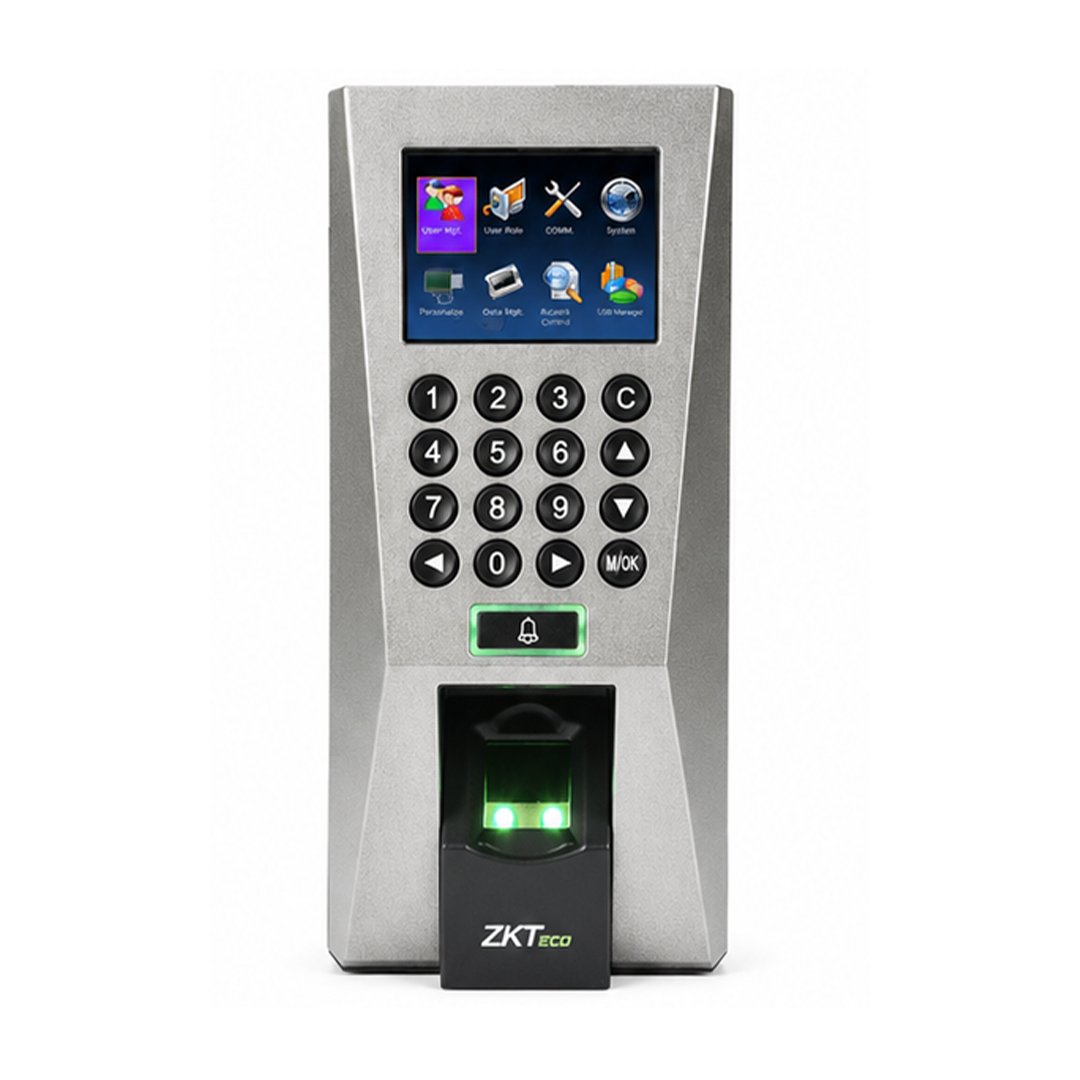

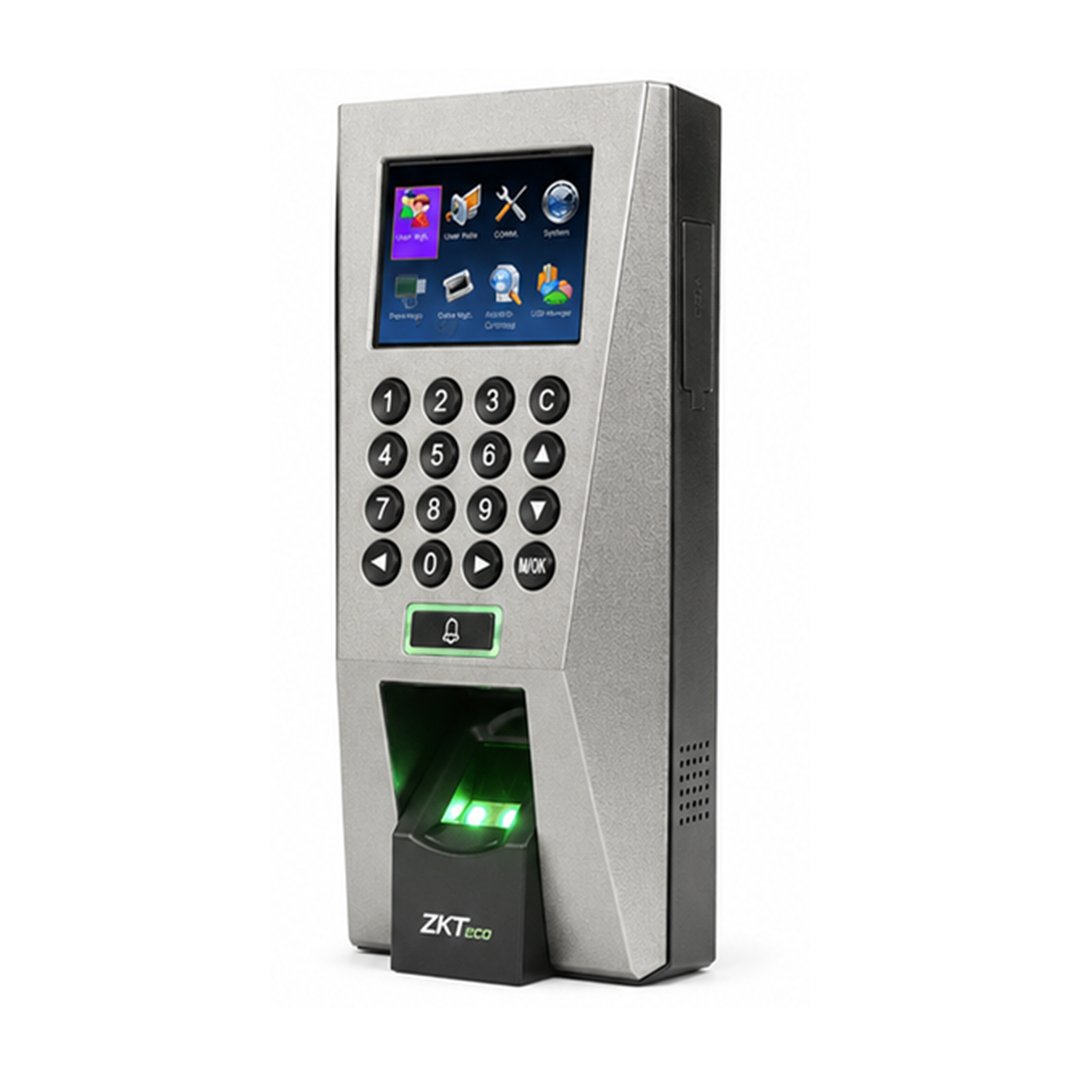

The ZKTeco F18 is a wall-mount fingerprint access control & time attendance terminal built for the doors that make up the bulk of any real installation — office entrances, departmental doors, and factory administration blocks where you need reliable verification, an accurate attendance record, and nothing exotic.
It verifies by fingerprint, RFID card, and password (any combination), stores 3,000 fingerprint templates and 100,000 transaction records, and is managed through ZKAccess 3.5, ZKTime.Net, and ZKBio CVSecurity.
DigiMark Solution is the Authorized Distributor of ZKTeco in Bangladesh — every unit ships with original firmware, an official manufacturer warranty, and installation and RMA support from our own engineers across seven branches.
The F18 operates in two ways. Standalone: users are enrolled on the device, and it drives the door lock directly through its relay output — no PC and no network. Networked: connected over the interfaces above, users, access rules, and attendance data sync centrally so multiple doors and branches are managed from one place.
With Wiegand output, it can also serve purely as a reader feeding an existing access control panel — useful when extending a system already built around a central controller. Wiegand input lets two units pair as master and slave so staff verify on both entry and exit, which is what makes anti-passback and accurate attendance actually work.
The terminal alone does not make a working access-controlled door. Budget for an EM lock sized to the door (280 kg for most, 500 kg for glass or main entrances), the correct ZL or U bracket, a regulated power supply with battery backup, an exit button on the secure side, and cabling. If you only need attendance and not door control, all of that can be skipped — which reduces the total cost substantially.
Quoted per requirement, because dealer, system-integrator, and project rates differ substantially, and what is included changes the figure — terminal only, or a complete door kit with lock, power supply, exit button, and installation. Request a quotation or WhatsApp +880 1979-234342.
DigiMark Solution has been Bangladesh's authorized ZKTeco distributor. Every ZKTeco F18 Biometric Fingerprint Access Control is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
| SPECIFICATION | F18 | F22 |
|---|---|---|
| Brand | ZKTeco | ZKTeco |
| Model | F18 | F22 |
| Product Type | Wall-mount fingerprint access control & time attendance terminal | Ultra-thin fingerprint access control & time attendance terminal with Wi-Fi |
| Verification Method | Fingerprint, RFID card, password (any combination) | Fingerprint, RFID card (optional), password |
| Fingerprint Capacity | 3,000 | 3,000 |
| Face Capacity | Not supported | Not supported |
| Card Capacity | 5,000 (optional ID or Mifare) | 5,000 (optional ID or Mifare 13.56 MHz) |
| User Capacity | 3,000 | 3,000 |
| Transaction Capacity | 100,000 | 100,000 |
| Sensor Type | BioID optical sensor | BioID sensor; SilkID sensor optional |
| Algorithm Version | ZKFinger VX10.0 | ZKFinger VX10.0 |
| Verification Speed | ≤ 1 second | ≤ 1 second |
| Display | 2.4" TFT LCD colour screen | 2.4" TFT LCD colour screen |
| Keypad | Physical keypad | Touch keypad |
| Communication | RS232/485, TCP/IP, USB-host | RS232/485, TCP/IP, USB-host, Wi-Fi |
| Wiegand Signal | Input and output | Input and outpu |
| Access Control Interface | 3rd-party electric lock, door sensor, exit button, alarm | 3rd-party electric lock, door sensor, exit button, alarm |
| Attribute / Feature | Specification Details |
|---|---|
| Brand | ZKTeco |
| Model | F18 |
| Product Type | Wall-mount fingerprint access control & time attendance terminal |
| Verification Method | Fingerprint, RFID card, password (any combination) |
| Fingerprint Capacity | 3,000 |
| Face Capacity | Not supported |
| Card Capacity | 5,000 (optional ID or Mifare) |
| User Capacity | 3,000 |
| Transaction Capacity | 100,000 |
| Sensor Type | BioID optical sensor |
| Algorithm Version | ZKFinger VX10.0 |
| Verification Speed | ≤ 1 second |
| Display | 2.4" TFT LCD colour screen |
| Keypad | Physical keypad |
| Communication | RS232/485, TCP/IP, USB-host |
| Wiegand Signal | Input and output |
| Access Control Interface | 3rd-party electric lock, door sensor, exit button, alarm |
A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.
Nexakey NX-280U EM Lock Bracket
PR00485
Nexakey NX-5V1A Power Adapter
PR01291
Nexakey NX-500AS Single Door Magnetic Lock
PR01320
Nexakey NX-PB10 Exit Button (PVC)
PR00475
Nexakey Platinum Series NX-PT57C6 Cat6 UTP Network Cable
PR01501
Pricing depends on quantity, kit requirements, and project scope — dealer and bulk rates differ from single-unit pricing. Tap Get Best Price or WhatsApp +880 1979-234342 for a same-day quote.
The F18 stores 3,000 fingerprint templates and 100,000 transaction records — size for future growth, not just current headcount.
Yes. It integrates with ZKAccess 3.5, ZKTime.Net, and ZKBio CVSecurity, plus SDK and database access for automatic attendance synchronization with your HR or ERP system.
A complete access-controlled door needs an EM lock, mounting bracket, backup power supply, exit button, and cabling. For attendance-only use, the terminal alone is sufficient.
Fingerprint accuracy can drop with worn or wet fingers, common in industrial settings. For harsh outdoor conditions, the IP65-rated VIRDI AC-2100 Plus is a better fit.
