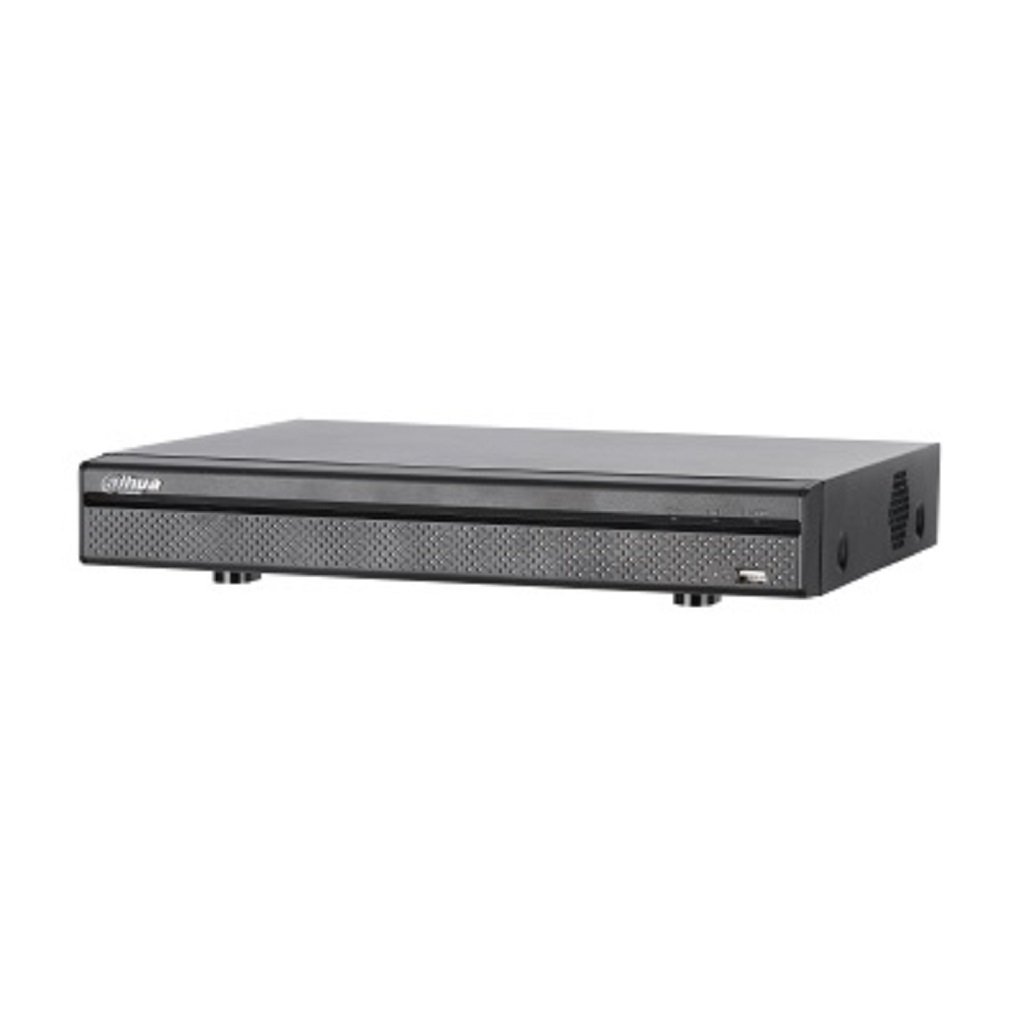

Dahua XVR5116HS-4KL 16 Channel Penta-brid XVR

5 · 43 reviews
· Model: XVR5116HS-4KL
Core Summary
  • Up to 8 MP per channel
  • Max 12 IP camera channels
  • Max 48 Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
PRICE ON REQUEST

Dealer, project & government pricing

Quoted same day · prices exclude VAT

Single unit — installed price available
Outside office hours — we reply by 9:00 AM next working day
Authorized Distributor
Direct from Dahua
Installation Support
Trained engineers
Quote in 3 Hours
Business hours reply
20+ Yrs Expertise
Since 2006 · 6 branches
At A Glance

Key Specifications

No specifications available for this product.

Specs & Details

Full Product Information

Last Updated: 16-11-2026

Dahua XVR5116HS-4KL 16 Channel Penta-brid XVR

With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who require both quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO).

 DigiMark Solution is an authorized partner of Dahua in Bangladesh. You can buy the Dahua XVR5116HS-4KL 16 Channel XVR at the best dealer price from our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, and Chittagong (Chattogram) showrooms. For the lowest dealer price, contact us at 01979-234344.

Buy Genuine from DigiMark Solution

DigiMark Solution has been Bangladesh's authorized Dahua distributor. Every Dahua XVR5116HS-4KL 16 Channel Penta-brid XVR is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.

100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION XVR5116HS-4KL
Main Processor Embedded Processor
Operating System Embedded LINUX
Analog Camera Input 16 Channel, BNC
HDCVI Camera 1080P@25/30fps, 720P@25/30fps
AHD Camera 1080P@25/30, 720P@25/30fps
TVI Camera 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 16+8 Channel, each channel up to 8MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Video Compression H.265+/H.265/H.264+/H.264
Resolution 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-/ 1080P/ 720P/ 960H/ D1/ CIF(1~25/30fps)
Sub stream:960H(1~15fps);  D1/ CIF(1~25/ 30fps)
Video Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Interface 1 HDMI ,1 VGA
Multi-screen Display When IP extension mode not enabled: 16CH: 1/4/8/9/16
When IP extension mode enabled: 16CH: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Attribute / FeatureSpecification Details
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Analog Camera Input16 Channel, BNC
HDCVI Camera1080P@25/30fps, 720P@25/30fps
AHD Camera1080P@25/30, 720P@25/30fps
TVI Camera1080P@25/30, 720P@25/30fps
CVBS CameraPAL/NTSC
IP Camera Input16+8 Channel, each channel up to 8MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Video CompressionH.265+/H.265/H.264+/H.264
Resolution4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record RateMain stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-/ 1080P/ 720P/ 960H/ D1/ CIF(1~25/30fps) Sub stream:960H(1~15fps);  D1/ CIF(1~25/ 30fps)
Video Bit Rate32Kbps ~ 4096Kbps Per Channel
Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Interface1 HDMI ,1 VGA
Multi-screen DisplayWhen IP extension mode not enabled: 16CH: 1/4/8/9/16 When IP extension mode enabled: 16CH: 1/4/8/9/16/25
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording

No downloads available for this product.

Pricing depends on quantity and project scope. Tap Get Best Price or WhatsApp 01979234342 for a same-day corporate quote.

Yes — supplied with original Dahua official warranty, and installation support across Bangladesh by DigiMark Solution.

Yes — remote configuration help, on-site installation on request, and RMA handling from DigiMark service desk.
