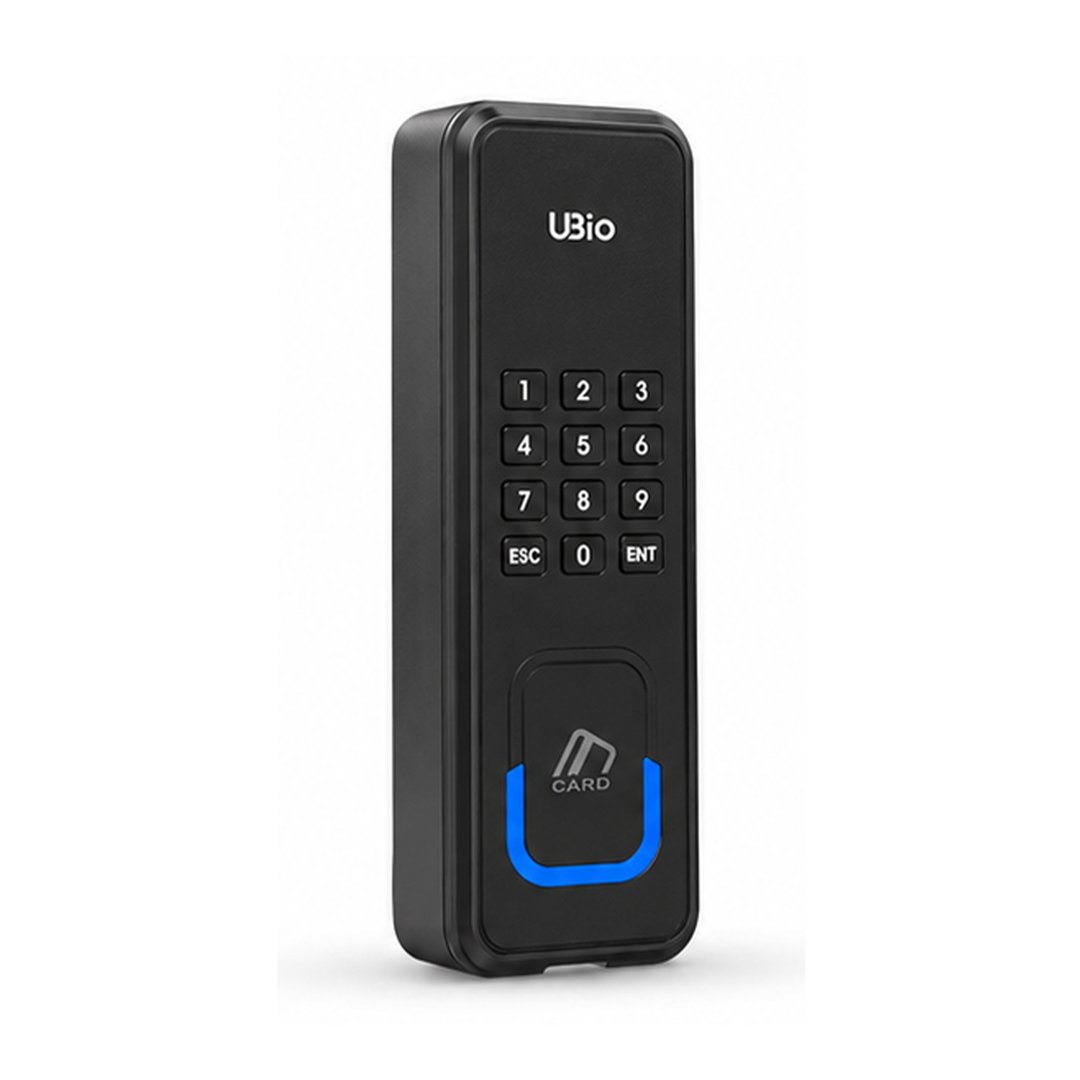

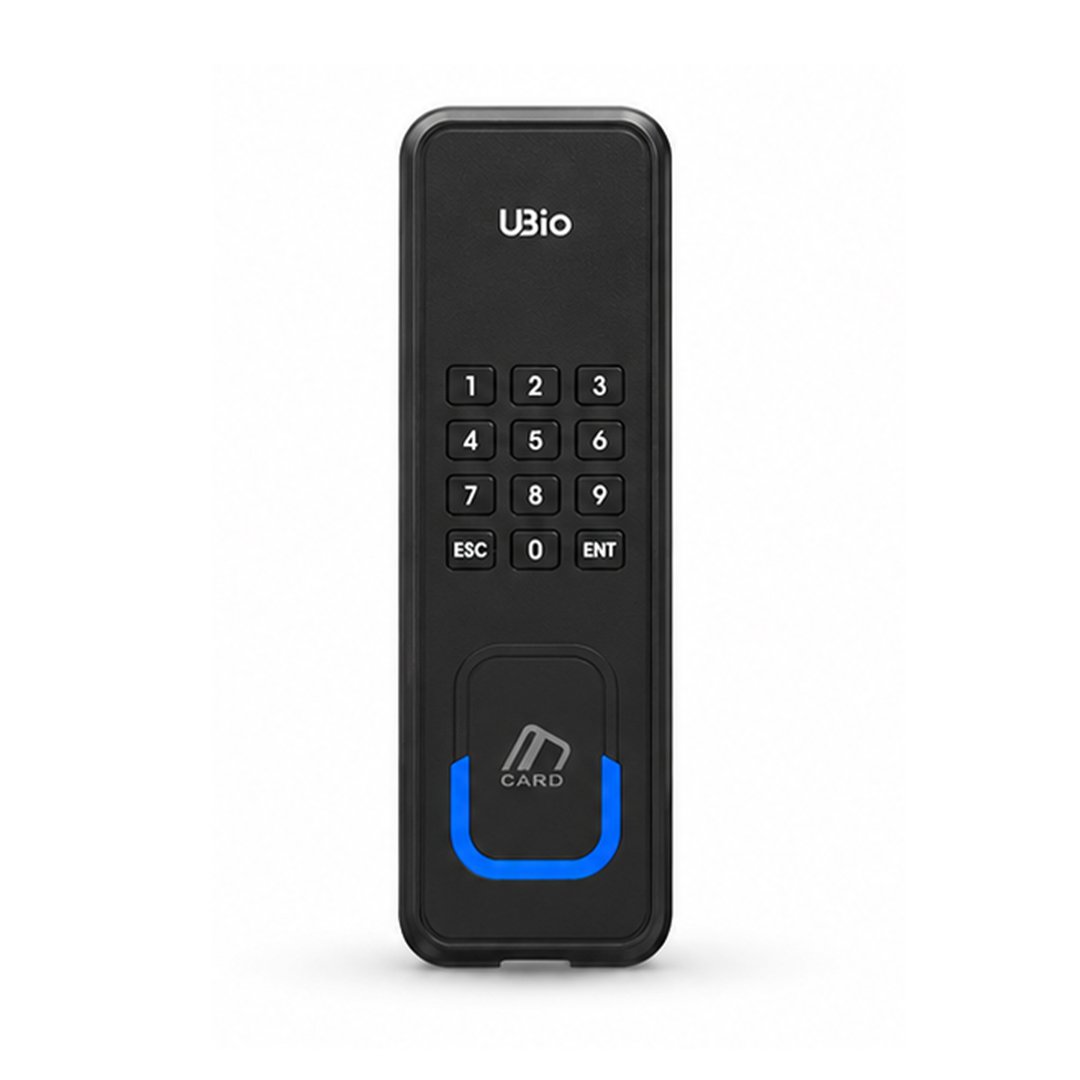

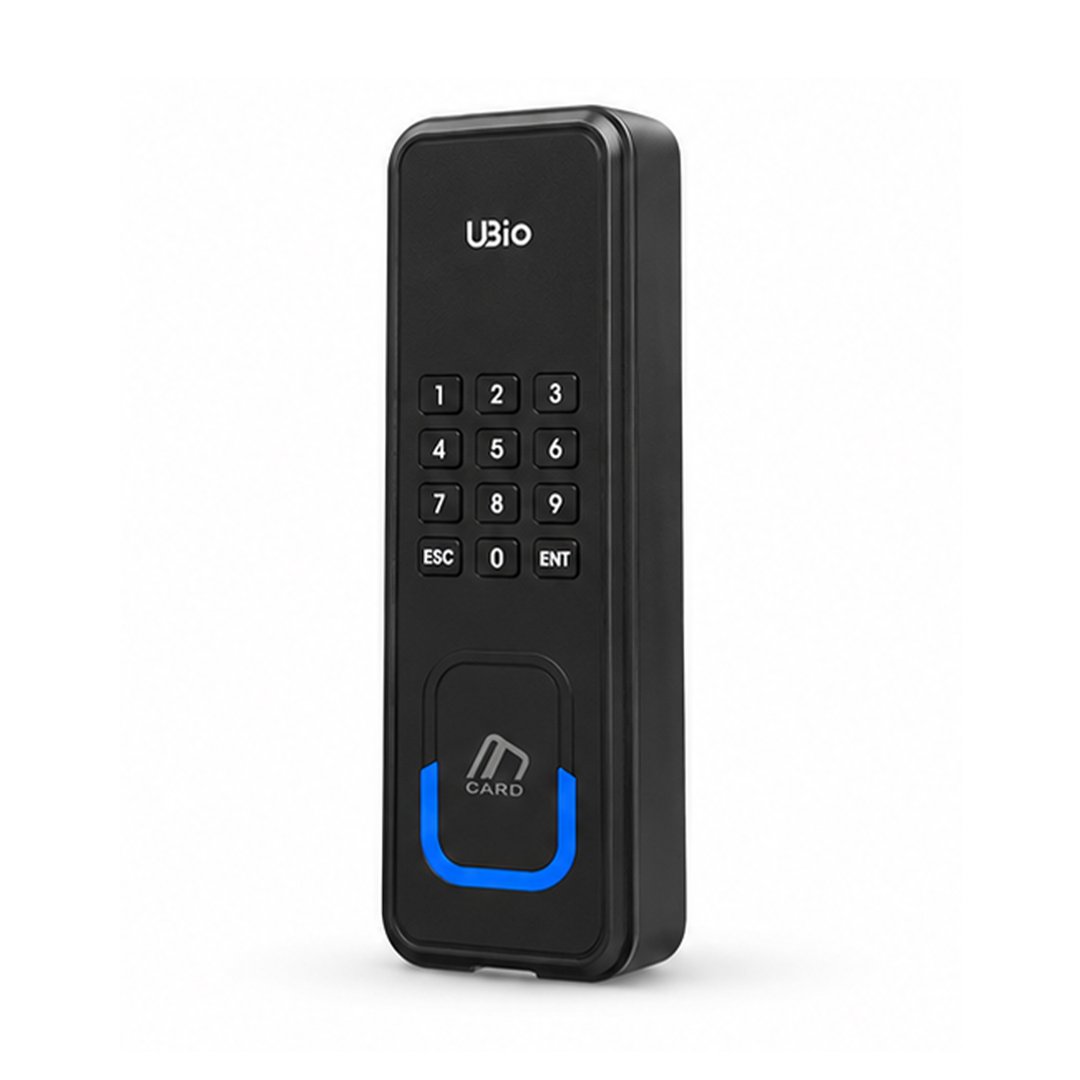

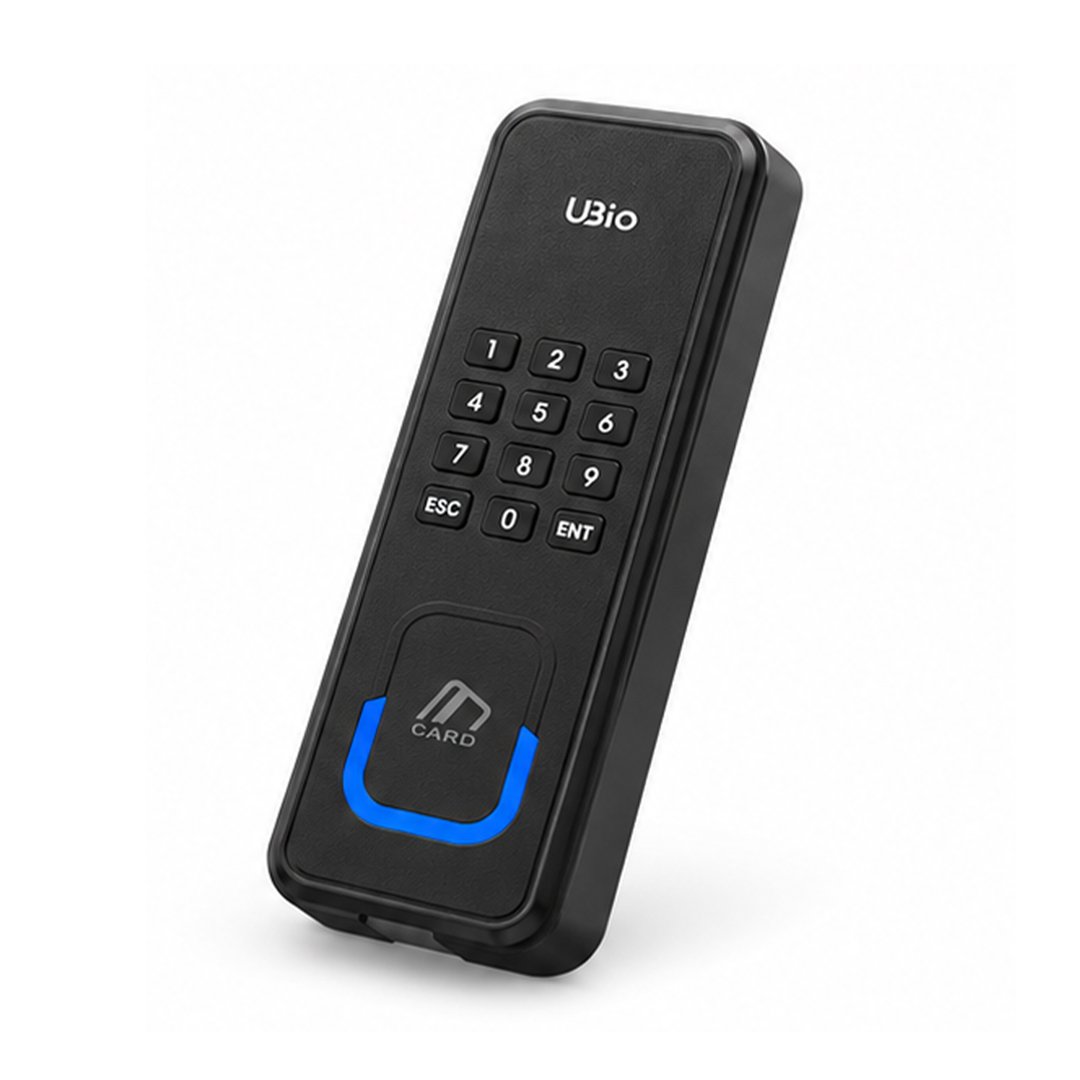

UBio-X Tag: Slim RFID Access Control & Time Attendance Terminal
The UBio-X Tag is a compact RFID-based access control terminal from UNION biometrics, built for installation in narrow spaces such as thin door frames, apartment gates, and glass-door entrances. It supports card, mobile (NFC/BLE), and PIN authentication, with IP67/IK08-rated durability for reliable indoor and outdoor performance.
What Makes the UBio-X Tag Different?
The UBio-X Tag stands out for its slim, minimalistic body that fits installation points too narrow for standard access terminals, while still supporting dual-frequency card reading (13.56MHz and 125kHz) and a physical keypad for flexible authentication. It's designed for sites where space, durability, and multiple credential types all matter at once.
- Dual card reader: 13.56MHz (ISO14443A/B, Mifare, Felica, ISO15693; SEOS and DesFire EV1/EV2/EV3 optional) and 125kHz (EM, HID Prox optional)
- Mobile credential support via NFC and BLE
- Physical keypad for PIN-based access
- IP65/IP67 ingress protection and IK08 impact resistance
- ARM Cortex-A7 dual-core 1.2GHz processor with 4GB eMMC + 256MB RAM
- Supports up to 400,000 users and 1,000,000 event logs
- PoE support (on P and KP variants) for simplified wiring
- Tamper detection, 2ch relay, and 2ch input (1ch optional)
Where Can the UBio-X Tag Be Installed?
The UBio-X Tag is built for spaces where standard terminals don't fit or where fast, low-maintenance deployment matters — including high-security government facilities, compact apartment or parking entrances, temporary construction sites, and vulnerable glass-door or thin-framed entry points.
- High-Security Areas – Government offices and research facilities requiring privacy compliance
- Compact Installation Areas – Apartment gates and parking entrances with no room for structural changes
- Temporary Installation Areas – Construction sites and event venues needing quick PoE-based setup and removal
- Critical Access Areas – Glass doors and thin-framed entrances needing simple, cost-effective reinforcement
Why Choose the UBio-X Tag from DigiMark Solution?
DigiMark Solution supplies the UBio-X Tag in Bangladesh with genuine UNION biometrics hardware, backed by installation support and after-sales service across the country. The terminal's UBio-Link mobile app lets administrators manage users, push device settings, and update firmware remotely — reducing on-site visits for routine maintenance.
Indicative Price Range in Bangladesh
The UBio-X Tag is available in four variants — standard, Keypad (K), PoE (P), and Keypad+PoE (KP)- depending on the variant and order volume. Contact DigiMark Solution for current pricing and bulk/corporate rates.
Conclusion
For businesses needing a space-efficient, durable access control terminal that doesn't compromise on authentication flexibility, the UBio-X Tag offers a strong balance of compact design, IP67/IK08 protection, and PoE-ready deployment — making it a practical fit for both high-security facilities and fast-turnaround temporary sites across Bangladesh.
