Security Surveillance TVT TD-2004NS-HL 4 CH Hybrid DVR

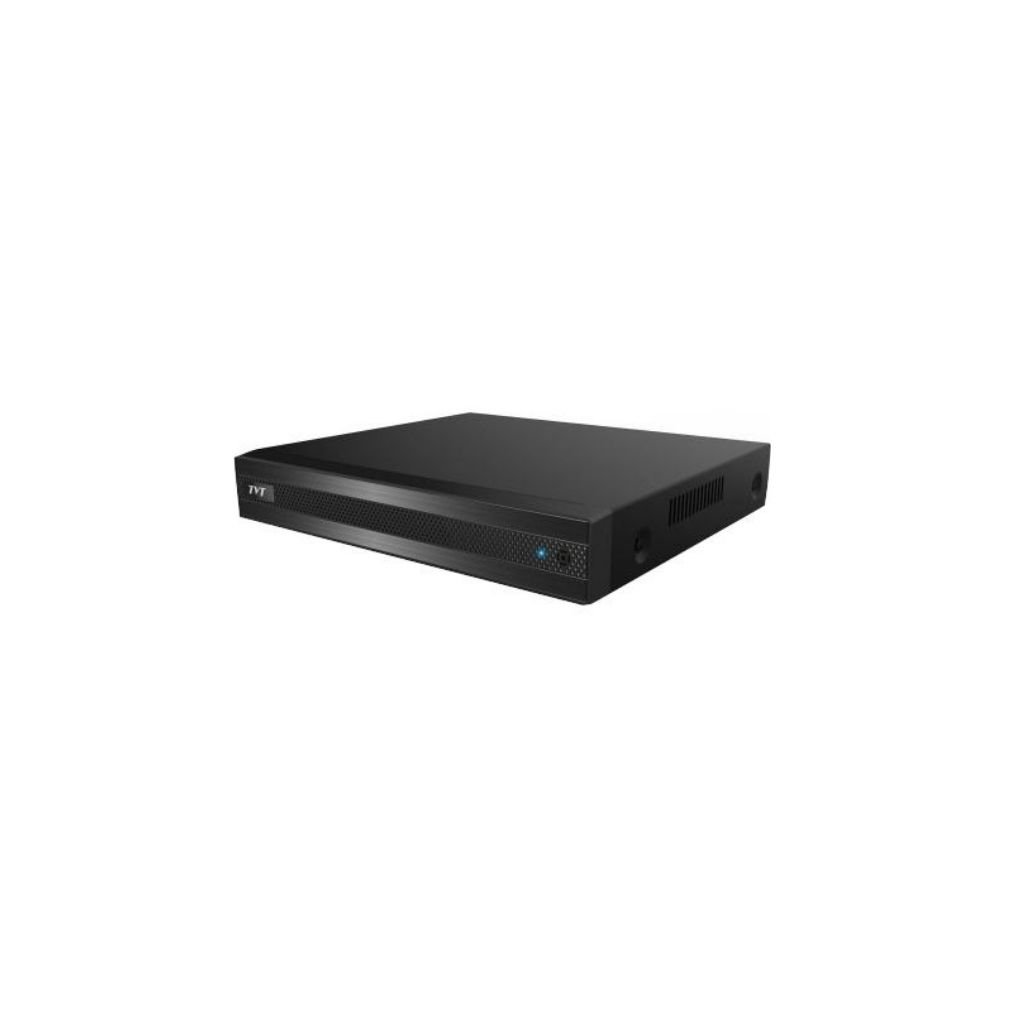

TVT TD-2004NS-HL 4 CH Hybrid DVR
TVT TD-2004NS-HL 4 CH Hybrid DVR

TVT TD-2004NS-HL 4 CH Hybrid DVR

not inserted
Price 0
Status In stock
Product Code PR01047
Brand TVT
Model TD-2004NS-HL
Features

    •  4/8 CH TVI / AHD/CVI 1080P/1080P Lite/720P/WD1 video input
    •  4 CH DVR supports 2 CH 1080P / 960P /720P IP video input
    •  8CH DVR supports 8CH 5MP/4MP/3MP/1080P / 960P /720P IP video input
    •  Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

Hotline: 01979234344 | Corporate: 01979234316
No Brochure
Share On :
Last Modified On: 05-04-2022

TVT TD-2004NS-HL 4 CH Hybrid DVR

TD-2004/08NS-HL is a 4/8 CH 720P high definition DVR with ability to connect analog and IP cameras simultaneously, which adopts the standard H.265 high profile compression format and the advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. TD-2004/08NS-HL supports 4 /8CH video input, 1 CH audio input, simultaneous 4 /8 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

  • 4/8 CH TVI / AHD/CVI 1080P/1080P Lite/720P/WD1 video input
  •  4 CH DVR supports 2 CH 1080P / 960P /720P IP video input
  •  8CH DVR supports 8CH 5MP/4MP/3MP/1080P / 960P /720P IP video input
  •   Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  •  Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  •    Multi-mode recording: manual / timed / motion / AI recording
  •    Playback : 4 /8CH simultaneously playback
  •    Search: time slice, time, event, tag search
  •    Express and flexible backup via USB, network and so on
  •    Pentaplex: preview, record, playback, backup and remote access
  •    DHCP, DDNS, PPPoE network protocol
  •    Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
  •    Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  •    Authorization management, log review and device status review
  •    Support 1080P output, true high resolution display
  •    Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  •    Support NAT function and QRCode scanning by mobile phones
  •    Powerful mobile surveillance by smart phones with iOS and Andriod OS

Digi-Mark Solution authorized dealer of TVT DVR in Bangladesh. You can buy the TVT TD-2004NS-HL 4 CH Hybrid DVR at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. We have dedicated Technical engineers to assist all over Bangladesh. Total set-up and after-sale support can be ensured at the best price. To know more details please Contact Us at our Facebook Page or 01979-234344.

System

OS

Embedded Linux

Video

Analog Video Input

BNC × 4

BNC × 8

BNC interface (1.0Vp-p; 75Ω)

TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/ WD1

IP Video Input

2CH

2CH

Up to 2MP@30fps

Up to 5MP@25fps

Total Input

6CH

10CH

Output

HDMI × 1 :1920 × 1080 / 1280 × 1024 / 1024 × 768

VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

Compression

H.264/H.265

Multi-screen Display

1/4/6/9

1/4/6/8/9/13/16

Audio

Input

RCA ×1

Output

RCA × 1 (linear, 600Ω)

Two-way audio

Take up channel one audio input

Compression

G.711(U/A)

Record

Resolution

1080P Lite/ 720P/ 720P Lite/ WD1

Frame Rate

Analog Channel:

4CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC)

8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) ( only CH 1 supports)
                    1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) ( other channels support)
                     720P Lite: 25fps(PAL) / 30fps (NTSC)

IP Channel: 25fps(PAL) / 30fps (NTSC)

Bit Rate

32Kbps ~ 4Mbps

Playback

Playback

4 CH

8CH

Search

Time slice / time / event / tag search

Smart Search

Highlight colors to display the camera record in a certain period of time, different colors refer to different record events

Function

Play, pause, FF, FB, digital zoom, etc.

Alarm

Mode

Manual, motion, exception, smart event

Input

No

Output

No

Network

Interface

RJ 45 100Mbps × 1

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP

Incoming Bandwidth

10Mbps

16Mbps

Outgoing Bandwidth

30Mbps

60Mbps

Client Connection

Max. 5 users access

MobileDevice

OS

iOS, Andriod

Storage

HDD

SATA× 1, up to 8TB

Backup

Local Backup

U disk, USB mobile HDD

Network Backup

Yes

Port

RS 485

No

USB

USB 2.0 × 2

Remote Controller

No

Others

Power Supply

DC12V / 1.5A

Consumption

≤ 5W ( without HDD )

Dimensions(mm)

255 × 222 × 42 ( W × D × H )

Working Environment

-10~50°C, 10%~90% (humidity)

Certificate

CE, FCC

Environment Protection

Directive EU RoHS, WEEE, REACH
