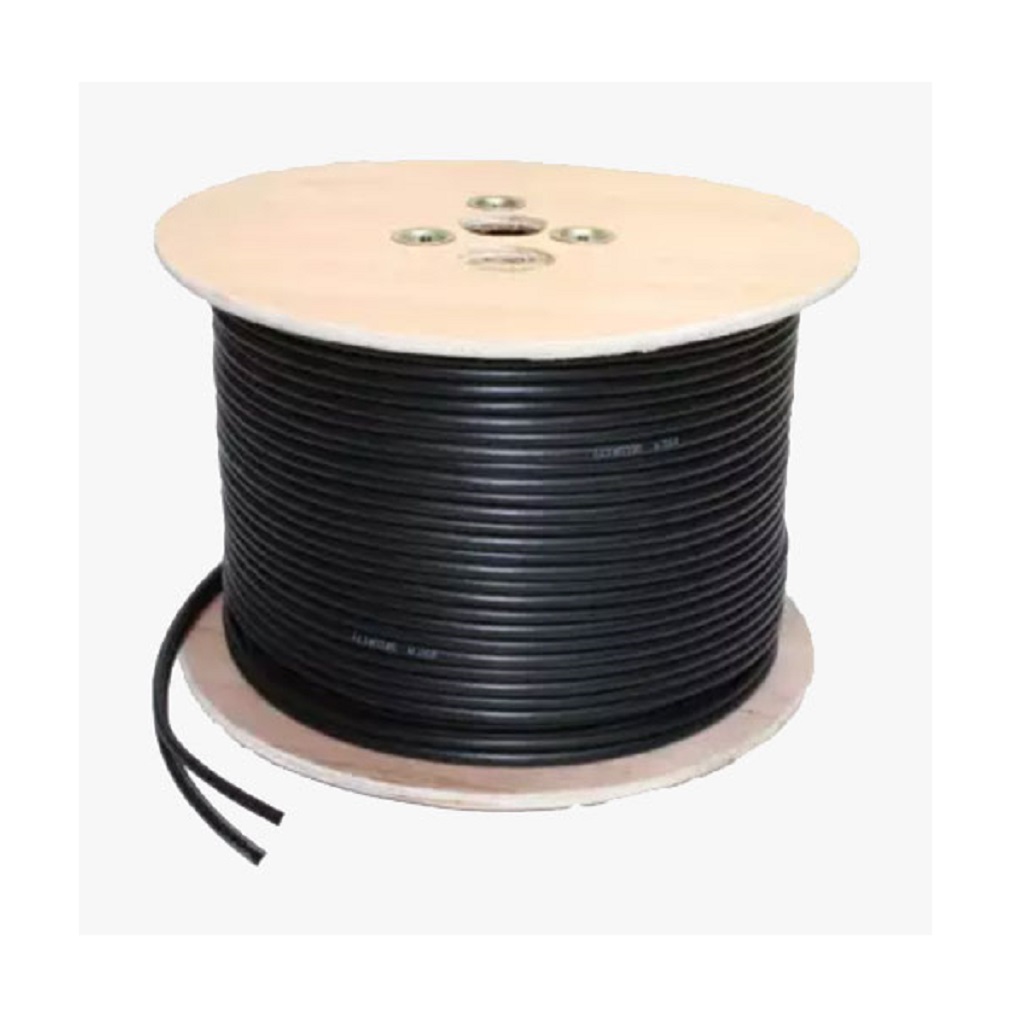

RG 6 COAXIAL CABLE 300 MTR

RG 6 COAXIAL CABLE 300 MTR

Electroline coaxial cable transmits high-frequency electrical signals through connectors without interference. Co-axial Cable comes in types of verities Like RG6, RG11, RG59, It has own qualities in TRI and M model. Every Model has its Specifications according to uses. Coaxial Cable 75 ohm RG 6 used for the distribution of cable TV and satellite TV in residential or DVR.

Features Of RG 6 Coaxial Cable:

Center conductor

• High-density copper
• Nominal diameter- 0.064” (1.63 mm)

Dielectric:

• Gas Expanded Polyethylene
• Nominal Diameter over Dielectric: 0.280” (7.11 mm)

Shield:

• 1st Shield Laminated Aluminum Tape Bonded to the Dielectric
• Nominal Diameter over Tape: 0.287” (7.29 mm)
• 2nd shield: 34 AWG Aluminum Braid wire
• 60% Coverage

Jacket:

• PVC
• Nominal Diameter over Jacket: 0.400” (10.16 mm)
• Nominal Jacket Thickness: 0.042” (1.07 mm)

Electrical Properties:

• Impedance: 75.0 +/-3.0 Ohms
• The velocity of Propagation: 85.0% Nominal
• Structural Return Loss: 5 MHz to 1000 MHz ≥ 20db, 1000MHz to 3000 MHz ≥15db
• Nominal DC Resistance (Ohms/km): Center Conductor: 41.0, Outer Conductor: 22.5
• Attenuation @68 °F (20 °C)

Digi-Mark Solution authorized  distributor of Infilink in Bangladesh. You can buy the RG 6 COAXIAL CABLE at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.
