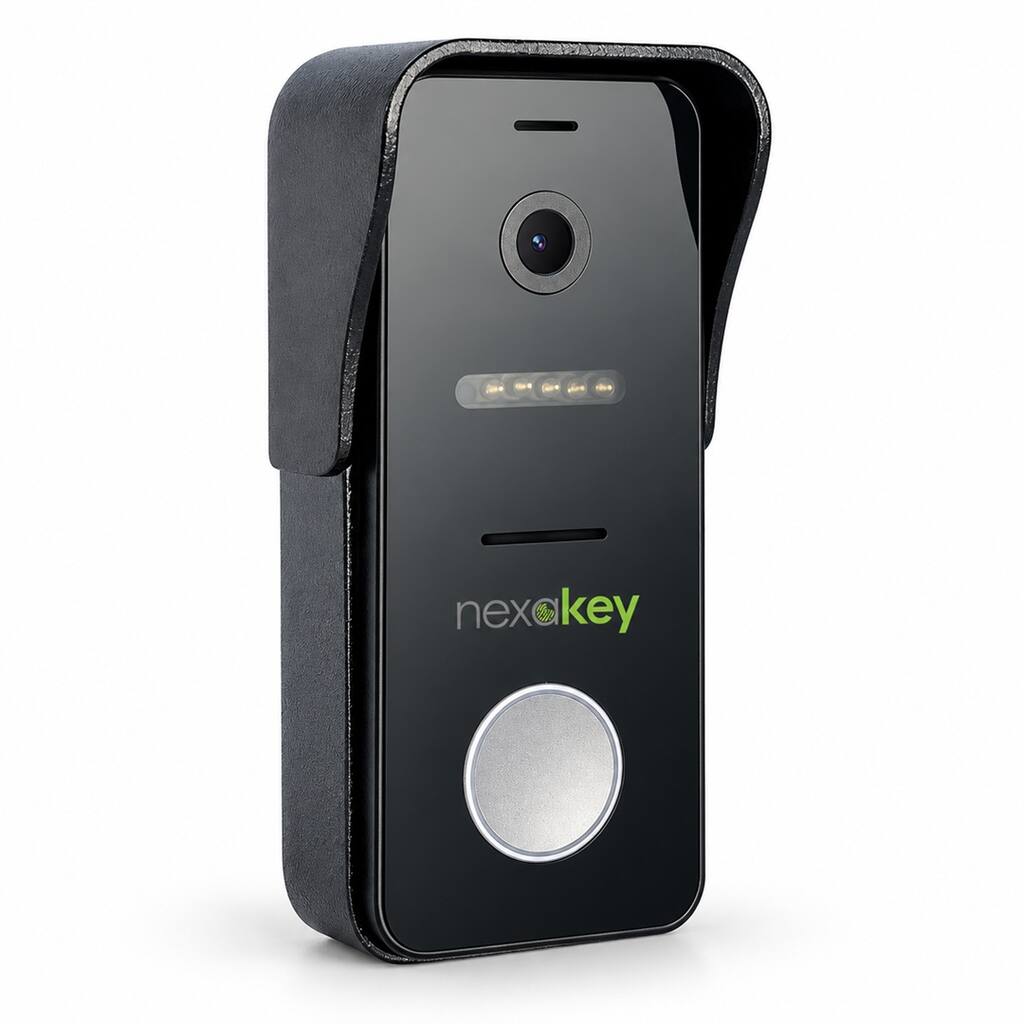

What Is the Nexakey NX-VD570-W 2 MP Outdoor Door Station and When Should You Buy It Separately in Bangladesh?
The Nexakey NX-VD570-W is the 2 MP outdoor door station of the NEXA DOOR video door phone system. It is sold on its own to replace a station, to add a second gate to an existing NEXA DOOR system, or for an integrator building a custom layout. For a new installation, buy it inside the NX-VD570-W-CS kit with the indoor monitor. DigiMark Solution is the exclusive distributor of Nexakey in Bangladesh and supplies the NX-VD570-W to homes, apartment buildings, and offices in Dhaka, Chattogram, and across the country.
Key features
- 148° wide-angle lens, 2 MP, IR-cut night vision
- IP65 aluminium alloy housing, −40 °C to +50 °C
- Exit button input and direct lock output
- Switchable 1080P / 720P / CVBS output
- Rain cover and 35° deviator in the box
Why choose the NX-VD570-W
Wide view of the gate
A 3.2 mm lens gives a 148° angle of view at 2.0 MP. Visitors standing to one side of the door stay in frame.
Clear picture at night
Infrared illumination and an IR-cut filter keep the image readable after dark.
Rated for open weather
The aluminium alloy housing is IP65. It is rated from −40 °C to +50 °C.
Fits angled gate posts
A rain cover and a 35° deviator are in the box.
Direct lock and exit-button control
The station drives a compatible electronic lock and accepts an exit button.
How it works
- The station connects to an NX-VD570-W-MN monitor over a 4-wire link.
- The same link carries video, audio, and power from the monitor.
- Its video output switches between 1080P, 720P, and CVBS.
- A press of the call button rings the monitor and the Nexakey app.
- Unlocking from the monitor or the app releases the lock wired to the station.
Where it is used
Second gate on an existing system
One NEXA DOOR system accepts up to 2 door stations — for example, the main gate and the flat door.
Replacement station
Swap a damaged gate unit without changing the indoor monitor.
Integrator layouts
Build a configuration that a standard kit does not cover.
Price & availability in Bangladesh
The NX-VD570-W is supplied in Bangladesh by DigiMark Solution as an Indent Order item: it is brought in against a confirmed order, and the lead time is confirmed with your quotation. Pricing depends on quantity, the lock and accessories you need, and whether you buy as a reseller or for your own site, so it is issued directly rather than published.
Buy genuine from DigiMark Solution
Exclusive Nexakey distributor in Bangladesh
DigiMark Solution is Nexakey's exclusive distributor in Bangladesh—the source of genuine NEXA DOOR stock and local technical support.
Since 2006, seven branches
DigiMark Solution has supplied security and automation products in Bangladesh since 2006, with branches in Dhaka and Chattogram.
Lock, power and cabling in one quotation
The video door phone, electronic lock, exit button, and backup power are specified together, so the system works on the day it is installed.
Installer and dealer support
System integrators and dealers get technical help with wiring, lock selection, and app setup from DigiMark engineers.
Consider before buying
It needs a monitor
The station does not work on its own. Pair it with the NX-VD570-W-MN, or buy the NX-VD570-W-CS kit.
Check the existing system
It can join a system that is 4-wire and accepts a second door station. Confirm compatibility with DigiMark first.
Fit the rain cover
On an exposed gate in the monsoon, the rain cover is not optional.
Want keyless entry?
The NX-VD770-FMW adds fingerprint, IC card, and PIN unlock with the same camera.
