Nexakey NX-BR735 High-Speed Barrier Price in Bangladesh

Nexakey NX-BR735 0.9s High-Speed Boom Barrier

4.5 · 1 review · Model: NX-BR735

Core Summary

0.9 s high-speed boom barrier for toll, express, and corporate lanes.
Aluminium anti-collision arm, up to 3.5 m.
250 W DC 24 V brushless drive, 8,000,000 cycles.
110–240 V input, IP54, −20 °C to +70 °C, optional UPS.

I AM BUYING AS

QUANTITY REQUIRED

Single unit — installed price available

Outside office hours — we reply by 9:00 AM next working day

Specs & Details

Full Product Information

Last Updated: 01-10-2026

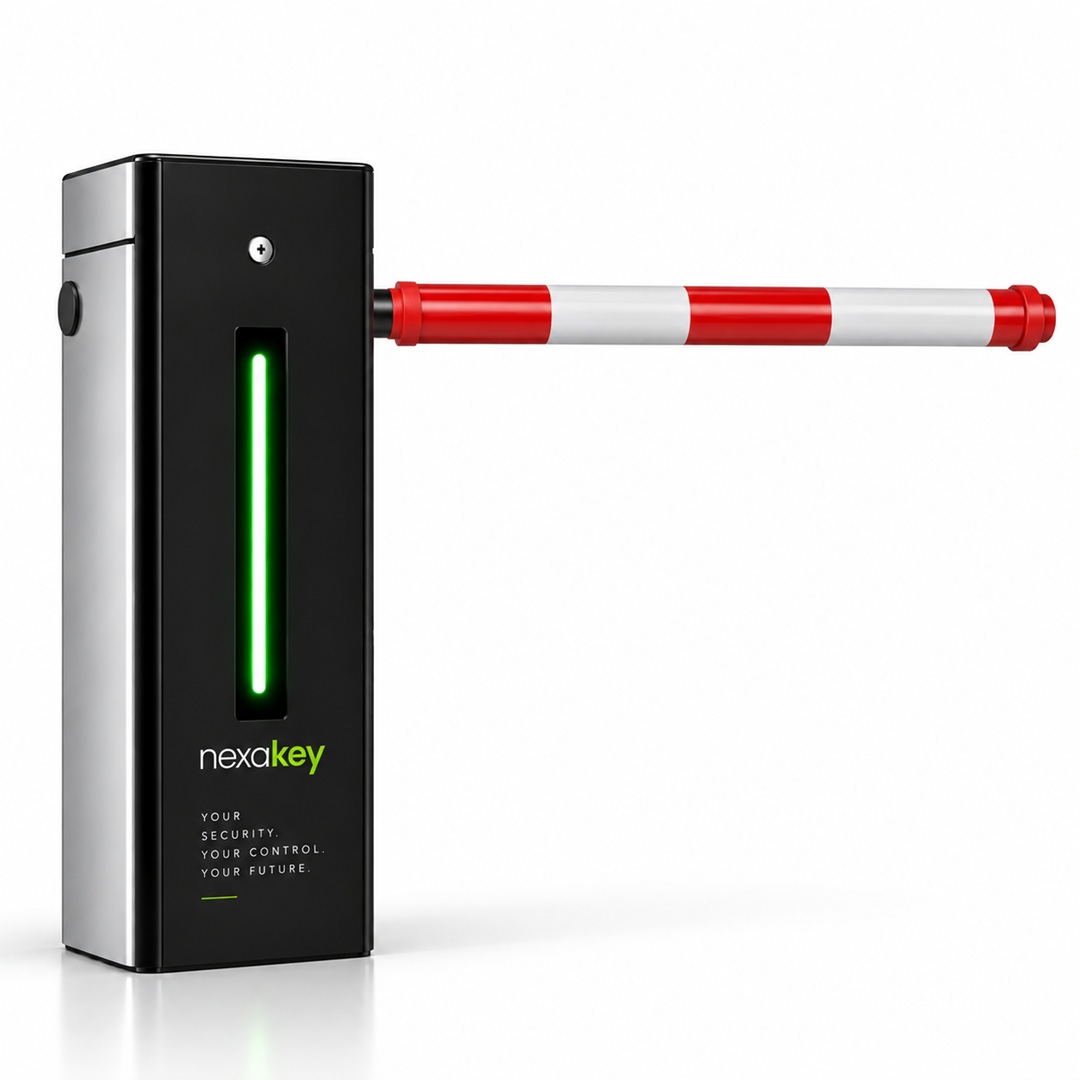

What Is the Nexakey NX-BR735 High-Speed Boom Barrier?

The Nexakey NX-BR735 is a high-speed boom barrier that opens in 0.9 seconds, built for busy corporate lanes and toll and express lanes. It combines an aluminium anti-collision arm of up to 3.5 m with a 250 W DC 24 V brushless drive and an 8,000,000-cycle lifecycle.

0.9 s opening
Arm up to 3.5 m
IP54 protection
110–240 V wide-range input
Dry contact as standard

Why Does a 0.9-Second Boom Barrier Matter?

At a busy gate or toll lane, barrier travel time is the bottleneck, not the reader. Dropping from a 4–6 s cycle to 0.9 s lets one lane clear far more vehicles in the morning peak. The trade-off is arm length: the NX-BR735 tops out at 3.5 m, so it belongs on narrow express lanes, not wide main gates.

Can the NX-BR735 Handle Bangladesh Weather and Load-Shedding?

Yes. The 110–240 V input tolerates unstable supply, and IP54 with a −20 °C to +70 °C range and 20–95% non-condensing humidity covers monsoon and dry-season conditions. Optional UPS backup keeps the gate running during load-shedding, and manual key release is available when no UPS is fitted.

Site the cabinet where run-off does not pool around the base
Keep photocell lenses clean during dry-season dust

Where Can You Install the NX-BR735 Boom Barrier?

It suits narrow, high-frequency lanes where speed decides throughput:

Corporate and office car parks
Toll and express lanes
Shopping malls and commercial basements
Hospitals and clinics
Hotels, resorts, government and defence sites

What Is the NX-BR735 Boom Barrier Price in Bangladesh?

Pricing depends on quantity, configuration, and whether you buy as a reseller or for your own site, so DigiMark Solution issues it by quotation. The NX-BR735 is supplied as an Indent Order item, with lead time confirmed in your quote. Send your lane details and receive a quotation on the same working day.

Why Buy From DigiMark Solution?

DigiMark Solution has supplied security and automation hardware in Bangladesh since 2006 and is a member of BCS and DCCI.

Authorized supply: genuine firmware, correct accessories, and a locally honoured warranty
Local service: spares and support through Dhaka and Chattogram branches, with on-site commissioning
Survey before quote: free site survey covering lane width, cables and power
One accountable supplier: barriers, terminals and software integrated as one system

Buy Genuine from DigiMark Solution

DigiMark Solution has been Bangladesh's authorized Nexakey distributor. Every Nexakey NX-BR735 0.9s High-Speed Boom Barrier is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.

100% Original Firmware Official Manufacturer Warranty Expert Technical Support

SPECIFICATION	NX-BR735	NX-BR360-T
Brand	NexaKey	NexaKey
Model	NX-BR735	NX-BR360-T
Housing dimensions	222 × 300 × 1020 mm	237 × 300 × 1020 mm
Housing material	Painted carbon steel	Painted carbon steel
Movement	Die-cast aluminium alloy, integrated casting	Die-cast aluminium alloy, integrated casting
Transmission	Helical gear drive, carburised gearbox gears	Crank-rocker mechanism, helical gear drive, carburised gearbox gears
Motor	DC 24 V brushless	DC 24 V brushless
Power input	220 V AC ±10%, 50–60 Hz	110–240 V AC, 50/60 Hz
Power consumption	250 W	120 W
Arm type	Aluminium anti-collision straight arm	Telescopic straight arm
Arm length	Up to 3.5 m	6 m
Arm material	N/A	Aluminium alloy with red reflective strips
Opening / closing time	0.9 s	3–6 s
Control interface	N/A	Dry contact (standard); RS485 (optional)
Lifecycle	8,000,000 cycles	8,000,000 cycles
Protection rating	IP54	IP54
Operating temperature	−20 °C to +70 °C	−20 °C to +70 °C
Certification	CE	CE

Attribute / Feature	Specification Details
Brand	NexaKey
Model	NX-BR735
Housing dimensions	222 × 300 × 1020 mm
Housing material	Painted carbon steel
Movement	Die-cast aluminium alloy, integrated casting
Transmission	Helical gear drive, carburised gearbox gears
Motor	DC 24 V brushless
Power input	220 V AC ±10%, 50–60 Hz
Power consumption	250 W
Arm type	Aluminium anti-collision straight arm
Arm length	Up to 3.5 m
Arm material	N/A
Opening / closing time	0.9 s
Control interface	N/A
Lifecycle	8,000,000 cycles
Protection rating	IP54
Operating temperature	−20 °C to +70 °C
Certification	CE

Complete Installation

What else you need for a working Kit

A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.

Nexakey NX-SF310 Infrared Safety Beam for Barriers

Nexakey NX-VR310 79GHz Vehicle Detection Radar

Nexakey NX-RC320 remote control for NEXA GATE boom barriers

Nexakey NX-UHF10 Pro third-generation UHF reader

ZKTeco UHF Hard Tag

Want the complete door kit quoted? Tell us the door type and quantity — we will price every part, not just the terminal.

Get Full Kit Quote

Download Brochure (PDF)

Explore this related video

DigiMark Solution supplies and supports the NEXA GATE range in Bangladesh with local warranty and service through our branch network. We hold spares, and our engineers commission the barrier on site, so you do not have to depend on an overseas supplier for support.

A single barrier on a prepared foundation with power available is typically a one-day job, including commissioning. Add time if the foundation has to be cast, if cable has to be run from a distant panel, or if a loop detector is being cut into the finished road. Our engineers confirm the scope at the site survey.

Without backup, the barrier stops where it is and can be released manually with a key. With the optional UPS battery backup, it keeps operating through the outage. For a gate that must stay controlled during a power cut, specify the UPS at the time of order.

Yes. The barrier accepts a dry contact input as standard and RS485 as an option, so it can be triggered by a UHF long-range reader, an access controller, an ANPR camera, or parking software. The reader is specified separately to suit your read distance and vehicle count.

Measure the clear lane width at its widest point, then allow for where the cabinet can physically be positioned. Choose the arm that spans that distance with margin. If you are between two sizes, take the longer one — an arm cannot be extended after delivery.
