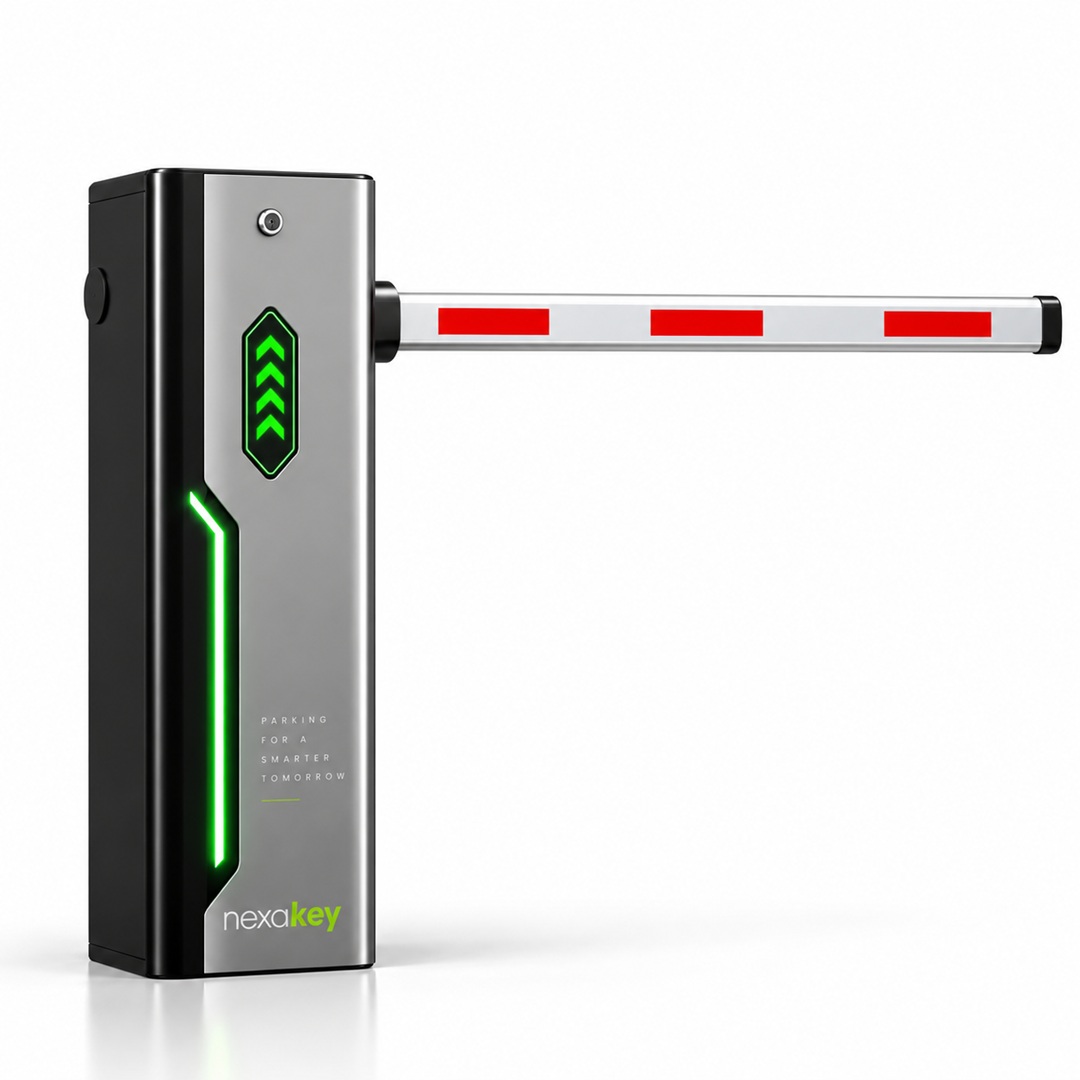

What Is the Nexakey NX-BR360-T Boom Barrier?
The Nexakey NX-BR360-T is a brushless-motor boom barrier with a 6 m telescopic aluminium arm and red reflective strips, built for wide vehicle lanes. It runs on a DC 24 V drive with a rated life of 8,000,000 cycles and an adjustable arm travel time of 3–6 seconds.
- 110–240 V wide-range input
- Dry contact standard, RS485 optional
- Arm types: telescopic, fence, or folding
Why Does the NX-BR360-T Suit Bangladeshi Gates?
It is built for high-frequency, harsh-condition gates. The 110–240 V input tolerates unstable supply, and the IP54 rating and −20 °C to +70 °C range cover monsoon and dry-season heat. Operating humidity is 20–95% non-condensing, and the unit is CE certified.
- Dry contact integrates with most readers and controllers
- Optional UPS backup keeps the gate working through load-shedding
- Manual key release is available when no UPS is fitted
Where Can You Use the NX-BR360-T Boom Barrier?
The NX-BR360-T suits any gate with a wide vehicle lane that needs controlled entry and exit. Typical sites include:
- Apartments and gated communities
- Corporate and office car parks
- Factories, RMG units and EPZ gates
- Hospitals, malls and commercial basements
- Hotels, resorts, government and defence sites
Which Boom Barrier Arm Should You Choose?
Choose the arm by lane conditions, not price. The arm must clear the full lane width, so measure the widest point and add clearance before choosing a 4 m, 4.5 m, or 6 m arm. An arm that is too short cannot be extended later.
- Telescopic: ships shorter, so it is easier to install on retrofit sites with tight access.
- Fence: physically blocks pedestrians and motorbikes, so it is standard for factory and RMG gates.
- Folding: articulates at 90°, so it fits basement ramps and low ceilings.
What Is the NX-BR360-T Price in Bangladesh?
Pricing depends on quantity, configuration, and whether you buy as a reseller or for your own site, so DigiMark Solution issues it by quotation. The NX-BR360-T is supplied as an Indent Order item, and lead time and configuration are confirmed with your quote. Send your lane details, and we will send the quotation on the same working day.
Why Buy From DigiMark Solution?
DigiMark Solution has supplied security and automation hardware in Bangladesh since 2006 and is a member of BCS and DCCI.
- Authorized supply: genuine firmware, correct accessories, and a locally honoured warranty.
- Local service: spares and support through our Dhaka and Chattogram branches, with on-site commissioning.
- Survey before quote: free site survey for lane width, clearance, cable routes, and power.
- One accountable supplier: barriers, terminals, guidance, and software integrated as one system.
