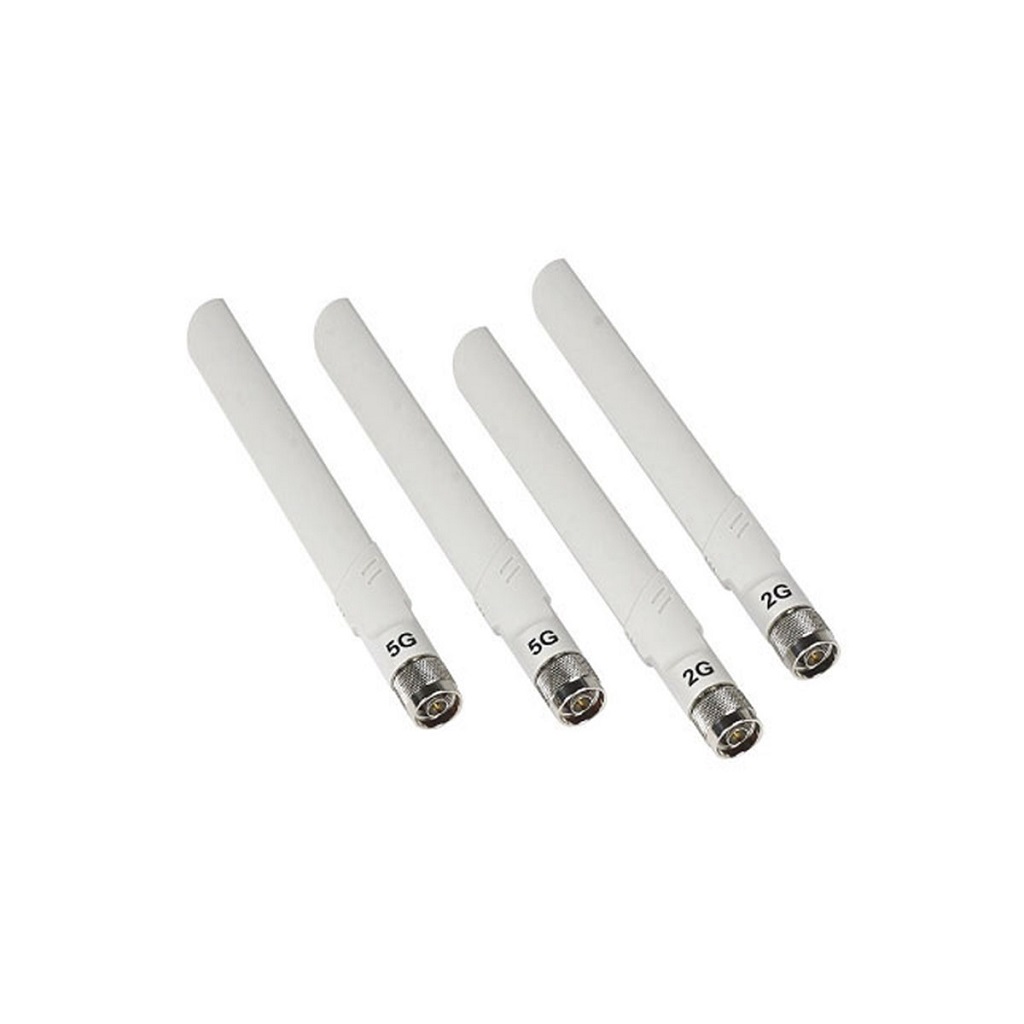

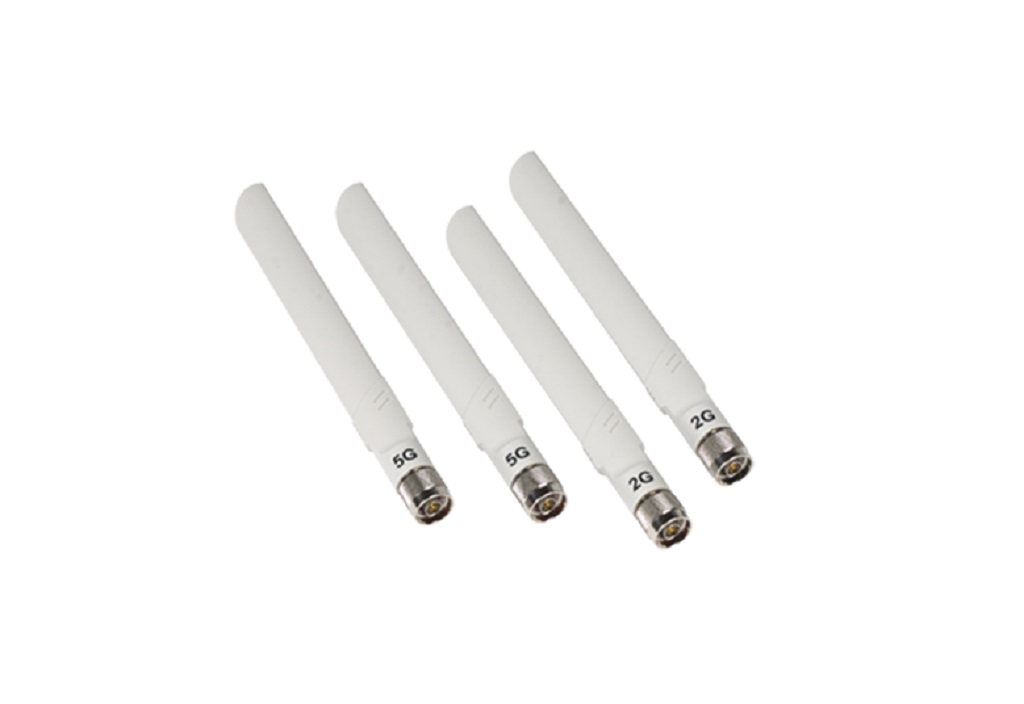

Netgear ANT24501B ProSafe Outdoor Dual Band Omni Antenna Bundle Kit used with WND930 Access Point
Each bundle kit comes with 2 2.4 GHz (5 dBi) and 2 5 GHz (7 dBi) antennas. Optimal for providing omnidirectional wireless access with the WND930 Outdoor Access Point. Leveraging the internal directional antenna for point-to-point mesh while providing wireless client access around the Outdoor Access Point with the ANT24501B antenna bundle.
The ANT24501B antenna bundles provide Omnidirectional access with an extended range for client connectivity in a hotspot deployment scenario. Simply connect the 2.4 and 5 GHz antennas to the WND930 Outdoor Access Point to achieve optimum performance at wireless 802.11n speeds. Each antenna bundle comes with 2 units of 2.4 GHz antennas (5 dBi) and 2 units of 5 GHz antennas (7 dBi). The small form factor of the lightweight antennas allows the installation to be simple and intuitive. The ANT24501B antenna bundle is rated to operate in outdoor deployment in extreme environmental conditions that match the specifications of the WND930 Outdoor Access Point.
NETGEAR ProSafe® line of antennas and accessories for 802.11b, 802.11g and 802.11n devices gives you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and Omnidirectional antennas, indoor and outdoor options, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.
To install your antennas:
Remove the end caps from the antenna ports on the access point.
Connect the antennas marked 5G to the 5G antenna connectors.
Connect the antennas marked 2.4G to the 2.4G antenna connectors.
Log in to the access point. For more information about logging into the WND930, see the installation guide.
Configure the access point to use the external antennas. For more information about configuring the access point, see the WND930 reference manual.
Digi-Mark Solution authorized distributor of Netgear-ant24501b-access-point in Bangladesh. You can buy the Netgear-ant24501b-access-point at the best dealer price from our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, and Chittagong (Chattogram) showrooms. For the lowest dealer and best price, Contact Us at 01979-234344.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized Netgear distributor. Every Netgear ANT24501B ProSafe Outdoor Dual Band Omni Antenna Bundle Kit is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION
ANT24501B
Dimensions
215 x 22 x 11 mm
Weight
200 g
Wireless frequency
2.4 to 2.5 GHz and 4.9 to 5.85 GHz
Wireless standards
802.11 a/b/g/n
Others
Gain : 5 dBi (2.4 GHz) and 7 dBi (5 GHz)
Beam Width : Horizontal 360 o Vertical 11 o
Polarization : Linear; Vertical
Attribute / Feature
Specification Details
Dimensions
215 x 22 x 11 mm
Weight
200 g
Wireless frequency
2.4 to 2.5 GHz and 4.9 to 5.85 GHz
Wireless standards
802.11 a/b/g/n
Others
Gain : 5 dBi (2.4 GHz) and 7 dBi (5 GHz)
Beam Width : Horizontal 360 o Vertical 11 o
Polarization : Linear; Vertical
