Model
|

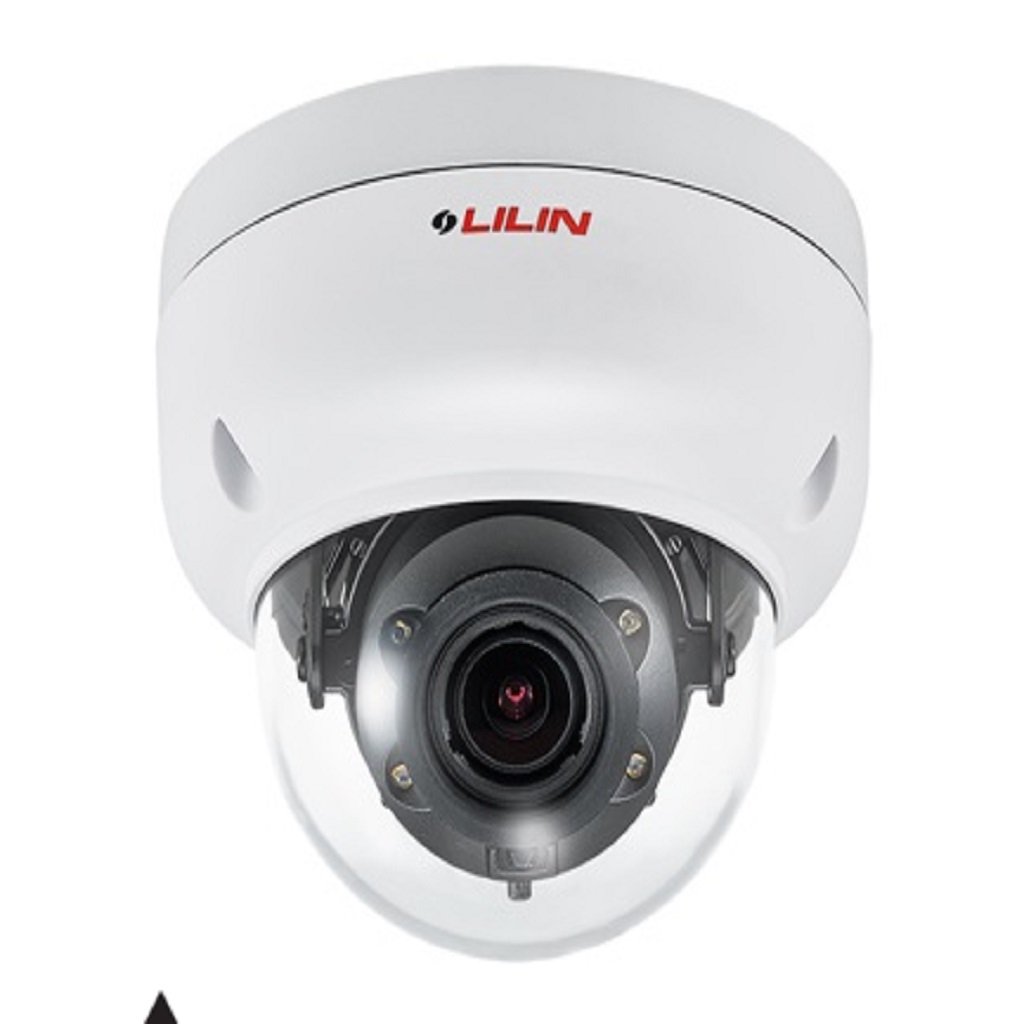

MR6442AX
|
|
Image Sensor/Sensor type
|
1/3" CMOS image sensor
|
|
Effective pixels
|
2688(H) x 1520 (V) = 4,085,760 pixels
|
|
Video Compression
|
H.264 High/Main Profile, Motion JPEG
|
|
Resolution
|
4MP(2688 x 1520) , 1080p(1920 x 1080) , 1280x960(1280 x 960) , 720P(1280 x 720) , D1(720 x 480, 720 x 576) , VGA(640 x 480) , CIF(352 X 240)
|
|
Frame Rates
|
H.264 : up to 20 FPS @ 2688 x 1520, up to 30 FPS @ 1920 x1080 / MJPEG : up to 20 FPS @ 2688 x 1520, up to 30 FPS @ 1920 x1080
|
|
Lens
|
2.8 – 12mm
|
|
Iris
|
F1.4
|
|
Angle of View
|
(H)95°– 33°(V)51°– 18°(D)109°– 38°
|
|
Max IR distance
|
30m
|
|
Infrared LED Angle
|
60°, 90°
|
|
Video streaming
|
RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth
|
|
Video bitrate
|
128Kbps – 12Mbps ; Frame rate and bit rate controllable on-the-fly VBR / CBR / GOP supported ; Fixed bitrate, Smart H.264
|
|
Peak wavelength
|
850nm
|
|
Scanning System
|
Progressive scan
|
|
IR cut filter
|
Color (Day), Monochrome (Night), Auto, Schedule
|
|
Min. illumination/Low Light Mode (Colour)
|
0.21 Lux at F1.4 (Color) , 0.045 Lux at F1.4 (B/W) ; With Infrared LED 0 Lux
|
|
White Balance
|
Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2
|
|
Back Light Compensation (BLC)
|
On / Off
|
|
Shutter Time
|
1/30(1/25)s to 1/20000s
|
|
Sense Up
|
Off / 1 frame / 2 frames
|
|
Sense Up+
|
Yes
|
|
Auto Gain Control
|
36 dB variable gain
|
|
3D Noise Reduction
|
Off / 1 to 32 selectable
|
|
2D WDR
|
Off / Auto / x2 / x3 / x4 (by normal mode)
|
|
High Dynamic Range(HDR)
|
Up to 100dB (by HDR mode, 2 shutter line interleave)
|
|
Privacy Masking
|
Off / On (4 independent areas)
|
|
Other functions
|
Sharpness, Hue, Image flip, Image mirror
|
|
Lens distorsion correction (LDC)
|
Yes
|
|
Live video
|
CVBS 1.0Vp-p, 75 ohm, connector
|
|
Audio Input / Output
|
Mono, 1.98Vp-p, Terminal block
|
|
Encryption
|
Base64 HTTP encryption / Digest
|
|
Access
|
Multiple user access levels with password protection
|
|
User accounts
|
10 user accounts available
|
|
IP address filter
|
Yes
|
|
Multi IP address
|
Yes
|
|
Users
|
10 simultaneous users
|
|
OSD (On-Screen Display)
|
Text overly for date, time , and camera name
|
|
IVS (Intelligent Video Surveillance)
|
Advanced motion detection, Tripwire detection, Semaphore + Tripwire detection, Object counting
|
|
Alarm event triggers
|
Motion/Tamper/Audio/Network lost detection
|
|
Alarm event actions
|
FTP,SMTP, HTTP post, SD card, SAMBA
|
|
CPU
|
Embedded SoC ARM Cortex-A9, 600MHz, 256MB DDR3, 256MB flash memory
|
|
Firmware
|
Firmware upgrade via HTTP, and IP Scan
|
|
Network Interface/Ethernet
|
10Base-T / 100Base-TX, RJ-45
|
|
CE
|
Yes
|
|
FCC
|
Yes FCC EMI CLASS B
|
|
OS requirement
|
Windows 7, Windows 8, Windows 10
|
|
Web browser
|
Microsoft® Internet Explorer® 9.0 and later
|
|
CPU requirement
|
Intel i3 or above
|
|
RAM requirement
|
4GB or above, dedicated graphics card
|
|
Protocols
|
IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP , SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SDDP, Bonjour
|
|
Mobile phone
|
Integrated to LILIN mobile app (LILIN Viewer) iPhone, iPad, Android support
|
|
Video Management
|
ONVIF Profile S / LILIN Navigator Enterprise 1.0 and 2.0 / Third party VMS through LILIN HTTP API
|
|
Video Display
|
LILIN Universal ActiveX , LILIN Java Applet & HTML5
|
|
Languages
|
English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese
|
|
OS
|
Embedded Linux 3.10
|
|
Audio
|
2-way audio supported , G.711 / PCM
|
|
SD Card (recording)
|
Support Micro SD/SDHC/SDXC (up to 128GB) card for circular recording (card is not included)
|
|
Alarm Input / output
|
Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load max. 40VDC/300mA), Terminal block
|
|
IP Rating
|
IP66 waterproof
|
|
Vandal Resistant Rating / IK Rating
|
IK10
|
|
Operating temperature
|
-40°C – +50°C (-40°F – 122°F)
|
|
Dimensions
|
Ø120mm x 106mm
|
|
Weight
|
720g approx.
|
|
Power Supply
|
DC12V ±10% , Power over Ethernet (IEEE 802.3af compliant)
|
|
PoE
|
IEEE 802.3af
|
|
Power Consumption
|
DC12V, 5.6W / PoE, 7.2W
|
