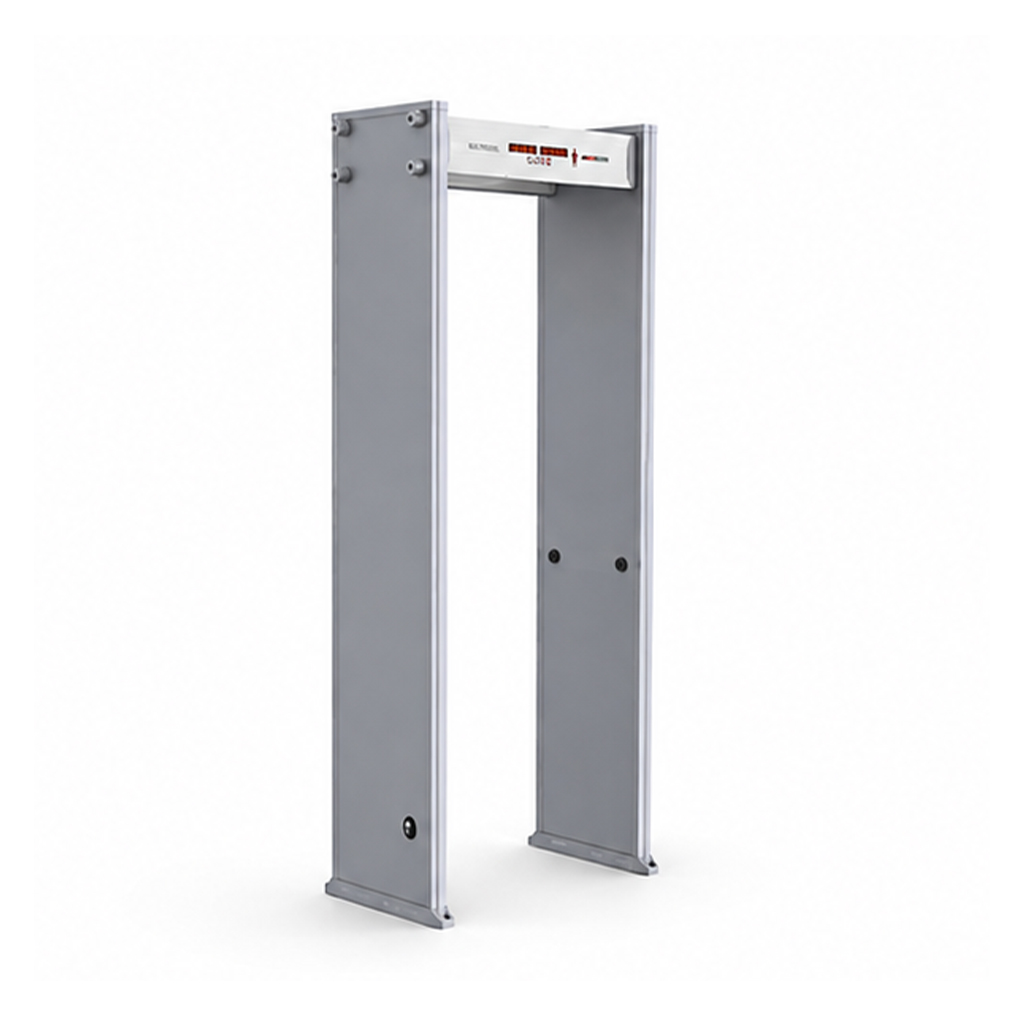

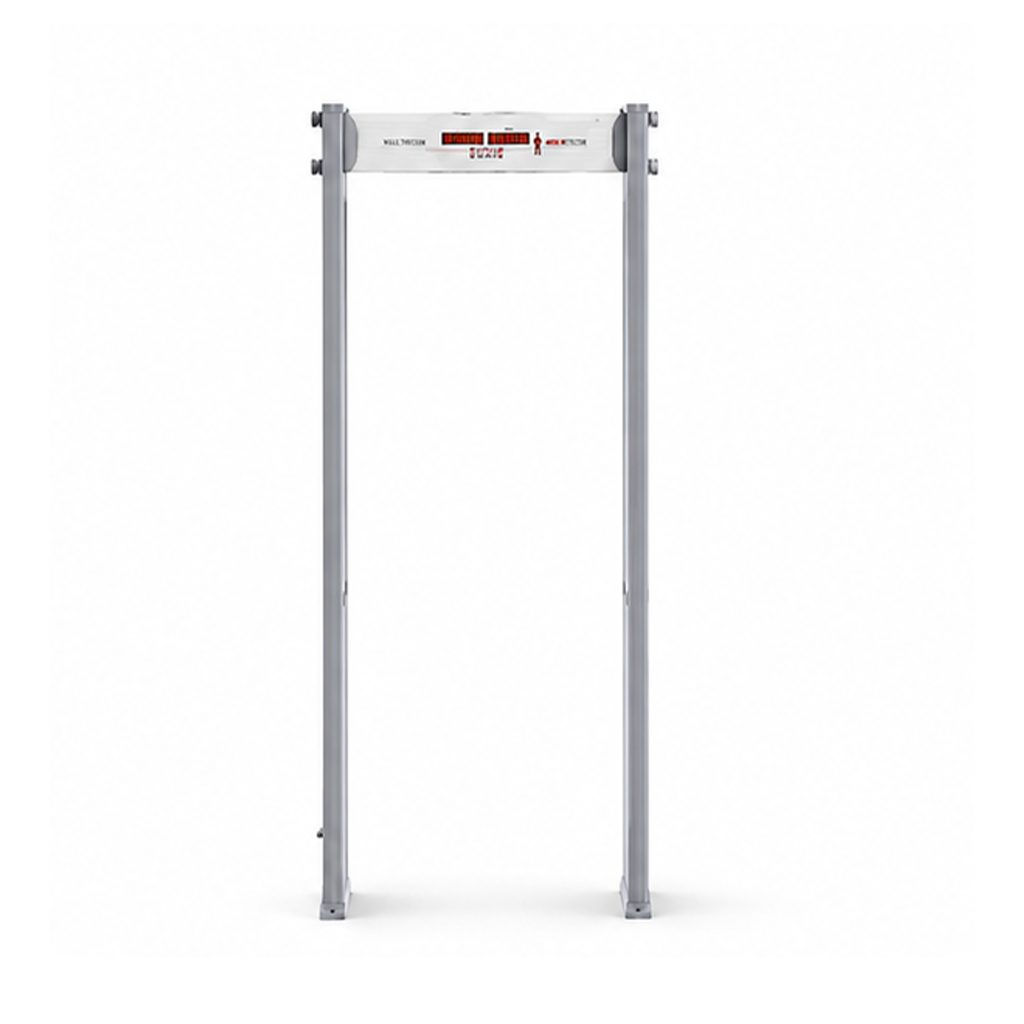

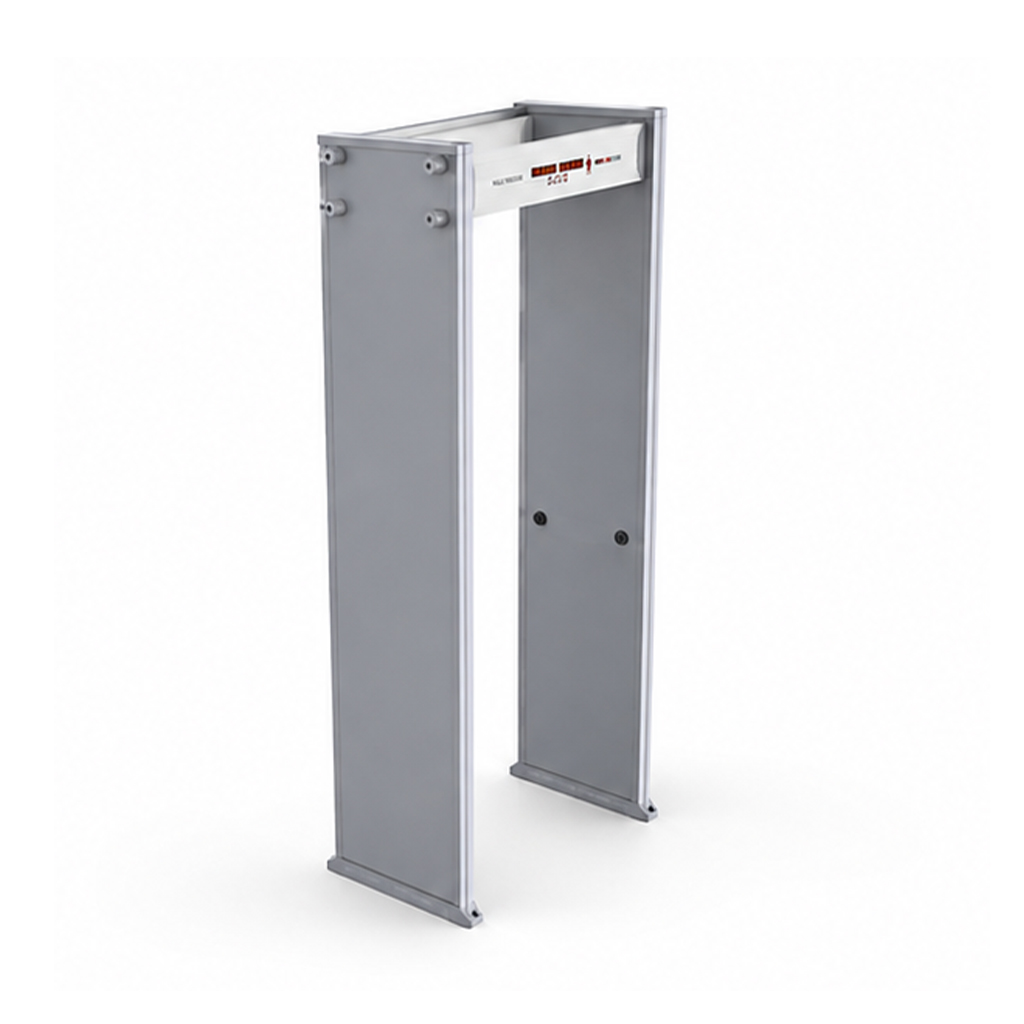

Hikvision ISD-SMG111 — 11 Zone Walk-Through Metal Detector in Bangladesh
The Hikvision ISD-SMG111 is an 11-zone walk-through metal detector distributed in Bangladesh by DigiMark Solution as the Authorized Distributor of Hikvision. Every unit is imported through official channels with original firmware and manufacturer warranty.
It detects metal objects as small as a coin (approx. 25mm diameter), with sensitivity adjustable across 255 levels and detection frequency adjustable to reduce environmental interference. Built-in bilateral infrared sensors count people passing through, and the system runs a self-diagnostic check every time it powers on.
Where it is used in Bangladesh
Shopping malls & retail centers — screening at main entrances during peak footfall
Hotels — lobby-level security screening for guests and visitors
Corporate offices — checkpoint screening for staff and visitor entry
Government & public buildings — routine entry screening
Event venues — temporary or permanent checkpoint setup for gatherings
What else you need for a complete checkpoint
The detector alone screens for metal, but a working security checkpoint typically also needs a handheld metal detector for secondary/manual checks, a baggage X-ray scanner for bag screening, and a regulated power supply. If you only need archway screening without bag checks, you can skip the additional equipment.
Price in Bangladesh
Quoted per requirement, since single-unit, dealer, and project/bulk rates differ. Request a quotation or WhatsApp +880 1979-234342.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized HIKVISION distributor. Every Hikvision ISD-SMG111 Walk-Through Metal Detector is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION
ISD-SMG111
Brand
Hikvision
Model
ISD-SMG111-NW(O-STD)
Product Type
Walk through metal detector
Tunnel Size
2024mm(H) × 734mm(W) × 405mm(D)
Dimension
2205mm(H) × 852mm(W) × 478mm(D)
ackage Size
2244mm(L) × 516mm(W) × 230mm(H)
Detection Accuracy
One coin size (approx. φ25mm) metal
Detection Zones
11
Sensitivity Levels
255
Log In Method
Password
Control Method
utton
Display
LED segment display
Zone Alarm Indicator
LED lamp
Power Interface
1 x DC power interface
Power Supply
Adapter Output: DC 15V, 4A; Adapter Input: AC 100V–240V, 50/60Hz
Power Consumption
Max. 10W
Operating Temp / Humidity
-20°C to 45°C / 0% to 95% (non-condensing)
Safety Protection
IP41
Weight
Net: approx. 35kg; Gross: approx. 40kg
Attribute / Feature
Specification Details
Brand
Hikvision
Model
ISD-SMG111-NW(O-STD)
Product Type
Walk through metal detector
Tunnel Size
2024mm(H) × 734mm(W) × 405mm(D)
Dimension
2205mm(H) × 852mm(W) × 478mm(D)
ackage Size
2244mm(L) × 516mm(W) × 230mm(H)
Detection Accuracy
One coin size (approx. φ25mm) metal
Detection Zones
11
Sensitivity Levels
255
Log In Method
Password
Control Method
utton
Display
LED segment display
Zone Alarm Indicator
LED lamp
Power Interface
1 x DC power interface
Power Supply
Adapter Output: DC 15V, 4A; Adapter Input: AC 100V–240V, 50/60Hz
Power Consumption
Max. 10W
Operating Temp / Humidity
-20°C to 45°C / 0% to 95% (non-condensing)
Safety Protection
IP41
Weight
Net: approx. 35kg; Gross: approx. 40kg
Complete Installation
What else you need for a working Kit
A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.
Pricing depends on quantity and whether you need add-ons like a handheld detector or X-ray scanner. WhatsApp +880 1979-234342 for a same-day quote.
It has 11 detection zones, letting the system indicate roughly where on the body metal was detected rather than a single generic alarm — useful for faster manual follow-up checks.
Yes. Bilateral infrared sensors automatically count footfall through the gate, which is useful for entrance traffic reporting alongside security screening.
Sensitivity is adjustable across 255 levels, so it can be tuned to the environment — lower sensitivity reduces false alarms from small everyday metal items while still catching larger threats.
It carries an IP41 rating, which protects against limited dust and dripping water — suitable for covered or indoor checkpoints, not open outdoor exposure. For outdoor gates, ask us about higher IP-rated models in the Hikvision range.
