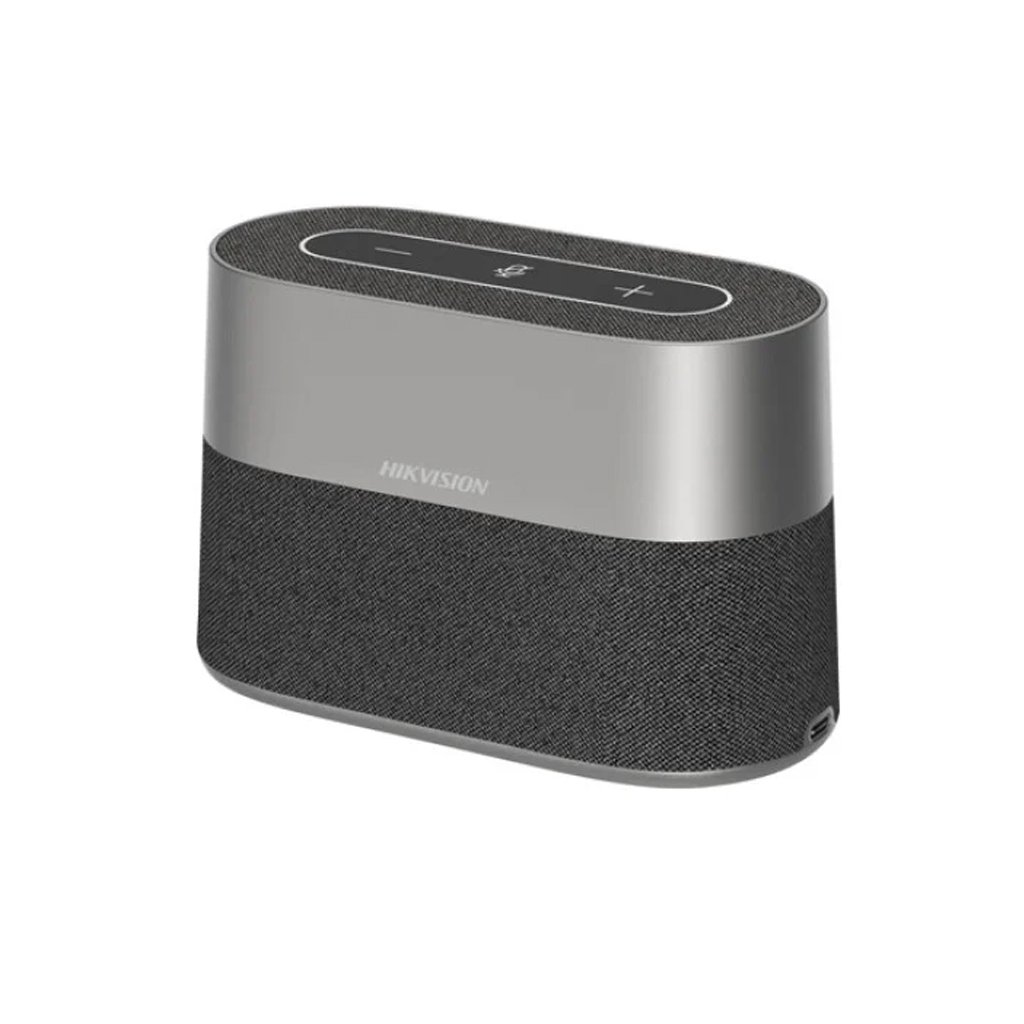

Hikvision DS-UAC-S1V Sound Cube Speakerphone
Hikvision DS-UAC-S1V Sound Cube Speakerphone for Conference is a cutting-edge audio device designed to elevate your conferencing experience with its remarkable features. Equipped with an array of advanced technologies, this conference speakerphone ensures crystal-clear audio quality and seamless communication. At its core, the DS-UAC-S1V boasts a top-tier microphone setup. It employs MEMS (Micro-Electro-Mechanical Systems) microphones, featuring an impressive 360° omni-directional pickup pattern, enabling it to capture audio from all directions within a radius of up to 5 meters. With eight microphones in total, this speakerphone offers exceptional sensitivity (-38 dBV/Pa) and a high signal-to-noise ratio (SNR) of 85 dB, resulting in pristine audio capture. The multiple sampling rate options (16 kHz/32 kHz/48 kHz) and a dynamic range of 102 dB further ensure that no audio nuances are missed, while the Acoustic Overload Point (AOP) of 130 dBSPL prevents distortion even in loud environments. This speakerphone also includes specialized functions such as beamforming and the 3A Algorithm, which encompasses Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), and Automatic Gain Control (AGC). These algorithms work harmoniously to eliminate echoes, suppress background noise, and maintain consistent volume levels, guaranteeing unparalleled audio clarity.
On the output side, the built-in speaker delivers exceptional performance. With a rated power of 3W, it can reach a maximum output loudness of 81 dBSPL at 1 meter and cover an effective bandwidth from 150 Hz to 15 kHz with minimal distortion (<1% at 1 kHz). The speaker's omnidirectional direction ensures that sound is evenly distributed throughout the room, making it suitable for various conference setups. The DS-UAC-S1V also offers convenient features, such as steady and transient noise reduction, echo and squeal suppression, and anti-reverberation to enhance speech quality. Its LED indicator provides clear status updates, with white indicating normal operation, red for mute, and green for speaker volume adjustments. For connectivity, this speakerphone utilizes a USB cable with a 2-meter length, making it compatible with a wide range of systems, including Windows XP/7/8/10/11, Android 8.1 and above, Linux 4.14 and above, and macOS 10.12 and above. In terms of power, it operates on 5VDC with a low maximum power consumption of 4.8W, ensuring energy efficiency. The device can function smoothly within an operating temperature range of -10°C to 45°C and 90% or less humidity. With its sleek silver-gray design, compact dimensions (142.2mm × 93.9mm × 69.2mm), and comprehensive package contents, including the speakerphone, USB cable, and Quick Start Guide, the Hikvision DS-UAC-S1V Sound Cube Speakerphone for Conference is the ultimate solution for professional conferencing needs, providing exceptional audio quality and ease of use.
