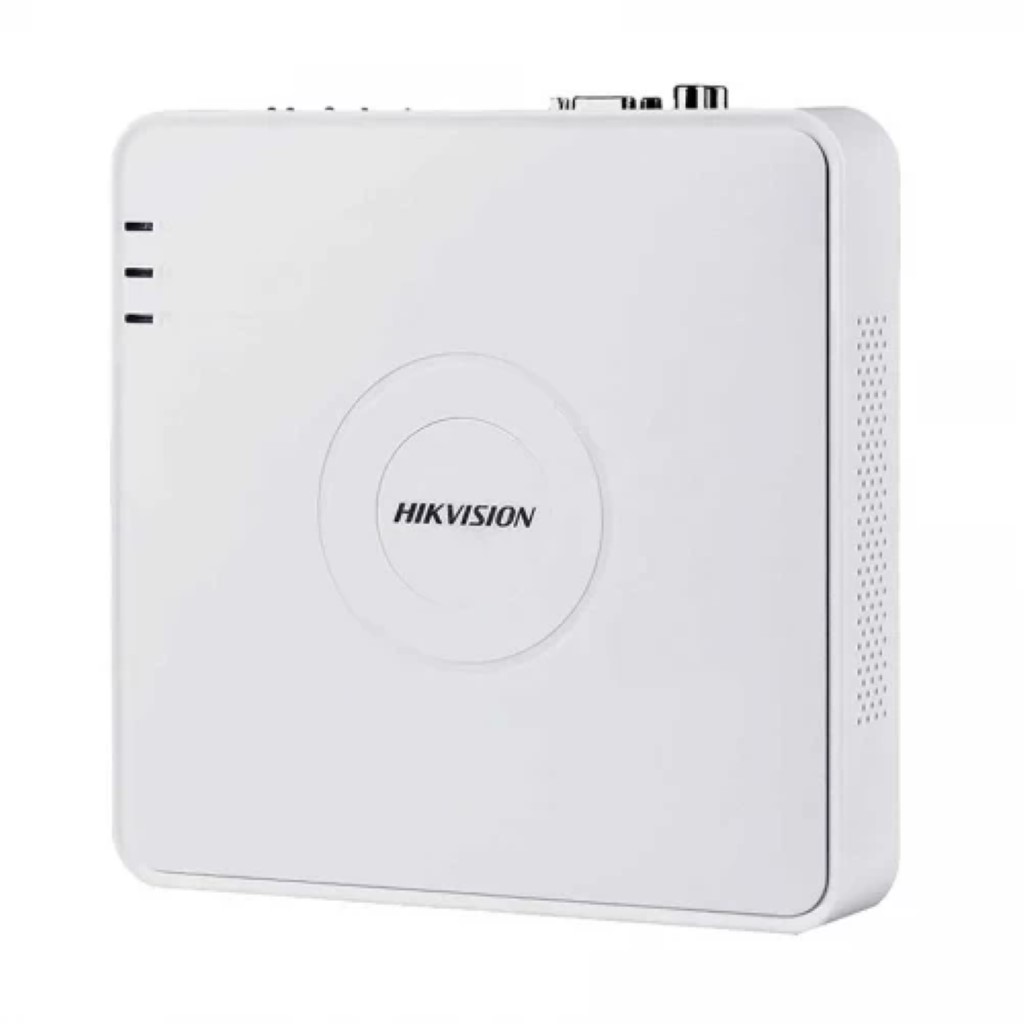

Hikvision DS-7104HGHI-K1 04 Channel HD 1080p Lite Mini DVR

4.5 · 1 review · Model: DS-7104HGHI-K1

Core Summary

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 5-ch IP camera inputs (up to 2 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal

I AM BUYING AS

QUANTITY REQUIRED

Single unit — installed price available

Outside office hours — we reply by 9:00 AM next working day

Specs & Details

Full Product Information

Last Updated: 09-09-2023

Features of Hikvision DS-7104HGHI-K1 DVR/NVR/XVR In Bangladesh

Brand - Hikvision, Model - Hikvision DS-7104HGHI-K1, Type - Mini DVR, Number of Input Channel - 04 Channel, Video Compression/Format - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264, Video Output (VGA) - 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, Video Output (HDMI) - 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, Video Recording Res. - 1080p, IP Video Input - 1-ch (up to 5-ch), Up to 1080p resolution, Support H.265+/H.265/H.264+/H.264 IP cameras, Analog & HD-TVI Video Input - 4-ch, BNC interface (1.0 Vp-p), supporting coaxitron connection, Audio Input Channel (RCA) - 1-ch RCA, Audio Compression - G.711u, Audio Output Channel - 1-ch, Two way Audio - Reuse the first audio input, Audio Bit Rate - 64 Kbps, Frame Rate - (Main stream) For 1080p stream access: 1080Plite/720Plite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N), For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N), For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), (Sub-stream) 4CIF@15fps CIF/QVGA@25 fps (P)/30 fps (N), Stream Type - Video, Video & Audio, Synchronous Playback - 4-ch, Network Protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, Number HDD Interface (SATA) - 1 SATA, Max HDD Support (GB,TB) - 4TB, Network Interface (RJ45) - 1, RJ45 10/100 Mbps self-adaptive Ethernet interface, USB Port - 2 x USB 2.0, Remote Connections - 32, CVBS Input - Support, Power Supply - 12 VDC, 1.5 A, Power Consumption - <- 16 W, Dimension - 200 x 200 x 45mm, Weight (Kg) - 0.8kg, Others - AHD Input: 1080p25, 1080p30, 720p25, 720p30. HDCVI Input: 1080p25, 1080p30, 720p25, 720p30. Total Bandwidth: 64Mbps, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China

What is the price of Hikvision DS-7104HGHI-K1 DVR/NVR/XVR In Bangladesh?

The price of Hikvision DS-7104HGHI-K1 DVR/NVR/XVR starts from 3,300 . The price may vary due to your customization and product availability. You can buy Hikvision DS-7104HGHI-K1 DVR/NVR/XVR from our website or visit our showrooms nearby.

Buy Genuine from DigiMark Solution

DigiMark Solution has been Bangladesh's authorized HIKVISION distributor. Every Hikvision DS-7104HGHI-K1 04 Channel HD 1080p Lite Mini DVR is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.

100% Original Firmware Official Manufacturer Warranty Expert Technical Support

SPECIFICATION	DS-7104HGHI-K1
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate	Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 4 Mbps
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
IP Video Input	1-ch (up to 5-ch) Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input	1080p25, 1080p30, 720p25, 720p30
AHD Input	1080p25, 1080p30, 720p25, 720p30
HDCVI Input	1080p25, 1080p30, 720p25, 720p30
CVBS Input	Support
HDMI Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA simultaneous output
Audio Input	1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	Reuse the first audio input
Synchronous Playback	4-ch
Total Bandwidth	64 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote Connection	32
Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
SATA	1 SATA interface
Capacity	Up to 4 TB capacity for each disk
USB Interface	Rear panel: 2 × USB 2.0
Alarm In/Out	N/A
Power Supply	12 VDC, 1.5 A
Consumption	≤ 16 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight	≤ 0.8 kg (without HDD, 1.8 lb.)

Attribute / Feature	Specification Details
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate	Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 4 Mbps
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
IP Video Input	1-ch (up to 5-ch) Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input	1080p25, 1080p30, 720p25, 720p30
AHD Input	1080p25, 1080p30, 720p25, 720p30
HDCVI Input	1080p25, 1080p30, 720p25, 720p30
CVBS Input	Support
HDMI Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA simultaneous output
Audio Input	1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	Reuse the first audio input
Synchronous Playback	4-ch
Total Bandwidth	64 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote Connection	32
Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
SATA	1 SATA interface
Capacity	Up to 4 TB capacity for each disk
USB Interface	Rear panel: 2 × USB 2.0
Alarm In/Out	N/A
Power Supply	12 VDC, 1.5 A
Consumption	≤ 16 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight	≤ 0.8 kg (without HDD, 1.8 lb.)
