Security Surveillance HDMI SPLITTER MT-SP104M 4 PORT

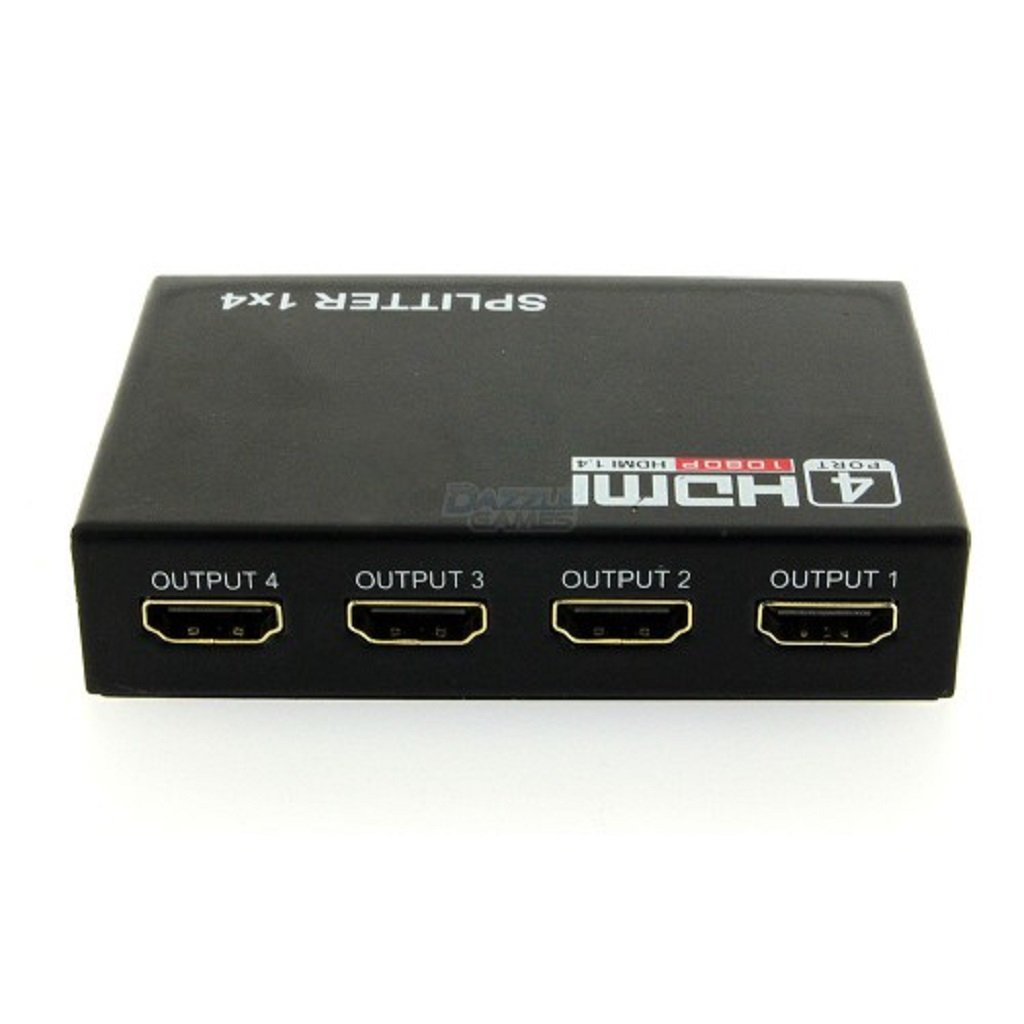

HDMI SPLITTER MT-SP104M 4 PORT
HDMI SPLITTER MT-SP104M 4 PORT
HDMI SPLITTER MT-SP104M 4 PORT
not inserted
Price 0
Discount 0
Status In stock
Product Code PR00603
Brand Infilink
Features

    • Model: HDMI SPLITTER 4 PORT
    • Support HDMI1.3b
    • Highest video resolution 1080p
    • High performance up to 2.25Gbps

Hotline: 01979234344 | Corporate: 01979234316
No Brochure
Share On :
HDMI SPLITTER MT-SP104M 4 PORT

Features

  • Model: Hdmi Splitter 4 Port
  • Support Hdmi1.3b
  • Highest Video Resolution 1080p
  • High Performance Up to 2.25gbps
  • Dolby Digital

HDMI SPLITTER 4 PORT

  • Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter. Support HDMI1.3b
  • Support highest video resolution 1080p High performance up to 2.25Gbps
  • Support uncompressed audio such as LPCM Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD) Support 3D



Specifications
Input interface 1 HDMI
Output interface 4 HDMI
Maximum Signal Link Range Up to 4K*2K@30Hz
Video format supported VGA: 640*480, 800*600, 1024*768, 1280*1024, 1600*1280, 1920*1080, 1920*1440. DTV/HDTV: 480i/ 576i/ 480p/ 576p/ 720p/ 1080i/ 1080p
Output Video HDMI1.4b+ HDCP1.0/1.1
Vertical frequency range 60Hz
Input DDC Signal 5 volts p-p(TTL)
Input Video Signal 0.5- 1.0 volts p-p
Video Amplifier Bandwidth 140MHz
Operation humidity range 5 to 90% RH
Operation temperature range -45° to 80 °
Power DC5V 1A
