- Installation type: hanging mounted/surface mounted
- Operating: fail-safe and locked when energized
- Unlocking way: unlock when power-off
- Door type: single door
- Suitable for wooden, metal, glass, stainless steel and fireproof doors
- Wiring: PC board mounted terminal block connections

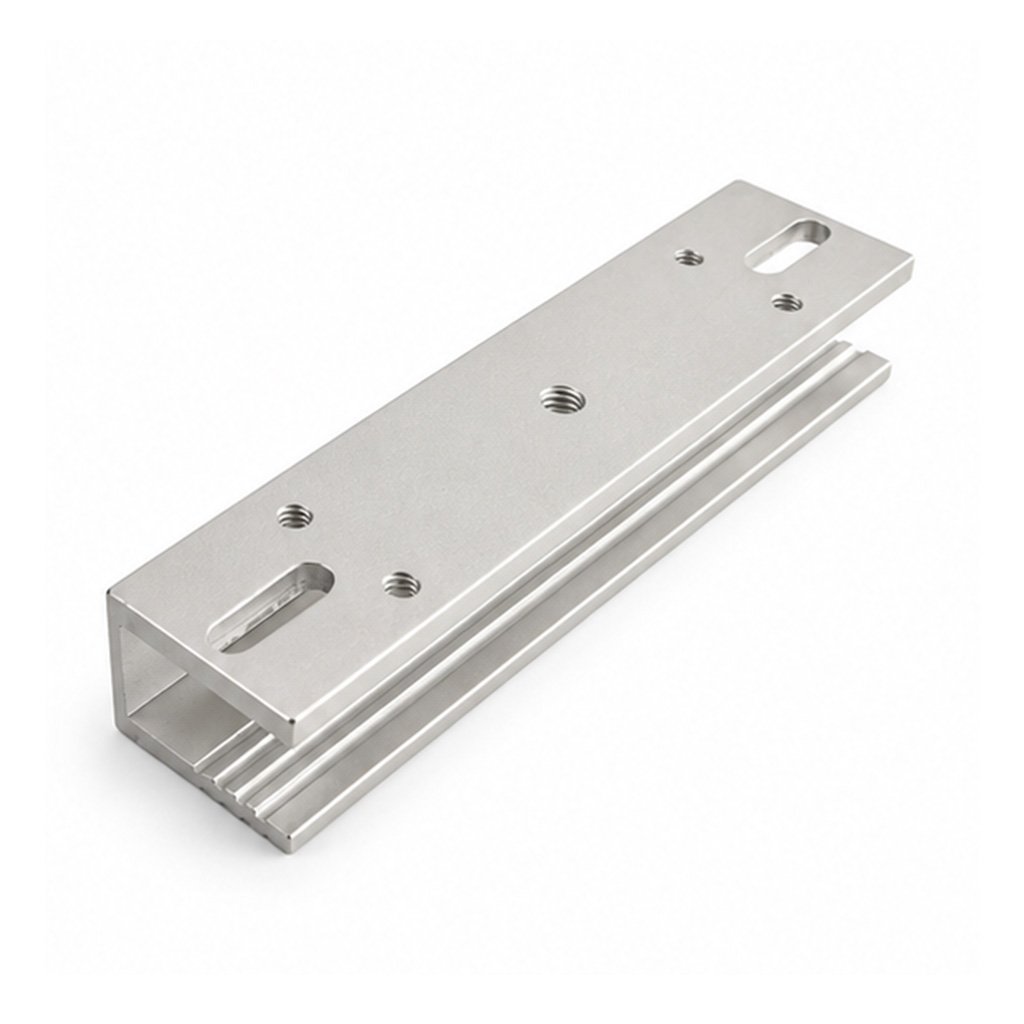

- Bracket is optional, assembled on hollow door and glass doors
- Made more secure, lock body adopts two screws on each side
- Can be used with access control system, building intercom and fire
- No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
- MA certified products of China / CE certification of EU.
- Built-in reverse current protection device (MOV).
- Shell is made of high-strength aluminum alloy, Anodized.
- Dual Voltage 12 or 24 VDC(optional).
|Product Parameter||Parameter Description|
|Armature Plate Dimension||190L*45W*11H(mm)|
|Input Voltage||12 or 24VDC|
|Current||12V/500mA or 24V/250mA|
|Cover Finish||Anodized aluminum|
|Armature Plate Finish||Zinc|
