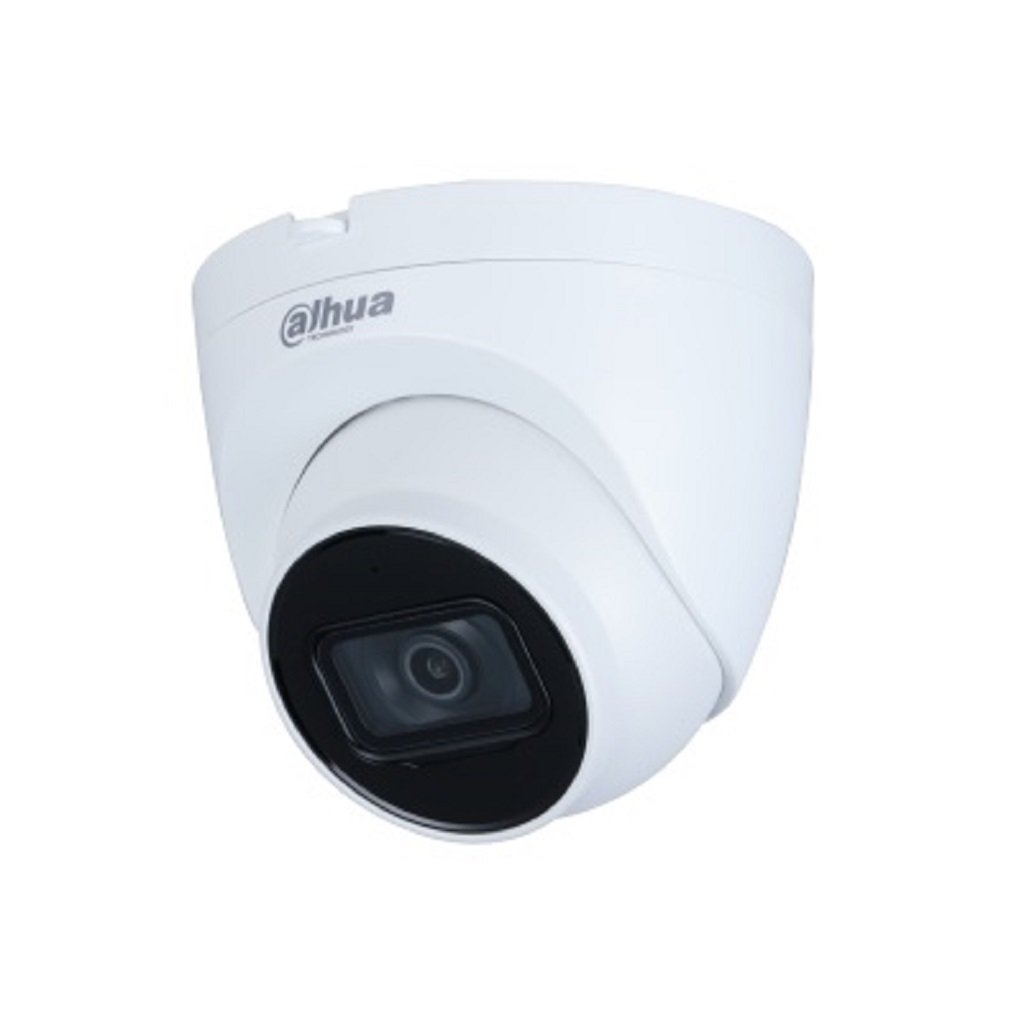

Dahua IPC-HDW2431TP-AS 4MP IR-30M IR Dome Network Camera. With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 (Supported by some select models).
DigiMark Solution has been Bangladesh's authorized Dahua distributor. Every Dahua IPC-HDW2431TP-AS 4MP IR-30M IR Dome Network Camera is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
| SPECIFICATION | PR00125 |
|---|---|
| Image Sensor | 1/3” 4Megapixel progressive CMOS |
| Effective Pixels | 2688 (H) × 1520 (V) |
| RAM/ROM | 128 MB /128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Minimum Illumination | 0.008 Lux @ F1.6 |
| S/N Ratio | More than 56 dB |
| IR Distance | Distance up to 30 m (98.43 ft) |
| IR On/Off Control | Auto / Manual |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm (3.6 mm optional) |
| Max Aperture | F1.6 F1.6 |
| Angle of View | 2.8 mm: Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0° 3.6 mm : Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0° |
| Focus Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft) |
| Attribute / Feature | Specification Details |
|---|---|
| Image Sensor | 1/3” 4Megapixel progressive CMOS |
| Effective Pixels | 2688 (H) × 1520 (V) |
| RAM/ROM | 128 MB /128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Minimum Illumination | 0.008 Lux @ F1.6 |
| S/N Ratio | More than 56 dB |
| IR Distance | Distance up to 30 m (98.43 ft) |
| IR On/Off Control | Auto / Manual |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm (3.6 mm optional) |
| Max Aperture | F1.6 F1.6 |
| Angle of View | 2.8 mm: Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0° 3.6 mm : Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0° |
| Focus Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft) |
