| Product Type |

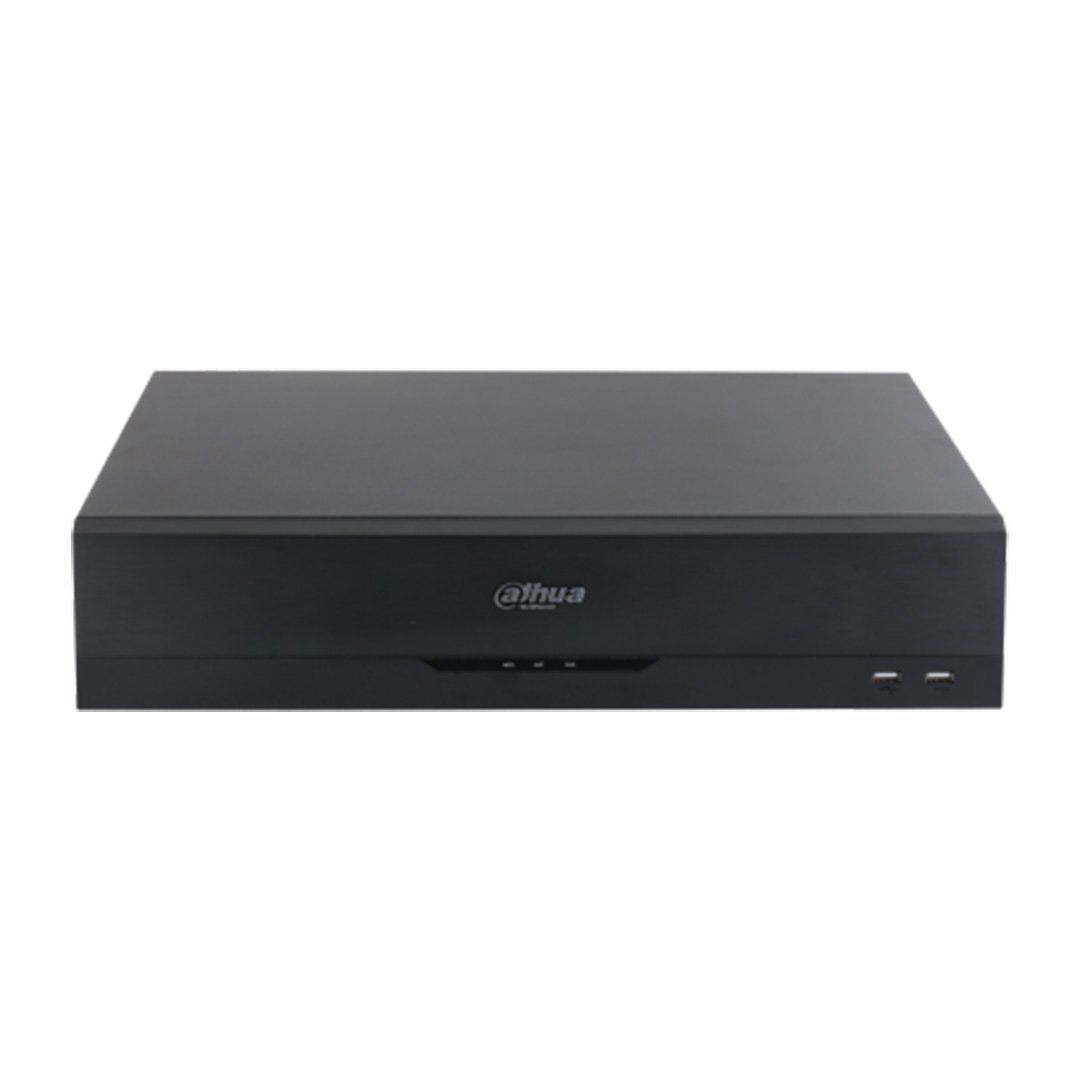

32 Channel AI Network Video Recorder (NVR) |
| Model |
Dahua DHI-NVR5832-EI2 |
| Series |
WizSense NVR 5-EI2 Series |
| Main Processor |
Industrial-grade Processor |
| Operating System |
Embedded Linux |
| User Interface |
Web Browser & Local GUI |
| IP Camera Input |
32 Channels |
| Maximum Camera Resolution |
Up to 32MP |
| Video Compression |
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Incoming Bandwidth |
448 Mbps (AI Disabled), 200 Mbps (AI Enabled) |
| Recording Bandwidth |
448 Mbps (AI Disabled), 200 Mbps (AI Enabled) |
| Outgoing Bandwidth |
448 Mbps (AI Disabled), 200 Mbps (AI Enabled) |
| Decoding Capability |
Up to 2 × 32MP, 2 × 24MP, 5 × 16MP, 6 × 12MP, 10 × 8MP, 32 × 1080p @ 30fps (AI Disabled) |
| Video Output |
2 × HDMI, 2 × VGA |
| HDMI Resolution |
Up to 7680 × 4320 (8K) |
| VGA Resolution |
Up to 1920 × 1080 |
| Multi-screen Display |
Main: 1/4/8/9/16/25/36, Sub: 1/4/8/9/16 |
| AI by Recorder |
Face Detection, Face Recognition, Video Metadata, Perimeter Protection, ANPR, SMD Plus, AcuPick |
| AI by Camera |
Face Detection & Recognition, Video Metadata, Perimeter Protection, SMD, Stereo Analysis, Crowd Distribution, People Counting, ANPR, Vehicle Density, Heat Map, PPE Detection, Smart Object Detection, Smart Sound Detection, AcuPick |
| Face Database Capacity |
Up to 20 Face Databases, 30,000 Face Images |
| License Plate Database |
Up to 20,000 Plate Numbers (Allowlist & Blocklist) |
| Playback |
32-Channel Synchronous Playback |
| Audio Interface |
1 × RCA Audio Input, 2 × RCA Audio Outputs |
| HDD Interface |
8 × SATA III |
| Maximum Storage Capacity |
Up to 24TB per HDD |
| RAID Support |
RAID 0, 1, 5, 6, 10 |
| eSATA Interface |
1 × eSATA |
| Network Interface |
2 × RJ-45 (10/100/1000 Mbps) |
| Alarm Interface |
16 Alarm Inputs, 8 Alarm Outputs |
| RS-232 |
1 Port |
| RS-485 |
1 Port |
| USB Ports |
2 × USB 2.0, 1 × USB 3.0 |
| Third-Party Camera Support |
ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha |
| Network Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, DDNS, FTP, iSCSI, P2P |
| Smart Features |
AcuPick, EPTZ, One-click Arming & Disarming, N+M Cluster, RAID, Security Baseline |
| Power Supply |
100–240V AC, 50/60Hz |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–93% RH |
| Installation |
2U Rack Mount |
| |
|
