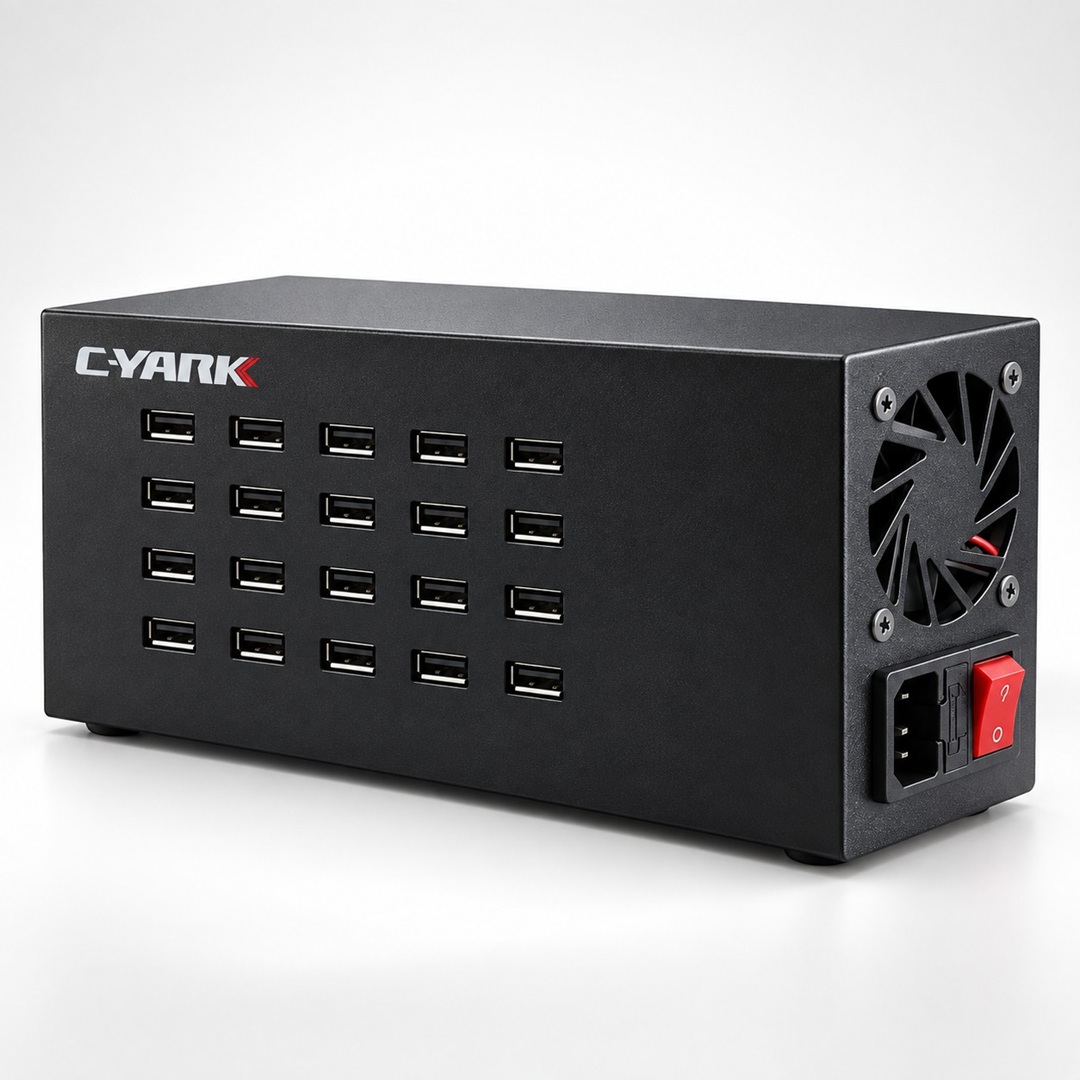

The C-YARK CY-USB-20PA is a 20-port USB charging station for wireless conference units, supplied in Bangladesh by DigiMark Solution as an authorized C-YARK Distributor.
Key features
A wireless conference system needs a charging routine, and this is it — Twenty units charging simultaneously from one station. Without a charging station, a wireless system becomes twenty individual chargers and a cupboard full of cables — and the first meeting where three units are flat is the meeting where the system loses its credibility.
Leakage protection — the one that matters in Bangladesh — Built-in leakage protection cuts the output automatically. Given mains quality and earthing standards in many Bangladeshi buildings, a 200 W charging station handling twenty lithium units without leakage protection is a genuine risk rather than a theoretical one.
Full protection set: short circuit, overcurrent, undervoltage — Multiple short-circuit protections, input and output overcurrent, undervoltage protection, and intelligent constant-current output with automatic device recognition. Each port adapts to what is plugged into it rather than forcing a fixed current.
Real-time digital voltage display — The display shows actual output voltage, so a technician can see at a glance whether the station is delivering correctly — useful where mains voltage fluctuates.
Compact enough for a storage cupboard — 280 × 130 × 77 mm and 1.49 kg. It lives where the units live, which is how a charging routine actually gets followed.
Where it is used
Essential with the CY-7145M wireless system. Sized for a 20-unit room; two stations for a 40-unit chamber.
Sizing a conference system
Three numbers decide the specification: seat count, room acoustics, and whether proceedings are recorded.
Seat count — one unit per seat plus one chairman unit. Count fixed positions, not typical attendance.
Room acoustics — a hard-surfaced room with glass and tile will echo regardless of microphone quality. Treatment does more for intelligibility per taka than any equipment upgrade.
Recording — if minutes may be challenged or transcribed, specify a controller with built-in recording and the higher-grade capsule. Retrofitting recording afterwards costs considerably more.
Why buy from DigiMark Solution
DigiMark Solution is the Authorized C-YARK Distributor for Bangladesh. Genuine units with manufacturer warranty, local service by our own team, and installation and commissioning by engineers who have specified conference systems for government chambers, courts, universities, and corporate boardrooms since 2006.
Indicative price range in Bangladesh
Price on request. Conference systems are quoted as a complete room rather than per unit. Send us your seat count and room dimensions, and we quote the same day — WhatsApp +880 1979-234342.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized C-YARK distributor. Every C-YARK CY-USB-20PA 20-Port Conference Unit Charging Station is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION
CY-USB-20PA
Brand
C-YARK
Model
CY-USB-20PA
Product Type
20-port USB charging station for conference units
Charging Ports
20 built-in USB ports — charges up to 20 devices simultaneously
Single-Port Output
5V / 2A
Rated Power
200 W
Short-Circuit Protection
Multiple — automatically cuts the output circuit
Overcurrent Protection
Input and output, with intelligent constant-current output
Undervoltage Protection
Supported
Device Recognition
Automatic identification of connected charging devices
Leakage Protection
Built in — automatically cuts output when leakage is detected
Power Switch
With indicator light showing operating status
Voltage Display
Real-time digital display of output voltage
Product Dimensions
280 × 130 × 77 mm
Package Dimensions
315 × 200 × 125 mm
Net Weight
1.49 kg
Shipping Weight
approx. 1.89 kg
Attribute / Feature
Specification Details
Brand
C-YARK
Model
CY-USB-20PA
Product Type
20-port USB charging station for conference units
Charging Ports
20 built-in USB ports — charges up to 20 devices simultaneously
Single-Port Output
5V / 2A
Rated Power
200 W
Short-Circuit Protection
Multiple — automatically cuts the output circuit
Overcurrent Protection
Input and output, with intelligent constant-current output
Undervoltage Protection
Supported
Device Recognition
Automatic identification of connected charging devices
Leakage Protection
Built in — automatically cuts output when leakage is detected
Power Switch
With indicator light showing operating status
Voltage Display
Real-time digital display of output voltage
Product Dimensions
280 × 130 × 77 mm
Package Dimensions
315 × 200 × 125 mm
Net Weight
1.49 kg
Shipping Weight
approx. 1.89 kg
Complete Installation
What else you need for a working Kit
A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.
Price on request. Complete system pricing depends on the wireless units, charging station, controller, and room requirements. WhatsApp: +880 1979-234342 for a quote.
It is an optional but useful accessory for wireless conference systems. It provides centralized charging for up to 20 wireless units instead of using individual chargers.
The CY-USB-20PA provides 20 USB charging ports, with 5V/2A output per port, allowing up to 20 wireless units to charge simultaneously.
Yes. It has built-in leakage protection and a 200W rated power capacity for safer centralized charging.
Yes. We provide room assessment, system installation, commissioning, and staff training.
