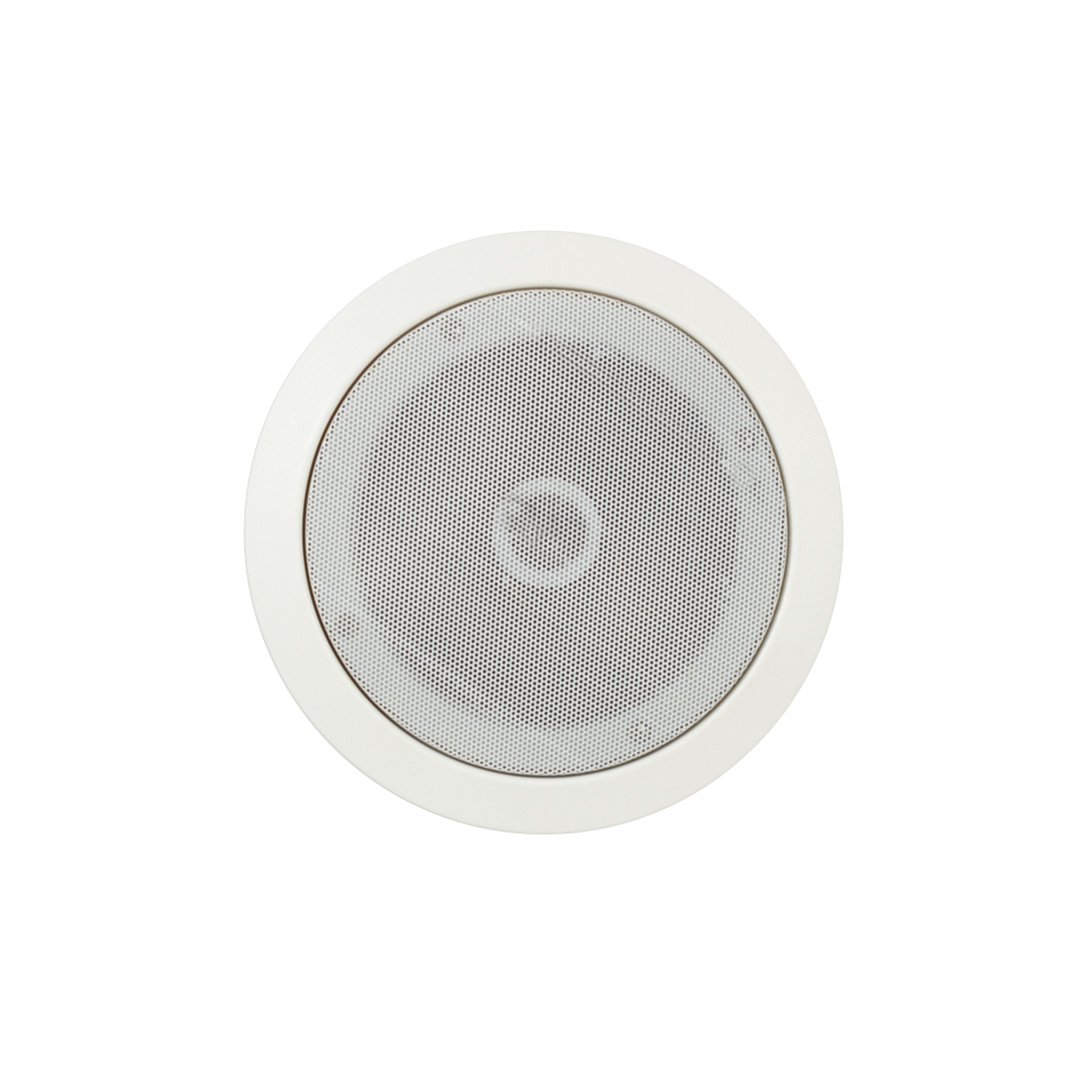

C-Yark YF-105V Two-Way Ceiling Loudspeaker

Meet the C-Yark YF-105V Two-Way Ceiling Loudspeaker

When it comes to consistent, intelligible audio coverage in commercial and institutional environments, choosing the right speaker matters enormously. The C-Yark YF-105V Two-Way Ceiling Loudspeaker is a professionally designed ceiling-mount speaker built for public address (PA) systems, background music distribution, and voice announcement applications. Whether you are outfitting an office, school, hospital corridor, retail store, or hospitality venue, the YF-105V delivers reliable acoustic performance in a compact, flush-mount format.

Dual-Driver Design for Full-Range Sound Reproduction

The defining characteristic of the C-Yark YF-105V Two-Way Ceiling Loudspeaker is its two-way driver configuration. It combines a 5-inch woofer with a 1-inch tweeter, allowing the speaker to handle both low-mid frequencies and high-frequency vocal clarity simultaneously. This two-way topology ensures that spoken announcements remain crisp and intelligible while background music retains a balanced tonal character — a quality that single-driver ceiling speakers often struggle to achieve. For system integrators and facility managers who prioritize audio fidelity across the full frequency range, this dual-driver setup represents a meaningful advantage.

100V Line Compatibility: Built for Professional PA Infrastructure

The YF-105V supports 70V and 100V line-level input standards, which are the backbone of large-area PA distribution systems. The C-Yark YF-105V Two-Way Ceiling Loudspeaker operates at a rated power of 10W with a maximum power capacity of 20W. The 100V line (also known as high-impedance or constant-voltage) system architecture allows multiple speakers to be daisy-chained across long cable runs without significant signal loss — making it the preferred choice for architects, AV consultants, and system designers managing multi-zone audio installations in larger buildings. This makes the YF-105V particularly well-suited for environments where a centralized amplifier needs to drive dozens of ceiling speaker units simultaneously.

Durable Construction with ABS Plastic Baffle and Iron Grille

The enclosure of the C-Yark YF-105V Two-Way Ceiling Loudspeaker is constructed from high-quality ABS plastic for the baffle, complemented by a steel iron grille that provides both acoustic transparency and physical protection. ABS (Acrylonitrile Butadiene Styrene) is a widely trusted material in commercial audio enclosures due to its resistance to impact, humidity variation, and long-term structural deformation. The iron grille ensures the speaker driver remains shielded from accidental contact while maintaining a clean, professional aesthetic that integrates naturally into suspended ceiling systems. With a panel diameter of Φ203 mm and a mounting depth of 80mm, installation within standard ceiling tiles and panels is straightforward.

Practical Dimensions Designed for Simple Installation

Installation planning is made easier with well-defined physical parameters. The C-Yark YF-105V Two-Way Ceiling Loudspeaker requires a mounting cutout of Φ168 mm, while the outer panel measures Φ203 x 80mm. At a weight of just 0.96kg, the unit is light enough for single-person installation without additional support structures in most standard ceiling applications. These dimensions make the YF-105V compatible with the majority of commercial drop-ceiling grids and plasterboard ceiling assemblies commonly found across Bangladeshi commercial construction.

Where the C-Yark YF-105V Ceiling Loudspeaker Performs Best

The versatility of the C-Yark YF-105V Two-Way Ceiling Loudspeaker makes it applicable across a wide range of real-world environments. It is well suited for corporate offices and conference rooms requiring background music and paging capability, educational institutions where clear voice announcements are essential, healthcare facilities where low-disturbance ambient audio is needed, retail spaces requiring distributed background music, hotels and hospitality venues with multi-zone audio systems, and transportation hubs, airports, or public waiting areas.

A Cost-Effective Entry into Professional Ceiling Speaker Systems

For system integrators and procurement managers evaluating ceiling speaker options, the YF-105V presents a compelling combination of two-way driver performance, 100V line compatibility, and robust physical construction at a competitive price point. The C-Yark YF-105V Two-Way Ceiling Loudspeaker reflects C-Yark's commitment to producing accessible professional audio hardware that does not compromise on the technical specifications required for reliable, long-term PA system operation.

FAQ

Q1: What is the C-Yark YF-105V Two-Way Ceiling Loudspeaker used for?
The C-Yark YF-105V is used for public address (PA) systems, background music distribution, and voice announcement applications in commercial environments such as offices, schools, hospitals, retail stores, and hotels.

Q2: What does "two-way" mean in the context of this ceiling speaker?
"Two-way" refers to the fact that the speaker uses two separate driver units — a 5-inch woofer handling low-to-mid frequencies and a 1-inch tweeter handling high frequencies. This allows for a more balanced and natural sound reproduction compared to single-driver ceiling speakers.

Q3: Is the C-Yark YF-105V compatible with standard PA amplifiers in Bangladesh?
Yes. The YF-105V supports both 70V and 100V constant-voltage (high-impedance) line inputs, which are the standard voltage levels used by most professional PA amplifiers available in the Bangladeshi market.

Q4: How many speakers can I connect to a single PA amplifier using the YF-105V?
The number of speakers that can be connected depends on the output wattage of your amplifier. Since each YF-105V operates at 10W, a 100W amplifier can support up to 10 units at full rated power. A qualified AV system designer can help calculate the correct number based on your specific installation.

Q5: What size ceiling cutout is required to install the YF-105V?
The YF-105V requires a circular mounting cutout of Φ168 mm. The total panel size is Φ203 x 80mm, which fits flush against the ceiling surface around the cutout opening.

Q6: Is the C-Yark YF-105V suitable for outdoor use?
The YF-105V is designed for indoor ceiling installation. For outdoor or high-humidity environments, a weatherproof-rated speaker model would be more appropriate.

Q7: What is the difference between 70V and 100V input on the YF-105V?
Both 70V and 100V refer to constant-voltage (CV) distribution standards used in PA systems. The 100V line is more common internationally and in Bangladesh's commercial sector. The 70V standard is more prevalent in North American systems. The YF-105V supports both, giving it broad system compatibility.
