C-Yark C-869D Professional PA Power Amplifier

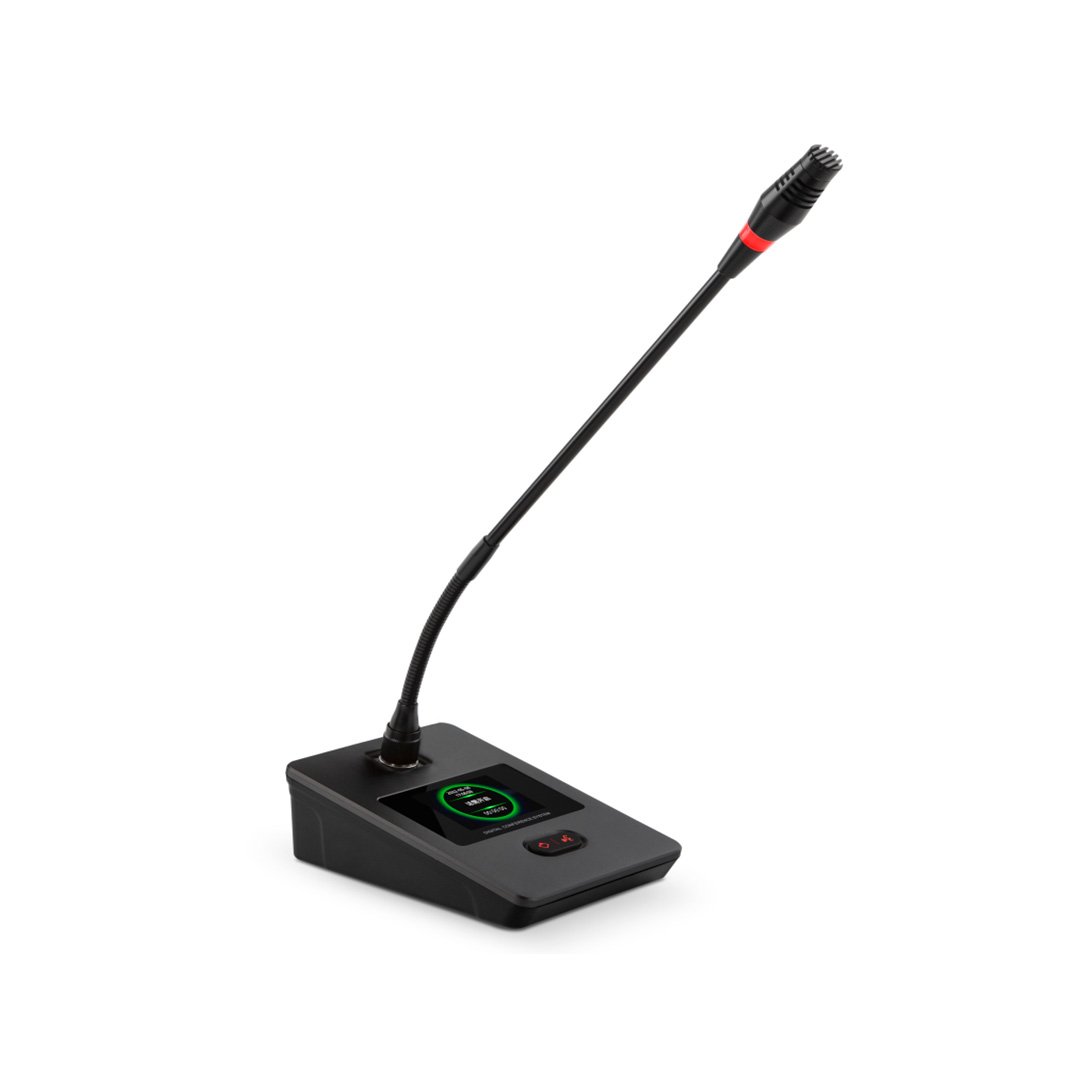

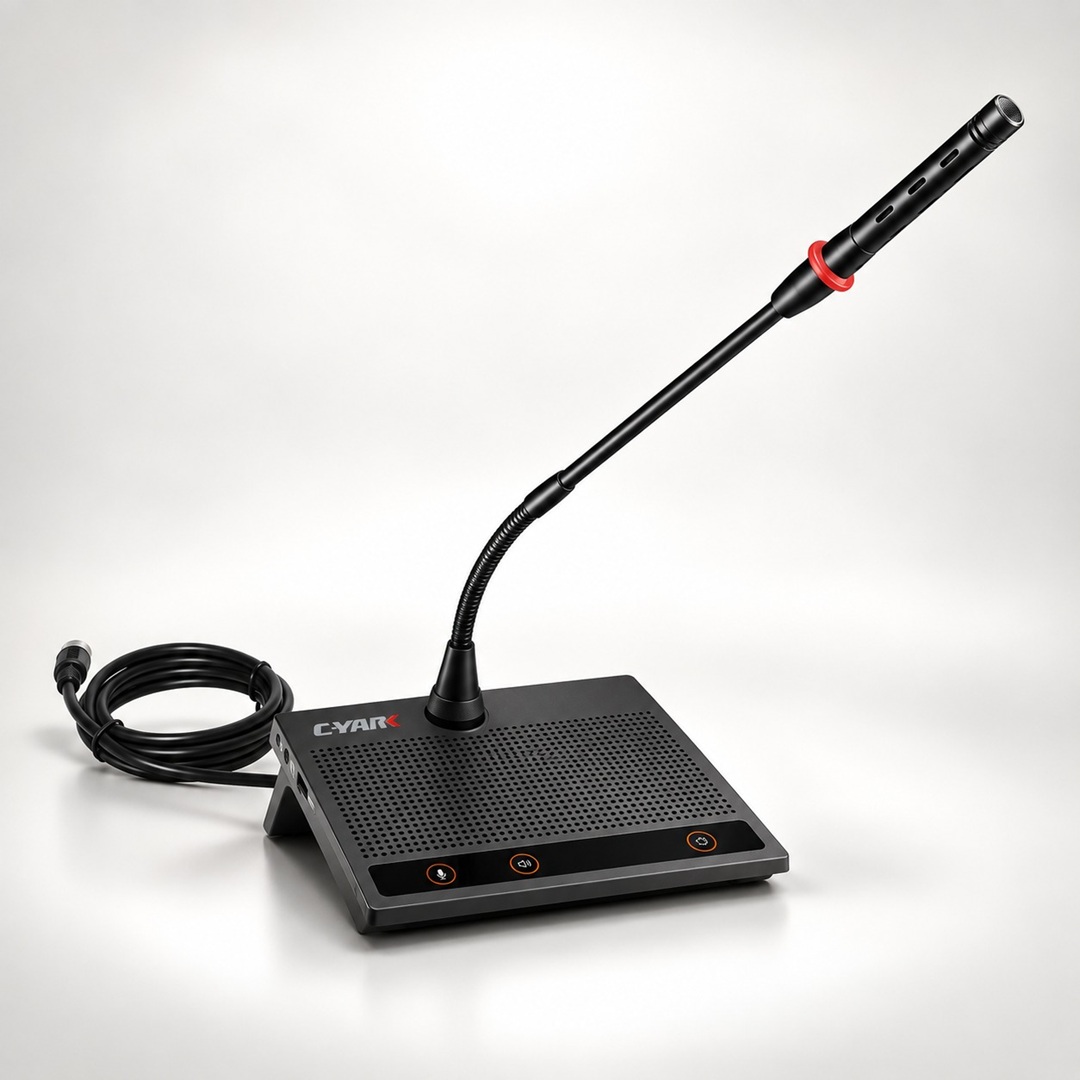

C-Yark C-869D is a professional-grade Desktop Delegate Microphone (discussion microphone) from the reliable C-Yark conference series, delivering exceptional audio clarity, robust anti-interference performance, and user-friendly controls for modern conference, boardroom, and multi-participant meeting environments. Designed as a high-quality delegate microphone station, the C-869D complements systems like the C-859C chairman unit, offering seamless integration in daisy-chained wired setups for clear, focused discussions in corporate meetings, government chambers, training facilities, and international summits.

• Intuitive Status Display — Built-in color screen (similar to 2.4-inch models in the series) clearly indicates speaking, mute, or request-to-speak status for instant visual feedback
• Prominent Working Indicator — Bright red LED ring illuminates when the microphone is active, ensuring participants and operators know exactly when a unit is live
• Safe Passive Power Supply — Powered entirely by the central host unit (DC 24V) — no local power adapters needed, maintaining low-voltage safety compliance
• Interference-Resistant Cabling — Connects via shielded 8-core T-type cable (full aluminum foil + water-resistant shielding) to minimize electromagnetic interference from strong sources; optional RJ45 interface supports Cat6/Cat7 cables for hybrid digital-analog backup configurations (analog 48V variants available)
• Focused Audio Pickup — High-performance supercardioid (cardioid electret condenser) microphone capsule captures natural, intelligible speech while effectively rejecting background noise and off-axis sounds
• Advanced Anti-Jamming Technology — Dedicated circuitry blocks disruptions from mobile phones, wireless devices, and nearby electronics for uninterrupted meetings
• Flexible Delegate Operation — Supports multiple delegate units with easy daisy-chain connectivity; works alongside chairman units for priority queuing and orderly discussion management
• Effortless Setup & Maintenance — Simple "daisy-chain" cabling reduces installation complexity and allows quick reconfiguration or troubleshooting in any room layout

• Operating Voltage — DC 24V (supplied by host unit)
• Interfaces — 8P socket ×1 (RJ45 ×1 optional)
• Microphone Type — Cardioid electret condenser
• Sensitivity — -46 dBV/Pa
• Frequency Response — 20 Hz – 20 kHz
• Input Impedance — 2 kΩ
• Directivity Rejection — 0°/180° > 20 dB (at 1 kHz)
• Equivalent Noise Level — 20 dBA (SPL)
• Maximum SPL — 125 dB (THD < 3%)
• Signal-to-Noise Ratio — > 80 dB
• Channel Crosstalk — > 80 dB
• Total Harmonic Distortion — < 0.05%
• Built-in Speaker (optional) — 8 Ω / 2 W
• Headphone Output (optional) — 10 mW @ >10 Ω load; dual 3.5 mm jacks
• Dimensions (base unit, excluding gooseneck) — Approx. 10.5 × 15 × 4.5 cm (compact desktop footprint)
• Net Weight — 0.7 kg
• Color — Professional Black finish
• Installation — Desktop / tabletop placement

Engineered for durability and consistent performance, the C-Yark C-869D ensures every delegate's voice is transmitted with precision and reliability. Ideal for environments demanding high speech intelligibility, minimal interference, and straightforward system expansion.
