| Brand |
ZKTeco |
ZKTeco |
| Model |
SenseFace 7A |
SenseFace 7B |
| Product Type |

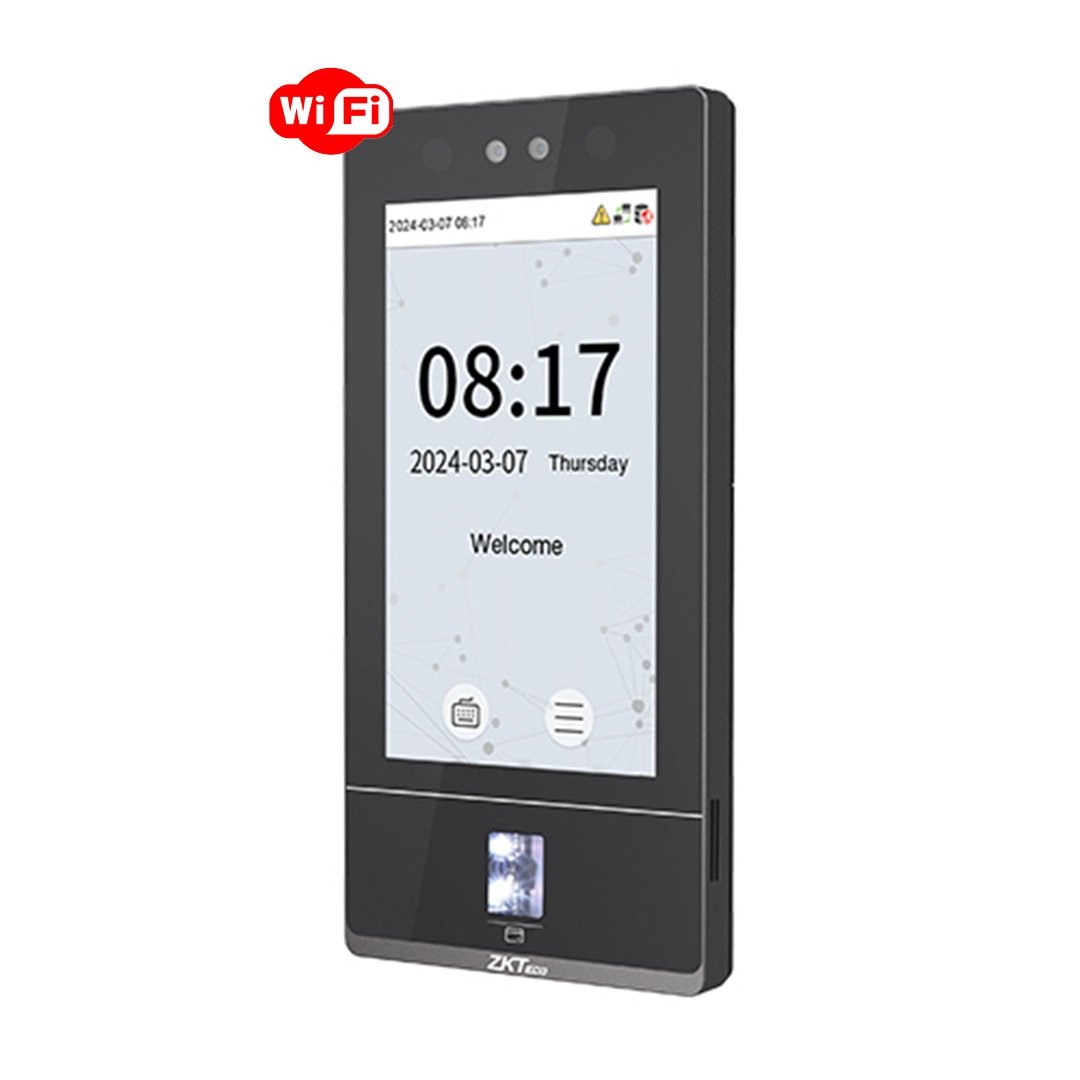

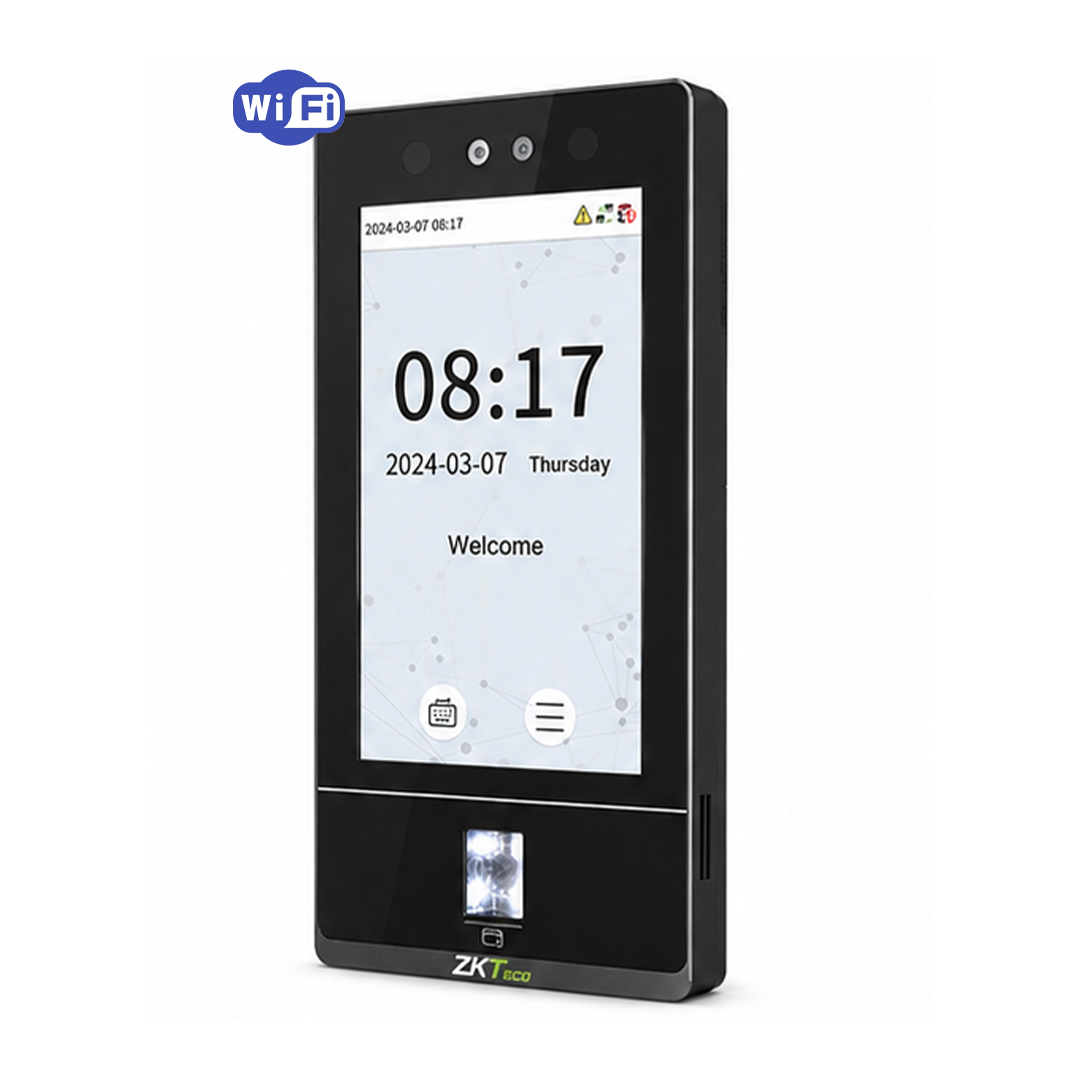

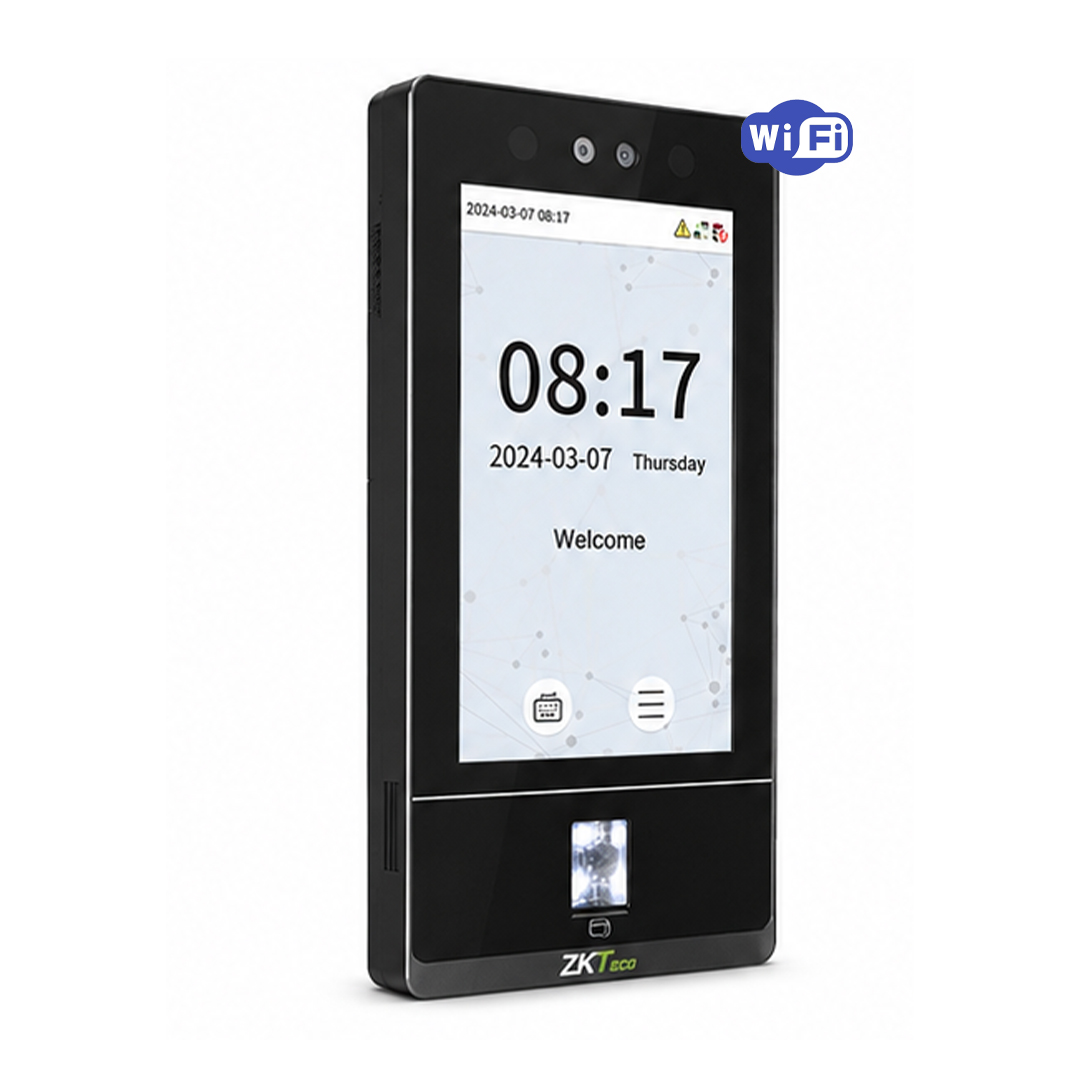

IP65 multi-biometric face, in-glass fingerprint and card terminal with SIP video intercom |
IP65 face and card access control terminal with SIP video intercom — face-only, no fingerprint |
| Verification Method |
Face, in-glass fingerprint, RFID card, password (virtual keypad) |
Face, RFID card, password (virtual keypad) — no fingerprint sensor |
| Fingerprint Capacity |
10,000 (1:N) standard · 50,000 on the Big Capacity version |
Not supported — the SenseFace 7A is the fingerprint-equipped model |
| Face Capacity |
50,000 (1:N) |
50,000 (1:N) |
| Card Capacity |
50,000 — ID card 125 kHz standard, IC card 13.56 MHz optional |
50,000 — ID card 125 kHz standard, IC card 13.56 MHz optional |
| User Capacity |
50,000 |
50,000 |
| Transaction Capacity |
300,000 |
300,000 |
| Sensor Type |
1 MP WDR binocular camera + in-glass fingerprint sensor (Z-ID) |
1 MP WDR binocular camera |
| Algorithm Version |
ZKFace V4.0 · ZKFingerprint V13.0 (standard) / V10.0 (optional) |
ZKFace V4.0 |
| Verification Speed |
Face < 0.35 s · Fingerprint < 0.5 s · FAR ≤ 0.01% face, ≤ 0.0001% fingerprint · FRR ≤ 0.02% face, ≤ 0.01% fingerprint |
Face < 0.35 s · FAR ≤ 0.01% · FRR ≤ 0.02% |
| Display |
7" TFT colour touch LED screen (600 × 1024) |
7" TFT colour touch LED screen (600 × 1024) |
| Keypad |
Virtual keypad on touch screen |
Virtual keypad on touch screen |
| Communication |
TCP/IP, Wi-Fi, SIP 2.0 video intercom, ONVIF, RS485, Wiegand, USB; AC push convertible to TA push; BEST protocol for ZKBio Zlink |
TCP/IP, Wi-Fi, SIP 2.0 video intercom, ONVIF, RS485, Wiegand, USB; AC push convertible to TA push; BEST protocol for ZKBio Zlink |
| Wiegand Signal |
Input or output ×1 |
Input or output ×1 |
| Access Control Interface |
Electric lock ×1, door sensor ×1, exit button ×1, auxiliary input ×1, 12V output ×1 |
Electric lock ×1, door sensor ×1, exit button ×1, auxiliary input ×1, 12V output ×1 |
