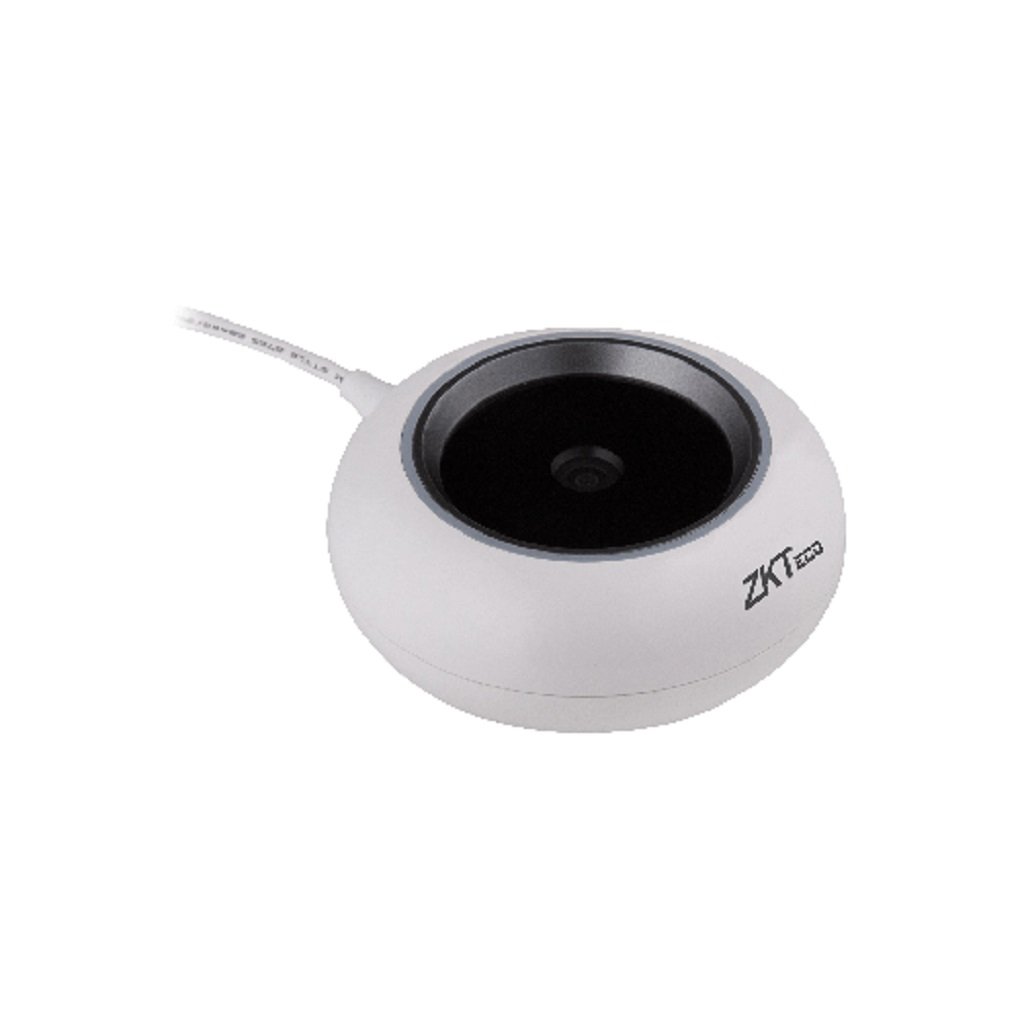

The ZKTeco PV10R is a high-performance contactless palm and vein scanner, supplied in Bangladesh by DigiMark Solution as an Authorized Distributor of ZKTeco. Engineered specifically for user enrollment and identity verification rather than standalone physical door access, this desktop device connects to a computer via USB to feed HR management, software registration, banking, and visitor tracking systems.
Key Features of ZKTeco PV10R
Contactless Palm & Vein Capture: Captures palm print and subcutaneous vein patterns without physical touch. Vein recognition reads beneath the skin surface, making it effective for hands that defeat optical fingerprint readers (such as worn, wet, cut, or dirty fingers).
SDK Integration Support: Fully supported by the ZKPalm SDK (compatible with Android 4.1 and above), complete with development documentation and demo code for custom software integration.
Genuine Import with Local Warranty: Officially imported hardware backed by manufacturer warranties and local RMA servicing in Bangladesh, unlike unmaintainable grey-market units.
Superior Enrollment Quality: High-grade contactless imaging ensures clean biometric templates captured during initial registration, preventing downstream verification failures.
How the PV10R Palm & Vein Scanner Works
The PV10R connects directly over a USB interface to a host computer running your custom enrollment or verification software.
Biometric Capture: The contactless scanner captures the palm print and underlying vascular vein pattern.
Template Conversion: The integrated SDK converts the biometric data into a secure digital template.
Host Software Processing: The scanner itself holds no internal database—template matching, database storage, and user capacity are managed entirely by your host software application.
Where is the PV10R Used in Bangladesh?
Corporate head offices and multinational firms
Garment and textile manufacturing factories
Commercial banks, microfinance institutions, and financial houses
Hospitals, diagnostic medical centers, and healthcare networks
Universities, training institutions, and campus computer labs
Government installations, administrative offices, and defense facilities
Why Buy from DigiMark Solution?
DigiMark Solution is the Authorized Distributor of ZKTeco hardware in Bangladesh. Every PV10R unit is officially imported with original firmware and manufacturer warranty. Unlike grey-market alternatives that cannot be firmware-updated or repaired locally, our devices are fully supported by our dedicated service desk in Bangladesh.
Buy Genuine from DigiMark Solution
DigiMark Solution has been Bangladesh's authorized ZKTeco distributor. Every ZKTeco PV10R Contactless Palm & Vein Scanner is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
100% Original Firmware Official Manufacturer Warranty Expert Technical Support
SPECIFICATION
PR00444
SLK20R
Brand
ZKTeco
ZKTeco
Model
PV10R
SLK20R
Product Type
Contactless palm and vein scanner
Desktop USB fingerprint scanner for enrolment and identity verification
Sensor Type
Contactless palm and vein
Optical
Image Resolution
480 × 640 pixels
2 megapixel CMOS
Sensor Size
0.3 MP
16.5 × 23 mm
Image Quality Standard
Complies with key electronic and environmental standards, including CE, FCC, and RoHS
IQS FAP 20 compliant
Live Finger Detection
Supported
Yes — live finger detection
Encrypted Data Output
Encrypted biometric processing and template creation via the ZKPalm SDK
Yes — encrypted fingerprint data output
Sunlight Operation
Works in diverse lighting conditions, with <800 Lux for enrollment and <2000 Lux for authentication
Yes — dark field with automatic gain
Processor
High-performance, low-power processor with a frequency up to 400MHz
280 MHz DSP
Memory
Supports local storage and SDK-based systems, with verification matching speeds of <300ms
32 MB Flash, SoC RTOS (image output only)
Interface
USB 2.0 via a standard 7-pin 1.25mm connector
USB 2.0
SDK Support
ZKPalm SDK — Android 4.1 and above
ZKFinger SDK — Windows, Linux and Android
Operating System Support
Windows and Android
Windows XP SP3 / Vista / 7 / 8 / 8.1 / 10, Windows Server 2008 / 2012 (32 & 64-bit) · Linux Kernel 2.6–4.10 · Android
Power Source
USB-powered at 5V, consuming 0.5W in standby and 1.5W during operation
USB bus powered — no separate adapter
Attribute / Feature
Specification Details
Brand
ZKTeco
Model
PV10R
Product Type
Contactless palm and vein scanner
Sensor Type
Contactless palm and vein
Image Resolution
480 × 640 pixels
Sensor Size
0.3 MP
Image Quality Standard
Complies with key electronic and environmental standards, including CE, FCC, and RoHS
Live Finger Detection
Supported
Encrypted Data Output
Encrypted biometric processing and template creation via the ZKPalm SDK
Sunlight Operation
Works in diverse lighting conditions, with <800 Lux for enrollment and <2000 Lux for authentication
Processor
High-performance, low-power processor with a frequency up to 400MHz
Memory
Supports local storage and SDK-based systems, with verification matching speeds of <300ms
Interface
USB 2.0 via a standard 7-pin 1.25mm connector
SDK Support
ZKPalm SDK — Android 4.1 and above
Operating System Support
Windows and Android
Power Source
USB-powered at 5V, consuming 0.5W in standby and 1.5W during operation
Complete Installation
What else you need for a working Kit
A single device is only part of a complete security or automation setup. Most projects need matching accessories, software and power components, chosen according to your site and requirements. You can start with a basic use case and upgrade later by adding the recommended supporting devices.
The ZKTeco PV10R is a contactless biometric scanner designed to capture palm and vein features using near-infrared imaging technology for secure identity verification and authentication.
The PV10R supports a contactless palm recognition range of approximately 20 cm to 35 cm, allowing users to present their palm without touching the scanner
Yes. The PV10R uses near-infrared imaging to capture palm and vein information beneath the skin, providing a contactless biometric authentication method with strong anti-spoofing capability.
The PV10R uses a USB interface for both power and data communication, making it suitable for desktop, kiosk, and integrated biometric applications.
The PV10R supports Windows and Android platforms. DigiMark lists support for Windows XP/7/10 (32/64-bit) and Android 4.1 or higher.
Yes. The PV10R supports the ZKPalm SDK, allowing developers to integrate palm and vein recognition functionality into compatible custom applications and biometric solutions.
