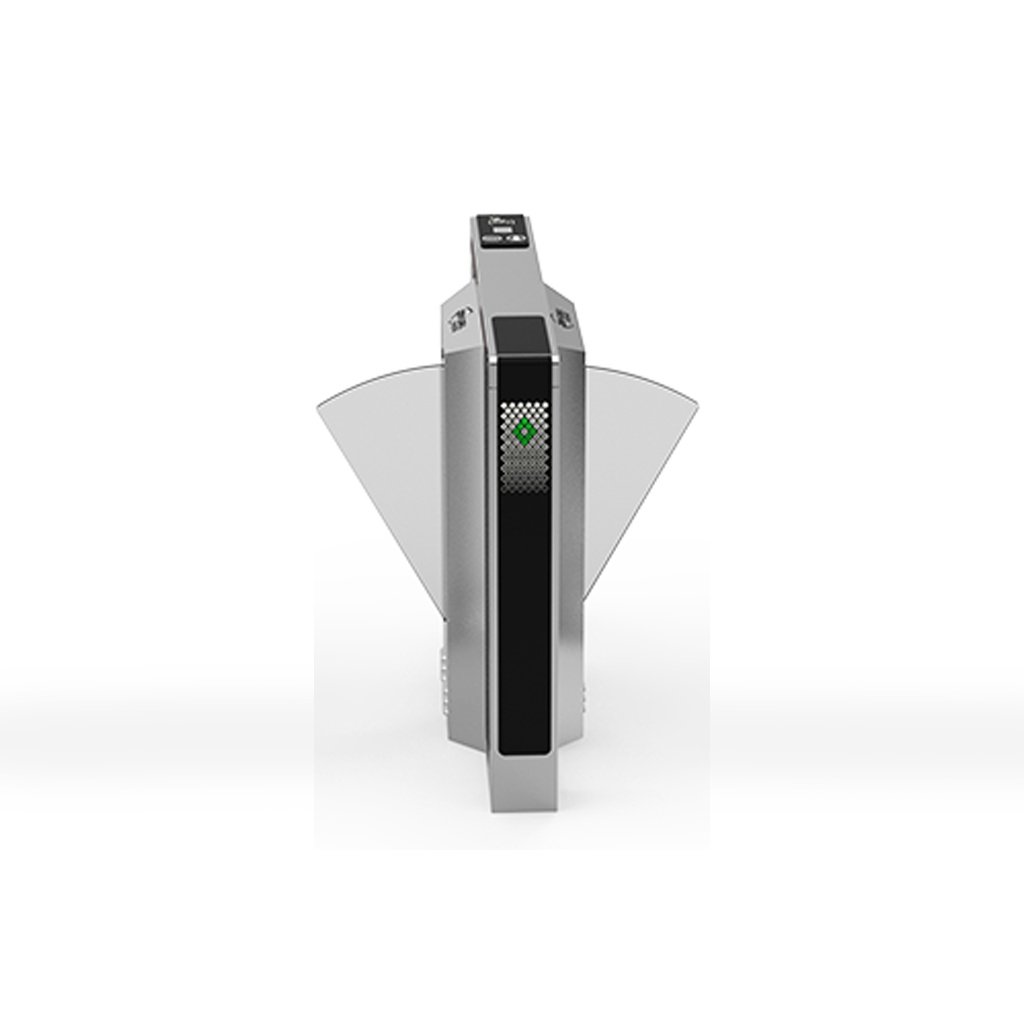

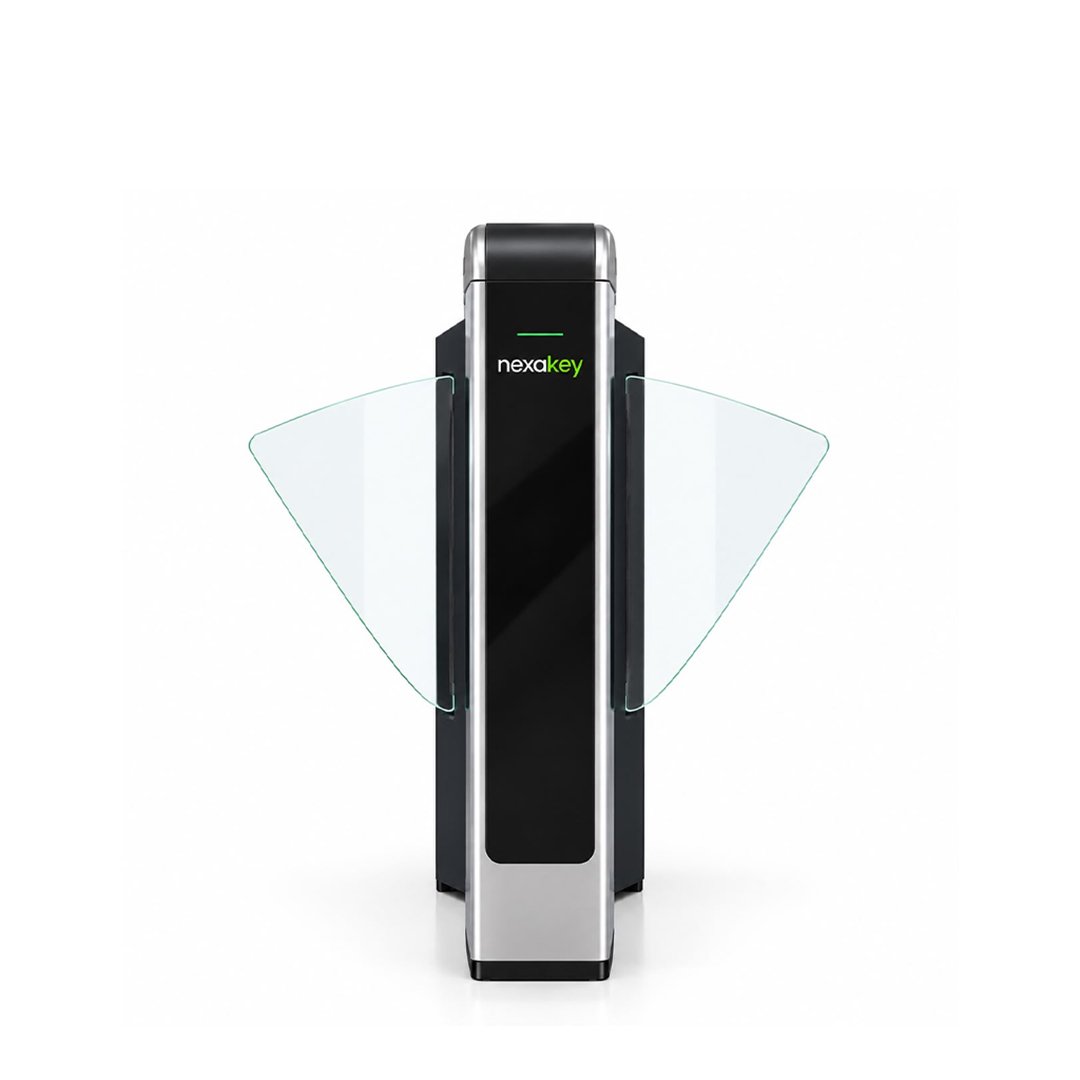

The Nexakey NX-FBL2520 Lane Builder flap barrier gate is a stainless-steel access control turnstile engineered for offices, banks, and institutional entrances that need both durability and disciplined pedestrian flow. Built with a SUS304 stainless steel housing (1.0mm + 1.2mm thickness), it's designed to withstand daily high-traffic use without visible wear, giving corporate lobbies a clean, modern finish.
This single-lane access control gate uses infrared sensors to detect tailgating attempts within roughly 5cm of a valid pass, triggering an audible alarm for wrong-direction entry or forced access. If no authorized signal is confirmed, the flap auto-closes within 3 seconds, keeping unauthorized movement out while logging clean entry data for your access control software.
Ideal for bank branches, corporate HQs, hospitals, universities, and government facilities where both security auditing and interior aesthetics matter — the stainless housing blends into premium lobby designs better than painted-metal alternatives.
DigiMark Solution has been Bangladesh's authorized Nexakey distributor. Every Nexakey NX-FBL2520 Lane Builder Flap Barrier Gate is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
| Specification |
ZKTeco Plock-1 First Generation Parking Lock
ZKTeco
|
ZKTeco PB4030 Parking Barrier
ZKTeco
|
ZKTeco TS1000 Pro Series Turnstiles
ZKTeco
|
Current Item
Nexakey NX-FBL2520 Lane Builder Flap Barrier Gate
Nexakey
|
|---|---|---|---|---|
|
Material
|
SPCC steel | - | - | - |
|
Control distance
|
≤20m | - | - | - |
|
Arm rising time/falling time
|
≤6s | - | - | - |
|
Altitude after rising
|
390mm | - | - | - |
|
Altitude after dropping
|
75mm | - | - | - |
|
Operating temperature
|
-10°C ~+55°C | - | - | - |
|
Power supply
|
LR20 alkaline dry battery recommended (D x 4) | - | - | - |
|
Rated Voltage
|
DC6V | - | - | - |
|
Quiescent current
|
≤1mA | - | - | - |
|
Operating current
|
≤0.9A | - | - | - |
|
Size
|
390mm x 460mm x 75mm | - | - | - |
|
Weight
|
8KG | - | - | - |
|
Boom type
|
- | Telescopic boom | - | - |
|
Boom length
|
- | 4m / 6m | - | - |
|
Opening /closing time
|
- | 3s / 6s | - | - |
|
Supply voltage
|
- | 110V AC or 220V AC | - | - |
|
Power consumption
|
- | 120W | Running Standby | - |
|
Frequency
|
- | 50 – 60Hz | - | - |
|
Cabinet material
|
- | Powder coated steel | SUS304 Stainless Steel | - |
|
Boom material
|
- | Aluminum alloy | - | - |
|
Working temperature range
|
- | -20°C ~ +60°C | - | - |
|
Working humidity range
|
- | ≤90% | - | - |
|
Housing dimensions
|
- | 328 (D)*286 (W)*934 (H) mm | - | - |
|
Packing dimensions
|
- | 460 (D)*420 (W)*1150 (H) mm | - | - |
|
Power requirements
|
- | - | AC110V/220V, 50/60Hz | - |
|
Working temperature
|
- | - | -28 °C to 60 °C | - |
|
Working humidity
|
- | - | 5% to 80% | - |
|
Working environment
|
- | - | Indoor/Outdoor (if sheltered) | - |
|
Speed of throughput
|
- | - | RFID Fingerprint | - |
|
Lane width(mm)
|
- | - | 500 | - |
|
Footprint(mm*mm)
|
- | - | 520*810 | - |
|
Dimension(mm)
|
- | - | L=520, W=310, H=1010 | - |
|
Dimension with packing(mm)
|
- | - | L=570, W=365, H=1080 | - |
|
Net weight(kg)
|
- | - | 36 | - |
|
Weight with packing(kg)
|
- | - | 50 | - |
|
LED indicator
|
- | - | Y | - |
|
Lid material
|
- | - | SUS304 Stainless Steel | - |
|
Barrier material
|
- | - | SUS304 Stainless Steel | - |
|
Barrier movement
|
- | - | Rotation | - |
|
Emergency mode
|
- | - | Y | - |
|
Security level
|
- | - | Medium | - |
|
Mean cycles between failure (MCBF)
|
- | - | 1 million | - |
|
Options/Accessories
|
- | - | Counter, SUS316 Cabinet and Lid, Remote Control | - |
|
Specification
|
- | - | - | Value |
|
Model
|
- | - | - | NX-FBL2520 |
|
Type
|
- | - | - | Single Lane Flap Barrier Gate |
|
Dimensions
|
- | - | - | 1200 × 300 × 1000mm |
|
Housing Material
|
- | - | - | SUS304 Stainless Steel |
|
Housing Thickness
|
- | - | - | 1.0mm + 1.2mm |
|
Passage Width
|
- | - | - | 550mm |
|
Detection System
|
- | - | - | Infrared (IR) sensors, anti-tailgating |
|
Alarm System
|
- | - | - | Triggers on wrong-direction or forced entry |
|
Auto-Close Time
|
- | - | - | 3 seconds after inactivity |
|
Emergency/Fail-Safe Mode
|
- | - | - | Flap auto-opens on power failure or fire alarm |
|
Signal Response
|
- | - | - | Patented quick-response system |
|
Usage Environment
|
- | - | - | Indoor (offices, banks, institutions) |
|
Compatible Access Methods
|
- | - | - | RFID, biometric, face recognition |
|
Certifications
|
- | - | - | ISO 9001, CE, RoHS, Fire Safety Mechanism Approved |
| Attribute / Feature | Specification Details |
|---|---|
| Specification | Value |
| Model | NX-FBL2520 |
| Type | Single Lane Flap Barrier Gate |
| Dimensions | 1200 × 300 × 1000mm |
| Housing Material | SUS304 Stainless Steel |
| Housing Thickness | 1.0mm + 1.2mm |
| Passage Width | 550mm |
| Detection System | Infrared (IR) sensors, anti-tailgating |
| Alarm System | Triggers on wrong-direction or forced entry |
| Auto-Close Time | 3 seconds after inactivity |
| Emergency/Fail-Safe Mode | Flap auto-opens on power failure or fire alarm |
| Signal Response | Patented quick-response system |
| Usage Environment | Indoor (offices, banks, institutions) |
| Compatible Access Methods | RFID, biometric, face recognition |
| Certifications | ISO 9001, CE, RoHS, Fire Safety Mechanism Approved |
Pricing depends on quantity and project scope. DigiMark distributes NexaKey directly, so genuine dealer and project rates are available — tap Get Best Price or WhatsApp 01979234342 for a same-day quote.
Yes. NexaKey is distributed and supported directly by DigiMark Solution. Every unit is genuine, carries an official warranty, and is backed by nationwide installation and after-sales support.
Yes — its housings align to build several fast flap lanes side by side for large entrances.
Large corporate buildings, stadiums, and transit hubs need high-volume, fast entry.
Yes, add more lane-builder units as throughput demand grows.
Tell us your query and whether you need the complete kit — our engineers will specify and quote the same day.
