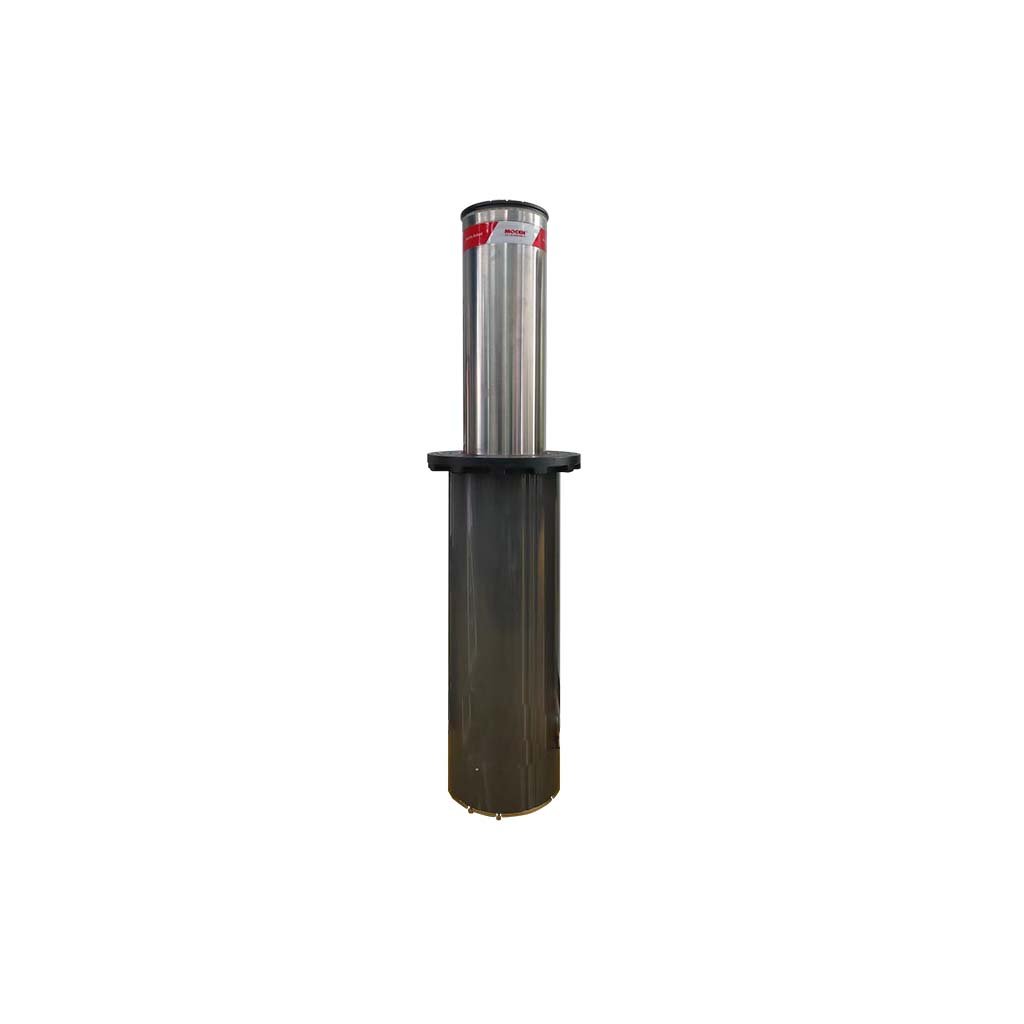

The Nexakey NX-BOL600 automatic bollard is a hydraulic-driven security barrier designed to block unauthorized vehicle entry at high-security and high-traffic sites across Bangladesh. Built with a 219mm-diameter, 6mm-thick 304 stainless steel column, it withstands impact while delivering fast, controlled raising and lowering through an integrated electro-hydraulic power unit.
This automatic hydraulic bollard combines structural strength with smooth automation, making it a reliable choice where manual barriers fall short. The IP68 protection means it performs consistently through monsoon rain and dust, while the stainless steel build resists corrosion and long-term wear — reducing maintenance costs for facility managers.
“We installed three NX-BOL600 units at our embassy entrance in Dhaka – they’re fast, durable, and work perfectly even during rain. The LED warning lights are highly visible at night. Highly recommended.”
— Md. Rahman, Facility Manager, Foreign Diplomatic Mission
“We’ve been using Nexakey hydraulic bollards at our commercial complex for over 10 months. The response time is excellent, and it performs well under heavy traffic. Great product and reliable service from Digi-Mark.”
— Engr. Sharmin Jahan, Admin, MetroPark Ltd.
For organizations needing dependable vehicle access control, the Nexakey NX-BOL600 automatic bollard delivers a rare combination of speed, durability, and weatherproof reliability. DigiMark Solution supplies it as an authorized Nexakey distributor, with genuine firmware, warranty, and trained installation engineers across Bangladesh.
DigiMark Solution has been Bangladesh's authorized Nexakey distributor. Every Nexakey NX-BOL600 Automatic Bollard is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
| Specification |
ZKTeco Plock-1 First Generation Parking Lock
ZKTeco
|
ZKTeco PB4030 Parking Barrier
ZKTeco
|
ZKTeco TS1000 Pro Series Turnstiles
ZKTeco
|
Current Item
Nexakey NX-BOL600 Automatic Bollard
Nexakey
|
|---|---|---|---|---|
|
Material
|
SPCC steel | - | - | - |
|
Control distance
|
≤20m | - | - | - |
|
Arm rising time/falling time
|
≤6s | - | - | - |
|
Altitude after rising
|
390mm | - | - | - |
|
Altitude after dropping
|
75mm | - | - | - |
|
Operating temperature
|
-10°C ~+55°C | - | - | - |
|
Power supply
|
LR20 alkaline dry battery recommended (D x 4) | - | - | - |
|
Rated Voltage
|
DC6V | - | - | - |
|
Quiescent current
|
≤1mA | - | - | - |
|
Operating current
|
≤0.9A | - | - | - |
|
Size
|
390mm x 460mm x 75mm | - | - | - |
|
Weight
|
8KG | - | - | - |
|
Boom type
|
- | Telescopic boom | - | - |
|
Boom length
|
- | 4m / 6m | - | - |
|
Opening /closing time
|
- | 3s / 6s | - | - |
|
Supply voltage
|
- | 110V AC or 220V AC | - | - |
|
Power consumption
|
- | 120W | Running Standby | - |
|
Frequency
|
- | 50 – 60Hz | - | - |
|
Cabinet material
|
- | Powder coated steel | SUS304 Stainless Steel | - |
|
Boom material
|
- | Aluminum alloy | - | - |
|
Working temperature range
|
- | -20°C ~ +60°C | - | - |
|
Working humidity range
|
- | ≤90% | - | - |
|
Housing dimensions
|
- | 328 (D)*286 (W)*934 (H) mm | - | - |
|
Packing dimensions
|
- | 460 (D)*420 (W)*1150 (H) mm | - | - |
|
Power requirements
|
- | - | AC110V/220V, 50/60Hz | - |
|
Working temperature
|
- | - | -28 °C to 60 °C | - |
|
Working humidity
|
- | - | 5% to 80% | - |
|
Working environment
|
- | - | Indoor/Outdoor (if sheltered) | - |
|
Speed of throughput
|
- | - | RFID Fingerprint | - |
|
Lane width(mm)
|
- | - | 500 | - |
|
Footprint(mm*mm)
|
- | - | 520*810 | - |
|
Dimension(mm)
|
- | - | L=520, W=310, H=1010 | - |
|
Dimension with packing(mm)
|
- | - | L=570, W=365, H=1080 | - |
|
Net weight(kg)
|
- | - | 36 | - |
|
Weight with packing(kg)
|
- | - | 50 | - |
|
LED indicator
|
- | - | Y | - |
|
Lid material
|
- | - | SUS304 Stainless Steel | - |
|
Barrier material
|
- | - | SUS304 Stainless Steel | - |
|
Barrier movement
|
- | - | Rotation | - |
|
Emergency mode
|
- | - | Y | - |
|
Security level
|
- | - | Medium | - |
|
Mean cycles between failure (MCBF)
|
- | - | 1 million | - |
|
Options/Accessories
|
- | - | Counter, SUS316 Cabinet and Lid, Remote Control | - |
|
Specification
|
- | - | - | Value |
|
Model
|
- | - | - | NX-BOL600 |
|
Product Type
|
- | - | - | Automatic Hydraulic Bollard |
|
Blocking Height
|
- | - | - | 600mm (±5mm) |
|
Rise Time
|
- | - | - | ≤4 seconds |
|
Column Build
|

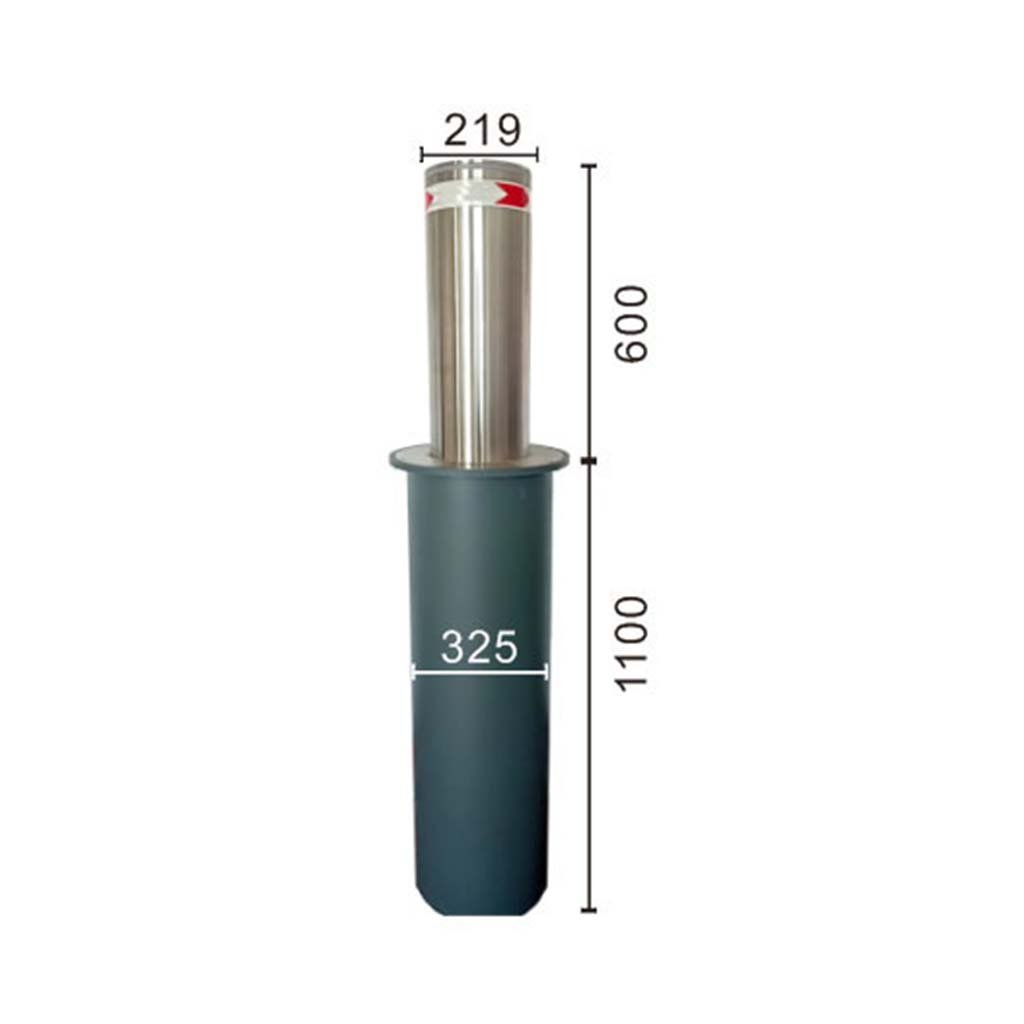

- | - | - | 304 stainless steel, 219mm dia., 6mm thick |
|
Protection Rating
|
- | - | - | IP68 (dust & waterproof) |
|
Operating Temp
|
- | - | - | -30°C to +60°C (optional -45°C module) |
|
Embedded Depth
|
- | - | - | 1100mm (±5mm) |
|
Foundation Depth
|
- | - | - | 1100 mm |
|
Warning Light
|
- | - | - | Integrated LED Warning Light Strip |
|
Reflective Strip
|
- | - | - | High-Reflectivity Safety Film |
|
Drive Unit
|
- | - | - | Integrated Electro-Hydraulic Power Unit |
|
Application
|
- | - | - | Vehicle Access Control & Security |
|
Installation
|
- | - | - | Underground Embedded |
|
Suitable For
|
- | - | - | Government Facilities, Commercial Buildings, Industrial Sites, Residential Complexes, Parking Areas, Restricted Zones |
| Attribute / Feature | Specification Details |
|---|---|
| Specification | Value |
| Model | NX-BOL600 |
| Product Type | Automatic Hydraulic Bollard |
| Blocking Height | 600mm (±5mm) |
| Rise Time | ≤4 seconds |
| Column Build | 304 stainless steel, 219mm dia., 6mm thick |
| Protection Rating | IP68 (dust & waterproof) |
| Operating Temp | -30°C to +60°C (optional -45°C module) |
| Embedded Depth | 1100mm (±5mm) |
| Foundation Depth | 1100 mm |
| Warning Light | Integrated LED Warning Light Strip |
| Reflective Strip | High-Reflectivity Safety Film |
| Drive Unit | Integrated Electro-Hydraulic Power Unit |
| Application | Vehicle Access Control & Security |
| Installation | Underground Embedded |
| Suitable For | Government Facilities, Commercial Buildings, Industrial Sites, Residential Complexes, Parking Areas, Restricted Zones |
Pricing depends on quantity and project scope. DigiMark distributes NexaKey directly, so genuine dealer and project rates are available — tap Get Best Price or WhatsApp 01979234342 for a same-day quote.
Yes. NexaKey is distributed and supported directly by DigiMark Solution. Every unit is genuine, carries official warranty, and is backed by nationwide installation and after-sales support
It retracts into the ground to let approved vehicles pass and rises to block others on command.
Building forecourts, pedestrian zones, embassies, and high-security entrances needing strong vehicle control.
Yes — a steel bollard offers far greater physical resistance to forced vehicle entry than a boom.
Tell us your query and whether you need the complete kit — our engineers will specify and quote the same day.
