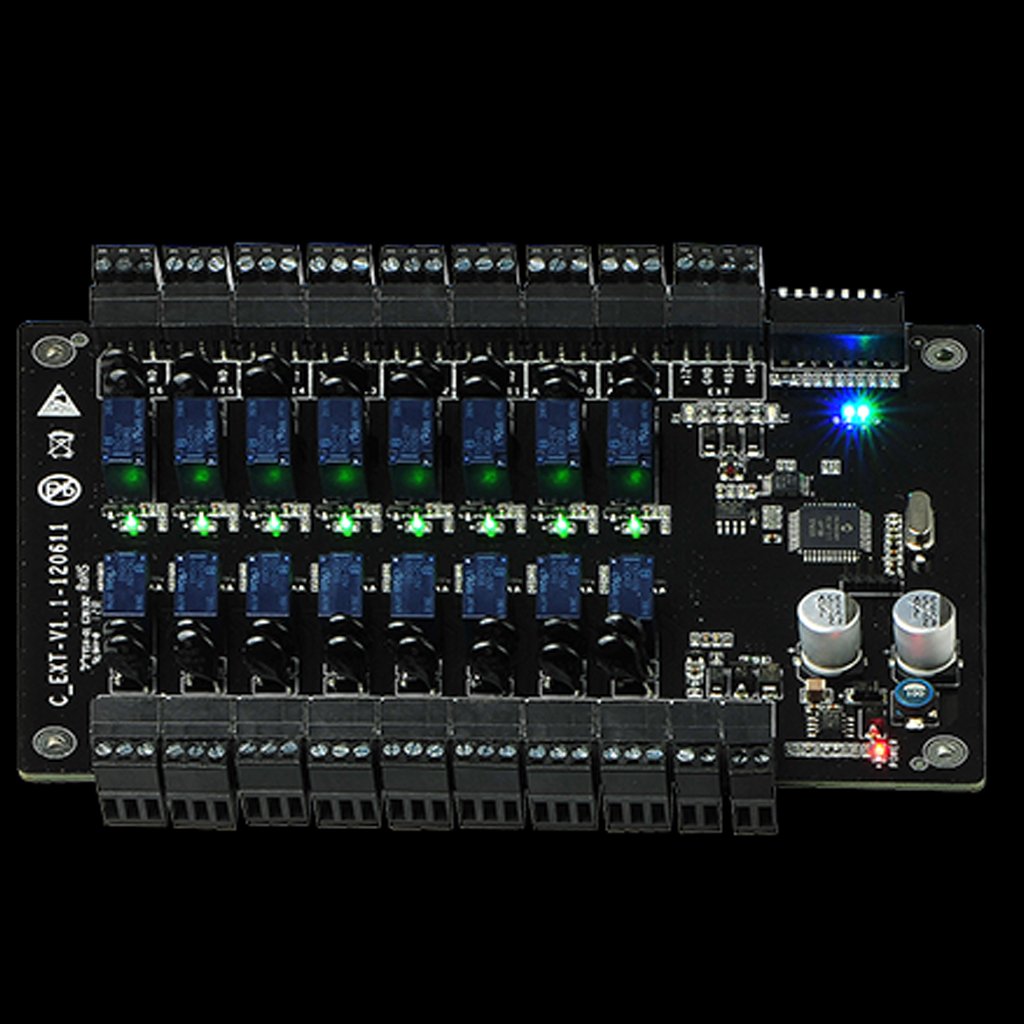

ZKTeco EX16 elevator control floor extension boards

ZKTeco EX16 Elevator Floor Extension Board – Scalable Elevator Access Control in Bangladesh

Enhance your building’s security and control with the ZKTeco EX16 Elevator Floor Extension Board. Designed for high-rise residential apartments, commercial buildings, offices, and hotels in Bangladesh, this powerful expansion module allows precise floor access restriction, ensuring only authorized users reach specific floors.

The ZKTeco EX16 is an advanced elevator control floor extension board that works seamlessly with the ZKTeco EC10 Elevator Control Panel. It adds control for up to 16 additional floors per board. One EC10 panel supports up to 3 EX16 boards, enabling control of up to 58 floors in total — perfect for modern multi-story buildings in Dhaka and across Bangladesh.

Key Features of ZKTeco EX16

• 16 Floor Control Relays: Restricts access to up to 16 floors per EX16 board
• Scalable Solution: Combine 1 EC10 + 3 EX16 for total 58-floor control
• RS485 Communication: Reliable and stable connection between EC10 and EX16 boards
• Easy DIP Switch Addressing: Simple configuration and installation
• Secure Access Integration: Works with fingerprint readers, RFID cards, and PIN codes
• Centralized Management: Full integration with ZKTeco access control software for real-time monitoring and reporting
• Compact & Durable Design: Professional metal casing option available for reliable long-term operation

Technical Specifications

• Floor Button Control Relay: 16
• Communication: RS485 (to EC10)
• Max EX16 per EC10: 3
• Power Supply: 12V DC
• Dimensions: 242mm × 95mm × 60mm (L×D×H)
• Installation: DIN rail or wall mount friendly

Why Choose ZKTeco EX16 for Your Project?

• Enhanced Security: Prevent unauthorized access to restricted floors (e.g., office floors, penthouses, or service levels)
• Cost-Effective Scalability: Expand your elevator access control system without replacing the main controller
• Ideal for Bangladesh Buildings: Perfect for apartments, commercial towers, hospitals, and educational institutions facing frequent power and environmental challenges
• Professional Integration: Supports time-based access schedules, visitor management, and anti-passback features
