PA & Conference System D6223 Desktop Chairman Speech Unit
D6223 Desktop Chairman Speech Unit
D6223 Desktop Chairman Speech UnitD6223 Desktop Chairman Speech Unit

D6223 Desktop Chairman Speech Unit

not inserted
Price 0
Status In stock
Product Code PR01198
Model D6223

    • Speech-only conference unit
    • Built-in magnet HiFi speaker
    • On/off button and chairman priority button
    • Conference check-in function
    • Automatic camera tracking function when used with camera
    • Removable gooseneck.

Hotline: 01979234344 | Corporate: 01979234316
Download Brochure
Share On :
Last Modified On: 27-11-2023

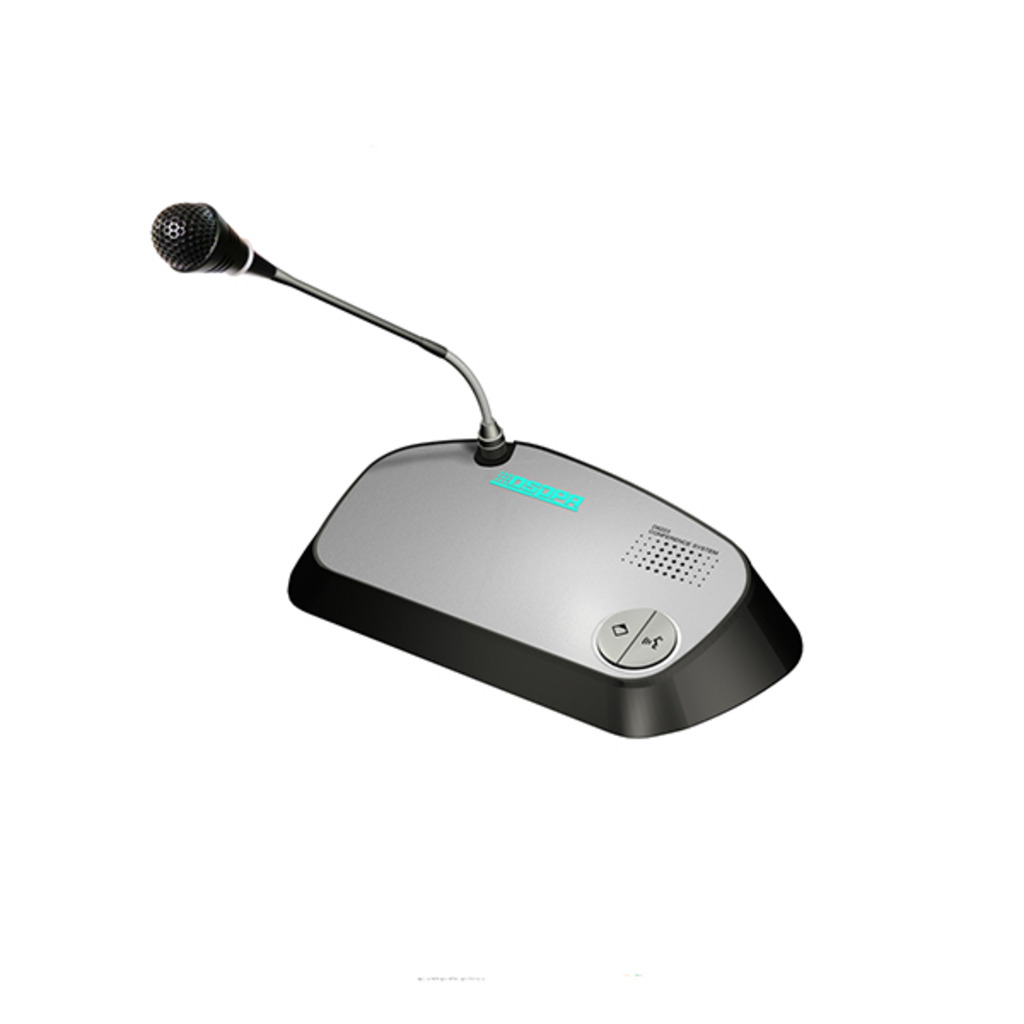

D6223 Desktop Chairman Speech Unit provides functions such as speech, check-in, and self-checking. It adopts a goose-neck microphone, built-in magnetic loudspeaker, and headphone jack, and also provides power-on indicating light and button and light indicators.

In VOICE mode, this chairman microphone can realize the voice controller on/off function. It has high-speed digital processors and HiFi audio circuits and can indicate the work status of the LCD screen. The chairman unit has the priority to deliver speeches and the authority to approve speech applications from delegates. It has the full authority to take control of the discipline at the conference site; in a D62 series digital conference system, it allows 2 chairman units at the same time, and the position of chairman units is free from position restrictions. Conference units are passive equipment and are powered by controllers. The chairman microphone input voltage is 24V; they are easy to use, with a clear voice, and easy to install with a fashionable appearance.

Model D6223
Structure and Type Desktop
Output frequency response 45Hz-18kHz
Speaker Power 1.5W
Static power consumption <1W
Max. power consumption 2W
SNR >80dB
Crosstalk Attenuation >80dB
Harmonic distortion <0.5%
Type of microphone Electret, heart-shaped, condenser type
Frequency response 40Hz-20kHz
Equivalent Noise 20dB (SPL)
Input impedance 2kΩ
Max SPL 125dB (THD<3%)
