PA & Conference System DSPPA D5815 True Diversity Wireless Microphone
DSPPA D5815 True Diversity Wireless Microphone
DSPPA D5815 True Diversity Wireless MicrophoneDSPPA D5815 True Diversity Wireless MicrophoneDSPPA D5815 True Diversity Wireless Microphone

DSPPA D5815 True Diversity Wireless Microphone

not inserted
Price 0
Status In stock
Product Code PR01259
Brand DSPPA
Model D5815
Features

    ● Dual-channel PLL design.
    ● UHF200 channel PLL digital lock automatic communication function.
    ● Adopt IR frequency pairing.
    ● With display screen (to display frequency, channel, squelch, level, etc.).
    ● With volume control for each channel.
    ● AF output (using “XLR” sockets for separate output and mixed output).



Hotline: 01979234344 | Corporate: 01979234316
No Brochure
Share On :
Last Modified On: 07-03-2024

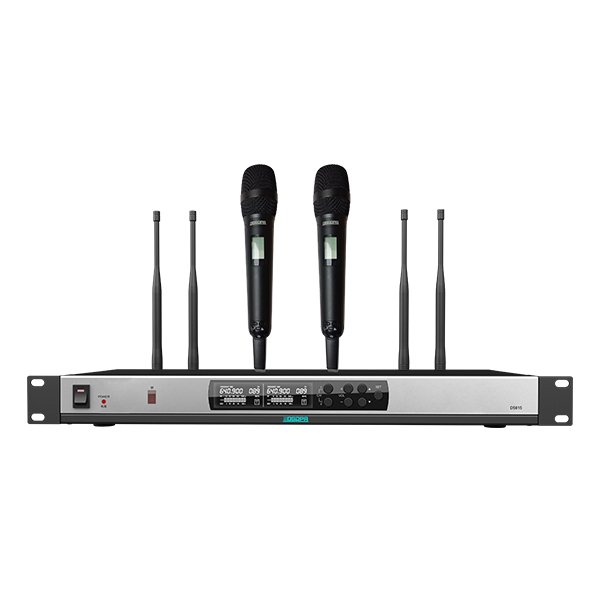

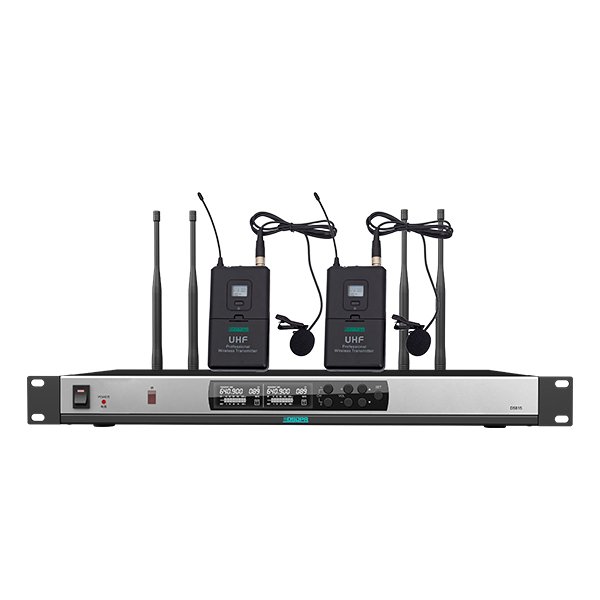

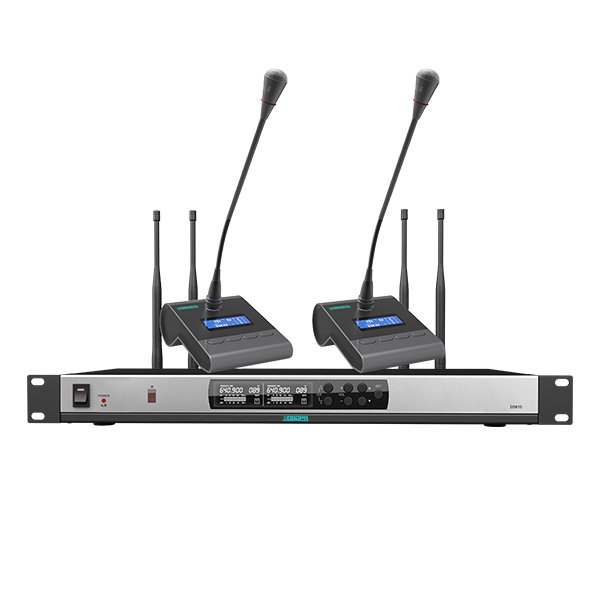

D5815 D5821 D5822 D5823 D5824 True Diversity Wireless Microphone.This product is a professional wireless microphone system. D5815 is the wireless microphone receiver, which can be combined with several kinds of transmitters to form a wireless microphone system. The combination set includes D5821 (UHF Wireless Microphone System+2 Handheld Wireless Microphones), D5822 (UHF Wireless Microphone System+2 Clip Wireless Microphones+2 Waistband Transmitters), D5823 (UHF Wireless Microphone System+2 Headset Wireless Microphones+2 Waistband Transmitters), and D5824 (UHF Wireless Microphone System+2 Desktop Wireless Microphones).

System Index Parameters
Frequency Range 632-661.25MHz
Number of Channels 100
Frequency Step 250KHz
Dynamic Range 82dB
Maximum Frequency Deviation ±45KHz
Audio Frequency Response 120Hz-15KHz (±3dB)
SNR >70dB
Distortion ≤1%
Working Temperature -10℃-+40℃
Effective Range Maximum 300m (in open environment)
Wireless Interface BNC/50Ω
Sensitivity -100dBm
Display Method Display screen
