DSPPA D5811 D5812 D5813 D5814 PA True Diversity Wireless Series

DSPPA D5811 D5812 D5813 D5814 True Diversity UHF Wireless Microphone System

The DSPPA D58 Series is a professional-grade wireless microphone system designed for high-performance audio transmission across events, conferences, meetings, and broadcasting applications. Built with True Diversity UHF technology, this system ensures clear, stable, and interference-free audio over long distances—up to 300 meters in open environments.

Key Features:

• True Diversity UHF Wireless System: Ensures stable signal transmission with anti-interference capabilities.
• Dual-Channel PLL Design: Offers 100 channels with 250KHz steps for flexible frequency adjustment.
• IR Frequency Pairing: Enables fast and easy transmitter-receiver synchronization.
• LCD Display: Shows frequency, channel, squelch, and signal levels for real-time monitoring.

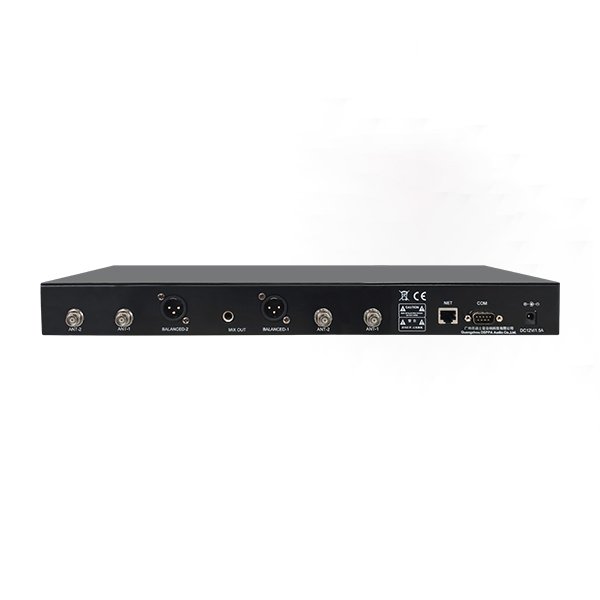

• Separate and Mixed Outputs: XLR outputs for each channel and a mixed output for convenience.

Multiple Microphone Options:

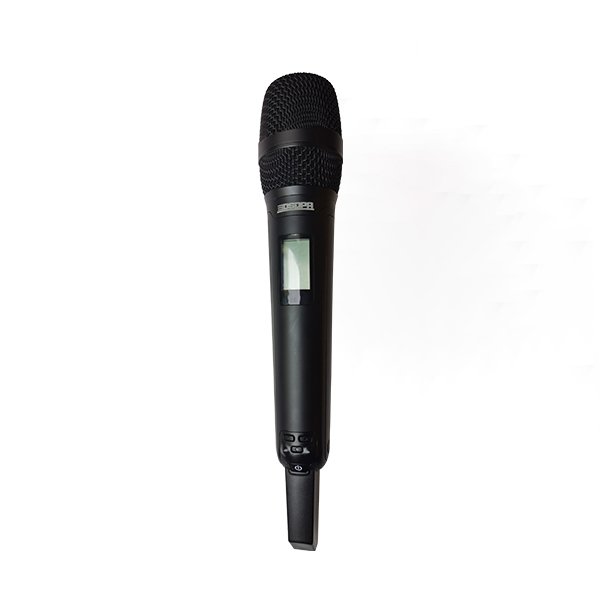

• D5811: Handheld Microphone

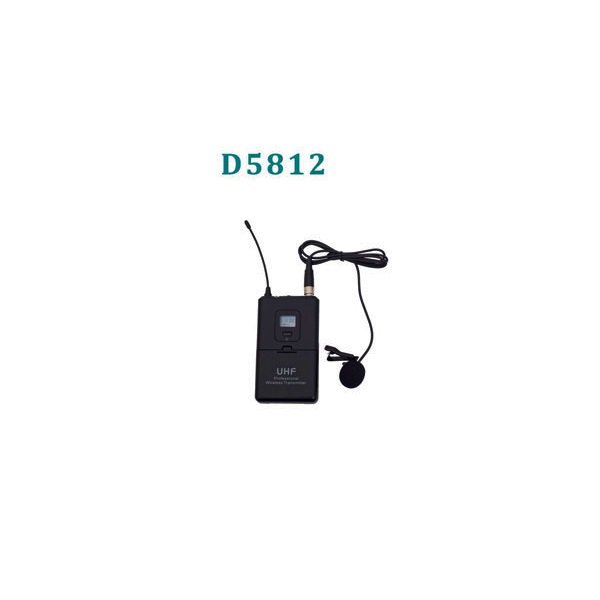

• D5812: Clip (Lavalier) Microphone

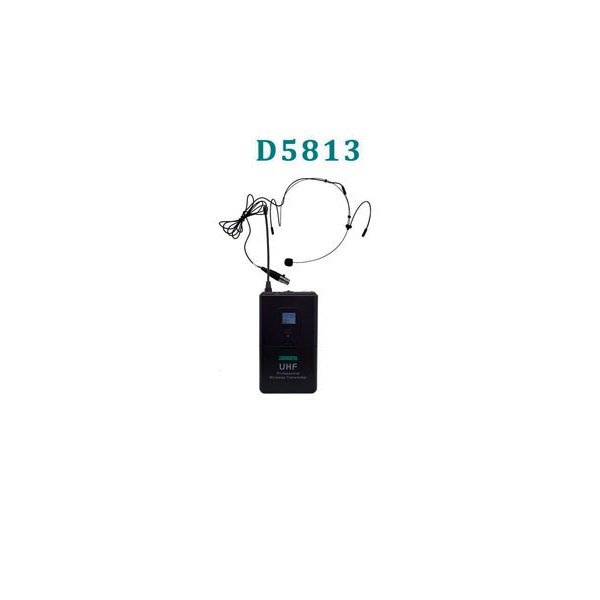

• D5813: Headset Microphone

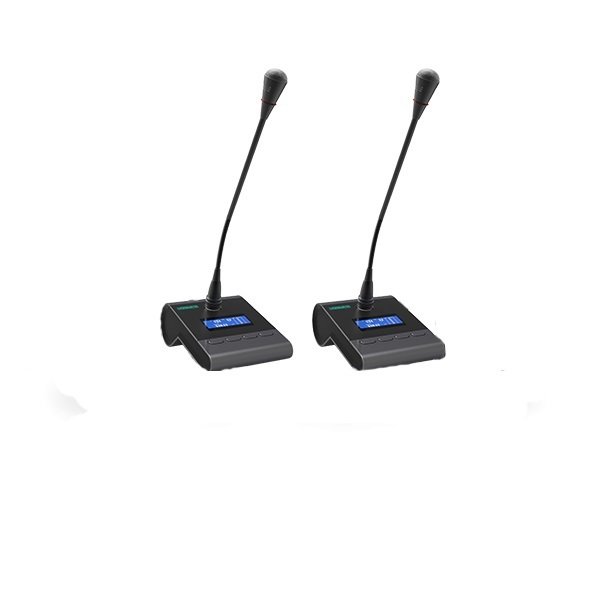

• D5814: Desktop Microphone

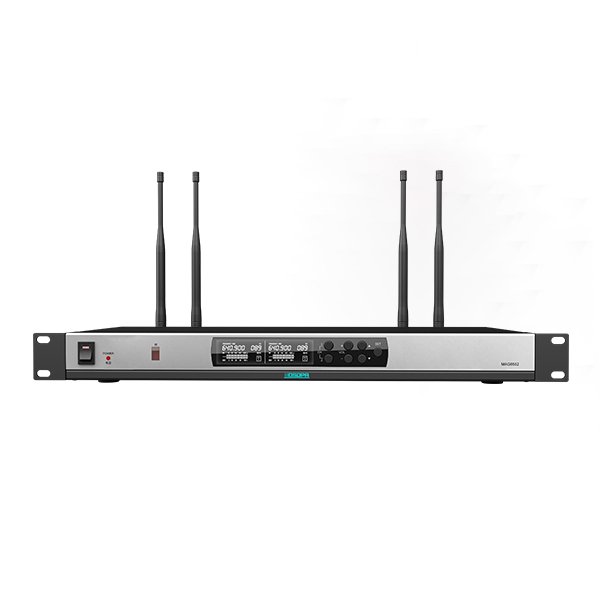

• D5815: Dual-channel Receiver
• D5821–D5824: Combo sets with 2 microphones of each type

Technical Specs:

• Frequency Range: 632–661.25 MHz
• Dynamic Range: 82 dB
• SNR: >70 dB
• Audio Frequency Response: 120Hz–15KHz
• Battery Life: Up to 15 hours (low power), 10+ hours (high power)
• Operating Temperature: -10°C to +40°C
• Receiver Power: DC 12V, 600mA
• Output Power: High (14dBm) / Low (6dBm)

Available Sets:

1. D5821: 2 Handheld Wireless Microphones
2. D5822: 2 Clip Mics + 2 Waistband Transmitters
3. D5823: 2 Headset Mics + 2 Waistband Transmitters
4. D5824: 2 Desktop Wireless Microphones

Applications:

• Conference Rooms
• Auditoriums
• Houses of Worship
• Corporate Meetings
• Educational Institutions
• Broadcast Studios
• Live Performances

Price range in BD

The price range in Bangladesh for the DSPPA D5811–D5824 True Diversity Wireless Microphone System is approximately:

1. Single Microphone Units (D5811, D5812, D5813, D5814): BDT 18,000 – 28,000
2. Dual Channel Receiver (D5815): BDT 35,000 – 42,000
3. Complete Combo Sets (D5821 – D5824): BDT 55,000 – 75,000

Professional True Diversity Wireless Microphone System

Special Offer at Digi-Mark

• Up to 10% Discount on selected microphone models
• 1-Year Warranty with after-sales support
• Expert Installation Guidance available
• Dedicated Customer Support for any technical help

Certifications

• CE Certified – Meets EU safety, health & environmental protection standards
• FCC Certified – Complies with U.S. Federal Communications Commission regulations
• RoHS Compliant – Free from hazardous substances, environmentally safe
• ISO 9001 Certified – Manufactured under a certified quality management system
• CCC Certified – China Compulsory Certification for product safety

Testimonial

“We’ve used the DSPPA D5821 system for several corporate seminars—crystal-clear audio, no dropouts, and simple setup. It’s now our go-to wireless microphone system for all events.”
— Event Manager, Dhaka Convention Hall

FAQ

Q1: What is the range of this wireless microphone system?
A: Up to 300 meters in open environments.

Q2: How many microphones can be used with the D5815 receiver?
A: It supports 2 microphones (handheld, clip, headset, or desktop, depending on the model).

Q3: Is frequency interference an issue?
A: No. It features a 200-channel UHF PLL system with automatic frequency locking and IR syncing.

Q4: How long do the batteries last?
A: Over 10 hours on high power, and up to 15 hours on low power (with AA batteries).

Q5: Can it be used for large events?
A: Yes. It’s suitable for conferences, auditoriums, schools, worship centers, and outdoor events.
