How to Design a CCTV Layout for Office, Warehouse, and Parking Area (2026 Guide)

Designing an effective CCTV layout is crucial for maximum security coverage, minimising blind spots, and ensuring clear footage in offices, warehouses, and parking areas. A well-planned system deters theft, monitors employee safety, records incidents, and provides evidence when needed.
Whether you're securing a small Dhaka office, a large industrial warehouse, or an open parking lot in Bangladesh, follow these practical steps and best practices.

Step 1: Assess Your Security Needs & Conduct Site Survey

Before placing any camera:

Identify high-risk areas (entrances, exits, cash counters, storage zones, vehicle entry points)
Note potential blind spots, lighting conditions (day/night), and obstructions
Determine required features: night vision (IR), wide angle, PTZ (pan-tilt-zoom), weatherproofing for outdoor use
Decide on recording: continuous, motion detection, or event-based

Pro tip: Always plan for overlapping coverage (at least 20-30%) to eliminate blind spots.

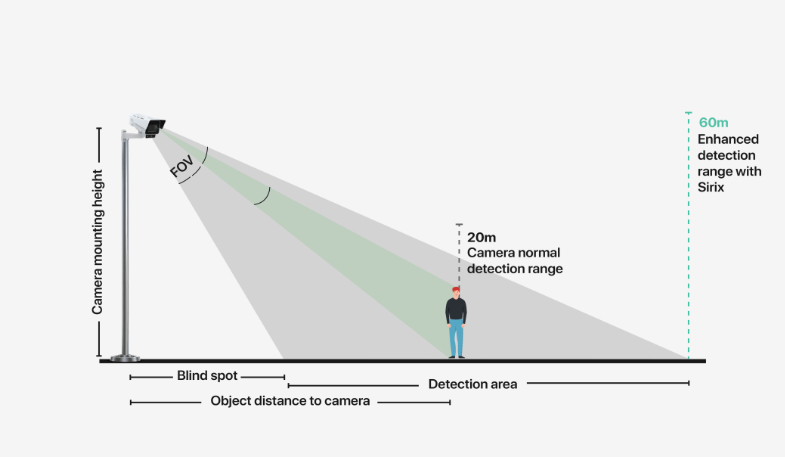

Here’s a great illustration showing optimal camera height and detection range:

CCTV Layout for Office Spaces

Office environments need discreet monitoring of entrances, hallways, reception, open workspaces, server rooms, and parking access.
Recommended Camera Placement:

Main entrance/exit: 1-2 bullet or dome cameras (wide angle, 4MP+)
Reception & waiting area: Dome camera on ceiling
Corridors & stairwells: Bullet cameras every 15-20 meters
Open workspaces: Ceiling-mounted dome cameras (avoid direct face-on placement for privacy)
Server room/back office: Additional internal camera

Real-world office examples with ceiling-mounted dome cameras:

CCTV Layout for Warehouses

Warehouses require high-mounted cameras to cover large areas, aisles, loading docks, storage racks, and perimeter.
Key Placement Tips:

Install cameras at 3-5 meter height for maximum coverage
Use bullet cameras for long aisles and loading bays
Dome cameras for indoor open spaces
Cover all entry/exit points, including gates and roll-up doors
Add PTZ cameras for remote monitoring of large open areas
Ensure IR night vision reaches 30-50 meters

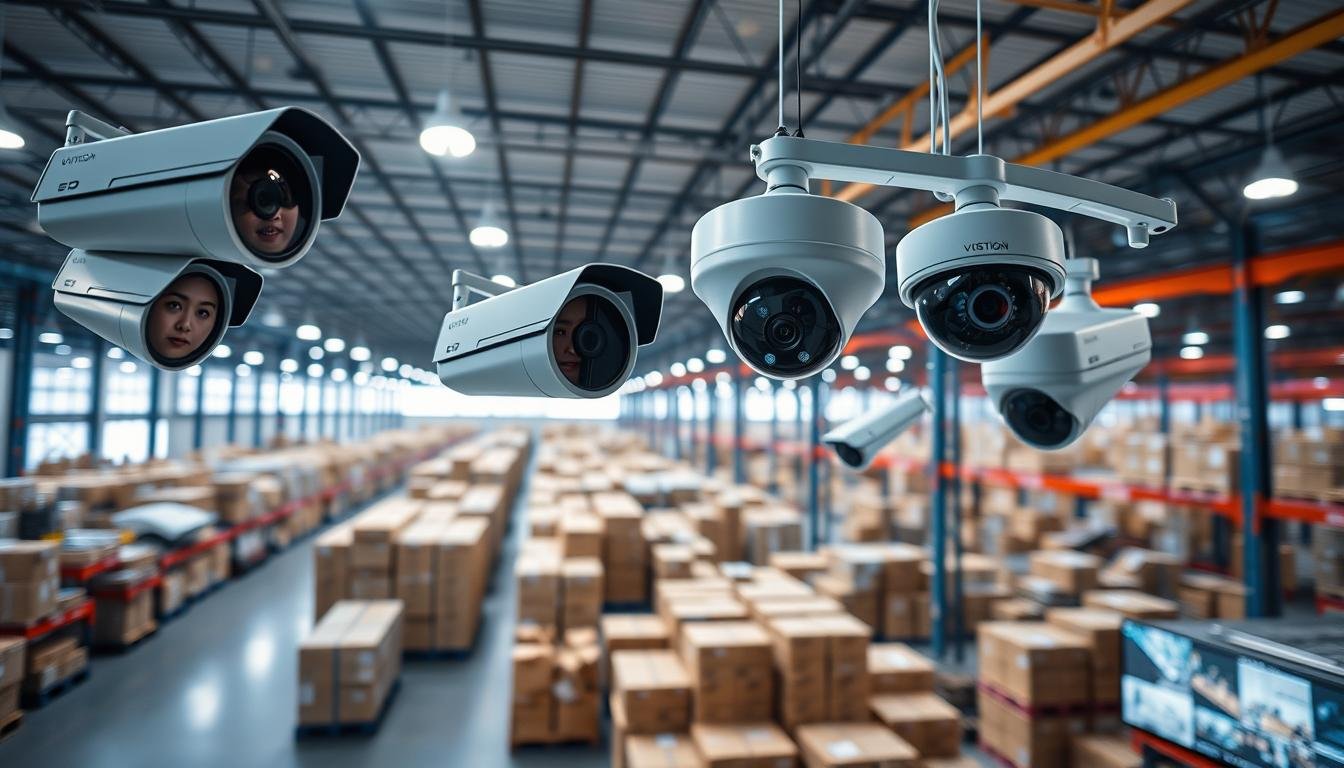

Warehouse interior with high-mounted bullet and dome cameras:

Step 2: Choose the Right Equipment

Cameras: 4MP or 8MP resolution, H.265 compression
NVR/DVR: Match the number of channels to cameras + extra for future expansion
Storage: 1-4TB HDD per 8 cameras (for 30-day recording)
Cabling: Use Cat6 for PoE IP cameras (simplifies power & data)
Power: PoE switches or individual adapters

Modern control room setup displaying multiple CCTV feeds:

Final Tips for a Perfect CCTV Design in Bangladesh

Always plan redundancy — extra coverage at critical points
Use weatherproof IP67 cameras for outdoor/parking
Integrate mobile app access for remote viewing
Comply with local privacy laws (avoid recording private areas unnecessarily)
Get professional installation for wiring and configuration

A properly designed CCTV system gives peace of mind and real protection. Start with a simple floor plan sketch, mark camera positions, ensure overlap, and choose quality equipment from trusted brands like Hikvision, Dahua, ZKTeco.
