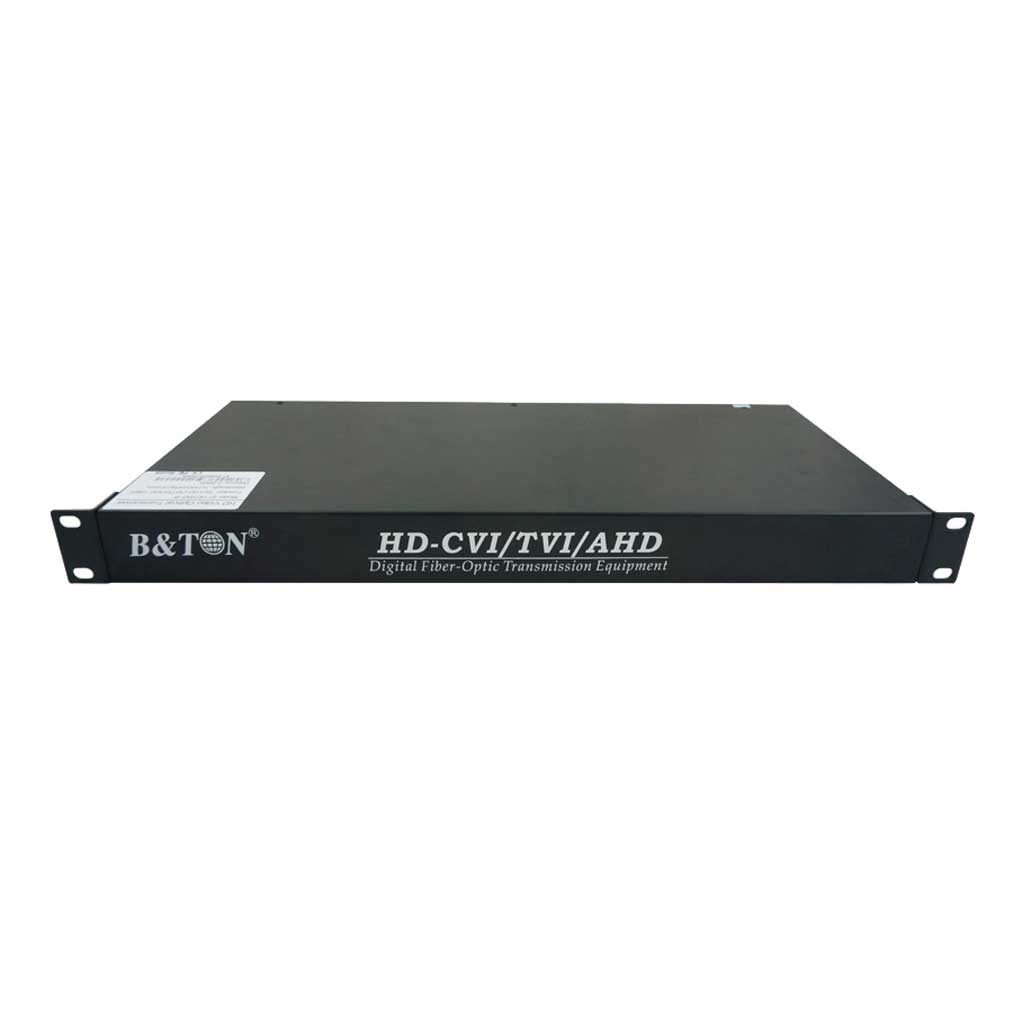

Security Surveillance B&TON BT-HD16V1DF 16CH HD Video Transceiver Over Fiber
B&TON BT-HD16V1DF 16CH HD Video Transceiver Over Fiber
B&TON BT-HD16V1DF 16CH HD Video Transceiver Over FiberB&TON BT-HD16V1DF 16CH HD Video Transceiver Over FiberB&TON BT-HD16V1DF 16CH HD Video Transceiver Over Fiber

B&TON BT-HD16V1DF 16CH HD Video Transceiver Over Fiber

not inserted
Price 0
Status Call For Price
Product Code PR00528
Brand B&TON
Model BT-HD16V1DF 16CH HD Video Transceiver Over Fiber
Features

    •  Loss-less real time non-compression transmission
    • Self-adaptive output HD-TVI/CVI/AHD signal
    • Fully enclosed dust-proof design
    • 720/960/1080P resolution

Hotline: 01979234344 | Corporate: 01979234319
Download Brochure
Share On :
Last Modified On: 13-07-2024

B&TON BT-HD16V1DF Video Transceiver Over Fiber

BT-HD16V1DF 16CH HD Video Transceiver Over Fiber is a highly advanced and versatile solution designed for transmitting high-definition video, audio, data, telephone, and Ethernet signals over long distances with exceptional clarity and reliability. This transceiver supports both multi-mode and single-mode fiber types, offering flexibility in choosing the right optical medium for your specific needs. The Fiber Connectors, which include FC, ST, and optional SC connectors, ensure seamless connectivity. One of its standout features is its impressive transmission distance, spanning from 0 to 100 km, making it ideal for applications where signals need to travel over extensive distances. The transceiver operates across various wavelengths, providing options such as Tx1310/Rx1550nm, Tx1490/Rx1550nm (for distances greater than or equal to 40 km), and Tx1550/Rx1310nm, Tx1550/Rx1490nm (for the same extended distances). With an input level greater than 500mVp-p and self-adaption cable equilibrium capabilities, it ensures consistent signal quality, accommodating 720p and 1080p resolutions over 75-5 coaxial cable up to 500m and 300m, respectively. The 16-channel BNC connectors offer comprehensive connectivity for video transmission. This transceiver operates at a baud rate ranging from 1200 to 9600 bit/s and boasts a minimal Bit Error Rate (BER) of less than or equal to 10, ensuring data integrity and accuracy. It functions in half-duplex mode and provides indicators for LOS (Loss of Signal), PWR (Power), DATA, and VIDEO, allowing for quick diagnostics. With an impressive Mean Time Between Failures (MTBF) exceeding 100,000 hours, it proves its reliability in mission-critical applications. The transceiver operates on DC5V power with a power consumption of less than 5W, making it energy-efficient. It can function effectively in a wide range of environmental conditions, with an operational temperature range from 0°C to 70°C and an operational humidity range from 10% to 90%. It can withstand atmospheric pressures between 86kpa to 106kpa and can be conveniently wall-mounted. Beyond video and data transmission, this transceiver offers additional functionalities. For data transmission, it supports various encoded types such as RS485, RS422, RS232, and Manchester encoding. It operates at data rates of up to 300Kbps with low BER. Audio transmission is supported with options including Terminal Blocks, RCA, 3.5mm, and XLR connectors. The transceiver offers high-quality audio with a signal-to-noise ratio (S/N) of ≥85dB and a wide bandwidth of 20Hz to 20kHz. Moreover, it includes telephone and Ethernet interfaces. The telephone connection via RJ11 supports bandwidth up to 8kHz and features call-showing and H-F support. The Ethernet interface with an RJ45 connector complies with IEEE802.3 standards, offering data rates of 10M/100Mbps and a bandwidth of 25M. Additionally, the transceiver supports contact closure, enabling various alarm outputs and data interfaces, including TTL, RS232/485/422, or relay output. Overall, the BT-HD16V1DF 16CH HD Video Transceiver Over Fiber is a versatile and dependable solution for transmitting multiple types of signals over long distances, making it a valuable addition to surveillance, broadcasting, and industrial applications.

Digi-Mark Solution authorized  distributor of B&T in Bangladesh. You can buy the BT-HD16V1DF HD Video Transceiver Over Fiber at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

Feature

Description

Optical

Fiber Type

Multi-mode fiber or Single mode fiber

Fiber Connector

FC,ST/SC(optional)

Distance

0~100km (Optional)

Wavelength

Transmitter
Tx1310/ Rx1550nm;Tx1490/Rx1550nm(≥40km)
Receiver Tx1550/Rx1310nm;Tx1550/Rx1490nm(≥40km)







Tx

Input level

>500mVp-p

self-adaption cable equilibrium

720p:75-5 coaxial cable,500m
1080p:75-5 coaxial cable,300m

Input/Output Impedance

75Ω

Physical Interface

16channel BNC connector



Rx

Output level

1Vp-p

Input/Output Impedance

75Ω

Physical Interface

16channel BNC connector















General

Transmission Media

Coaxial cable

Baud Rate

1200~9600bit/s

Bit Error Rate

≦10

Operation Mode

Half-Duplex

Indicators

LOS,PWR,DATA,VIDEO

Mean time between failures (MTBF)

>100 000 hours

EPS

DC5V

Power Consumption

≦5W

Operation Temperature

0℃~70℃

Operation Humidity

10%~90%

Atmospheric Pressure

86kpa~106kpa

Mounting Method

Wall-mounted


Customized Functions

Data

Physical interface: Industrial standard terminal

Encoded type: RS485/RS422/RS232/Manchester

Data Rate: DC~300Kbps

Operating mode: Reverse simplex/half-duplex

BER: <10-9

Audio

Connector: Terminal Blocks, RCA/3.5mm/XLR(optional)

Audio input / output impedance: 600Ω(Balance/ unbalance)

Audio input / output voltage: 2Vp-p (typical value)

Audio input / output level: 0dBm (typical value)

Video bandwidth: 20HZ~20KHZ

Audio digital encoded bandwidth: 24bit

Audio signal-to-noise ratio: S/N≥85dB

Telephone

Connector: RJ11

Bandwidth: 8KHZ

Features: support call-showing function; support H-F

Operating mode: Point to point hot-line mode / FXS-FXO

Ethernet

Connector: RJ45

Support mode: Half duplex or Full duplex

Standards: IEEE802.3

Data rate: 10M / 100Mbps

Bandwidth: 25M

Contact Closure

Physical connector: Industrial standard connector port



Alarm output: Support any type of active or passive alarm output

Data Interface: Support TTL, RS232/485/422 or relay output
