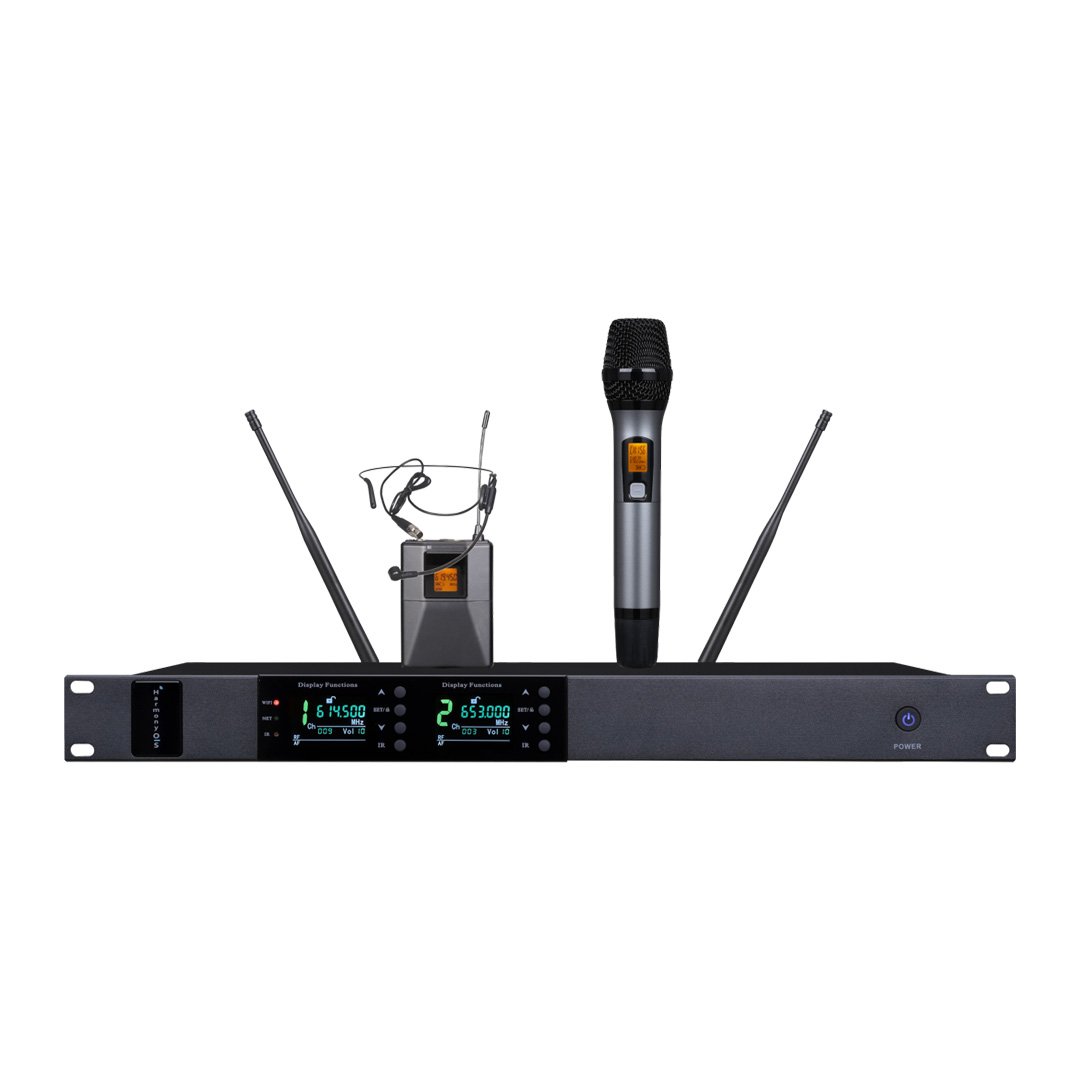

C-Yark C1002-A1 Dual Wireless Microphone System

C-YARK C1002-A1 One Drag Two Wireless Microphone System

The C-YARK C1002-A1 is a professional one-drag-two wireless microphone system designed for conferences, church services, stage events, and corporate presentations. It uses UHF 615–695 MHz FM transmission with digital pilot technology to provide accurate, low-latency audio and stable long-distance operation up to about 150 meters. With dual LCD screens, wide 100 Hz–15 kHz frequency response, low distortion, and support for multiple transmitter types, the C1002-A1 delivers clear, reliable sound for demanding speech and vocal applications.

Key features & benefits

• 5G WiFi wireless monitoring: A wireless communication network allows accurate, real-time monitoring of signal transmission status, keeping meetings smooth and interruption-free.
• ​Flexible microphone options: Supports handheld, lapel (collar clip), headset, and small-diaphragm chorus microphones; the belt-pack offers 12 V phantom power for large and small diaphragm mics.
• ​One‑drag‑two configuration: A single receiving host can pair with two transmitting units, ideal for two presenters, duet vocals, or host + guest setups.
• ​Wide RF range & capacity: Operates in the 615–695 MHz band with up to 150 m working distance; supports up to 200 channels, with system compatibility for 15 sets in simultaneous use.
• ​High audio quality: 100 Hz–15 kHz (±3 dB) frequency response, dynamic range over 110 dB, total harmonic distortion under 0.5%, and S/N over 100 dB for clean, detailed sound.
• ​Sensitive and selective reception: RF sensitivity at −98 dBm for a 30 dB S/N ratio and image rejection over 75 dB ensures stable reception even in RF‑noisy environments.
• ​Professional outputs: Provide four XLR balanced outputs plus one 1/4‑inch jack output; levels of about +10 dBV (XLR) and +8 dBV (1/4") with 3 kΩ output impedance for easy mixer/interface connection.
• ​Clear status display: Dual LCD screens show channel, frequency, and system status for quick setup and monitoring during events.
• ​Practical power & reliability: Runs on DC 12 V with about 12 W power consumption and 1000 mA working current; designed to operate in 0–50 °C environments.
