Security Surveillance Lilin DHD316A 16CH 720P Digital Video Recorder

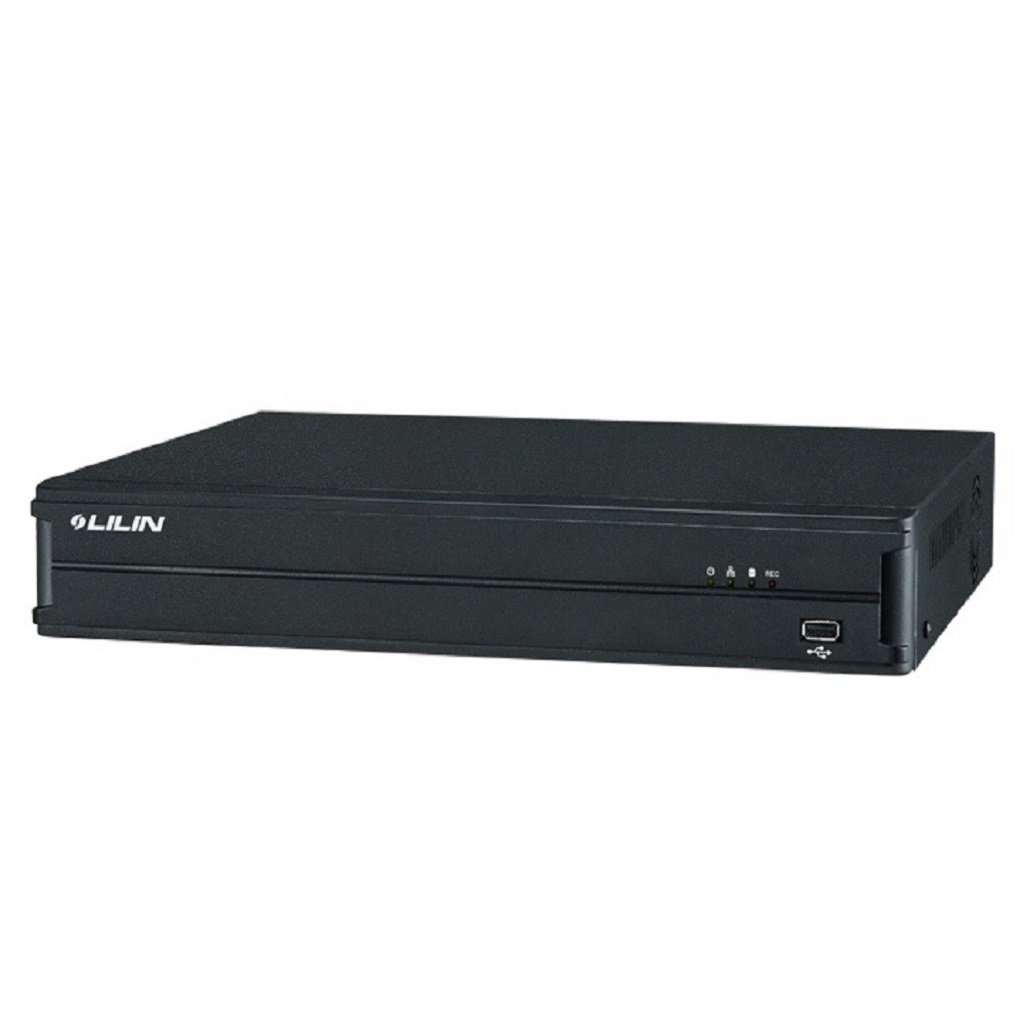

Lilin DHD316A 16CH 720P Digital Video Recorder

Price	0 ৳
Status	Stock Out
Product Code	PR01070
Brand	LILIN
Model	DHD316A

Features

16 Channel AHD High Definition Record
Compatible with 960H analog camera
UTC AHD camera supported
Each channel's independent record frame adjust
Video data transmitted distance up to 200~300M, depending on coaxial cable type

Hotline: 01979234344 | Corporate: 01979234316

Download Brochure

Share On :

Description

Last Modified On: 25-09-2023

Lilin DHD316 16CH 720P High Definition Video Recorder

Lilin DHD316A 16CH 720P Digital Video Recorder, a cutting-edge surveillance solution that combines advanced technology with versatility to meet all your security needs. This sleek and compact device, with its model number DHD316A, offers an extensive range of features that make it a standout choice for both personal and professional use. One of the standout features of the DHD316A is its support for a wide range of video inputs, including AHD and analog cameras. With 16 channels for video input, this DVR allows you to connect a multitude of cameras to monitor your surroundings effectively. It supports multiple resolutions, offering AHD 1080P and 720P, as well as analog camera resolutions like D1 and 960H. When it comes to video output, the DHD316A doesn't disappoint. It offers HDMI and VGA output at 1080P, ensuring you get crisp and clear visuals on your display. The split screen feature provides flexible viewing options, allowing you to choose from 1, 4, 9, 13, or 16 split divisions or even sequence mode. Plus, the digital zoom function lets you focus in on specific details during live viewing or playback. Privacy is essential, and this DVR offers a privacy masking feature with support for up to 4 masks per channel. The H.264 encoding ensures efficient recording, with recording resolutions ranging from CIF to 1080P, and the ability to record at impressive frame rates. The DHD316A offers various recording modes, including continuous, scheduled, and event-based recording, along with a comprehensive 7-day, 24-hour recording schedule. It even includes alarm event actions, such as adjustable motion detection, system alerts, and video loss notifications, which can be delivered via iOS, Android, email, FTP, or a built-in buzzer. For playback, you can search by event or time, and enjoy 16-channel synchronous playback at resolutions up to 1080P. The DVR also supports various backup options, including USB flash disks and network backup via HTTP. Connectivity is a breeze with the RJ-45 Gigabit Ethernet port, and you can access the system through your internet browser or mobile devices thanks to iOS and Android support. Security is paramount, with user authentication and multiple language options available. To ensure your recordings are safe, the DHD316A supports up to two 3.5" HDDs, each with a capacity of up to 6TB, and includes S.M.A.R.T monitoring for hard drive health. The system even allows for PTZ camera control via RS-485.

General Informations

Specifications:

Supports (IP Video input)	AHD / Analog camera
Input (Video input)	16 CH
Simulation HD / Analog Camera Input Resolution(Video input)	AHD 1080P / 720P and analog camera D1 / 960H
Simulation HD / Analog Camera Maximum Input Frame Rate (Video input)	1080P 480 / 400 FPS , 720P 480 / 400 FPS , 960H 480 / 400 FPS
Video output	HDMI / VGA 1080P, CVBS
Split Screen	1 / 4 / 9 / 13 / 16 split division, sequence mode, freeze
Digital zoom	Up to 5× on live and playback
Privacy Masking	Each channel 4 privacy mask supported
Record Encode	H.264
Recording Resolution	CIF - 1080P ( 944×1080 )
Simulation HD / Analog Camera Maximum Recording Frame Rate( Recording )	1080P 240 / 200 FPS , 720P 480 / 400 FPS , 960H 480 / 400 FPS
Application/ Recording Mode	Continue, Schedule, Event
Recording schedule	4 schedule, 7day × 24 hours time table
Alarm event actions	Adjustable motion area (100 level sensitivities) / System / Video loss
Alarm Notification (Recording)	Alarm notification iOS、android / E-Mail / FTP / Buzzer
Playback Search	Event / Time
Playback Display	16CH synchronous playback
Playback Resolution	CIF - 1080P
Playback Speed	Fast rewind 4×-32× / Fast forward 4×-32× / Step Forward / Slow motion 1/2-1/8
Internal HDD (Storage)	2 × 3.5”HDD, each up to 6TB supported
USB Flash Disk(Backup)	Up to 32 GB supported
Network Backup	Via HTTP
Analog Audio Input(Audio)	4 CH, RCA × 1
Audio Output	RCA × 1 ( 0.7Vp-p, 300 Hz to 3KHz )
Network ports	RJ-45 Gigabit Ethernet × 1
Protocols	TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS
Web (Network)	Direct internet browser access / Multiple users access
Mobile Application	iOS / Android supported
P2P(Network)	QR Code APP scan / UID connection( Need additional option )
VMS support	CMS
Backup / Playback (Software)	IE / Remote control software
Reports( System )	Alarm event, operation and configuration log full reports exporting over HTTP or USB
Authentication ( System )	User authentication with feature configurable
Languages	Arabic / Bulgarian / Chinese( Simplified ) / Chinese ( Traditional ) / Croatian / Czech / Dutch / English / French / German / Greek / Hebrew / Indonesian / Italian / Japanese / Korean / Latvia / Persian / Polski / Portuguese / Romanian / Russian / Spanish / Thai / Turkish / Vietnamese
HDD Inspection(System)	S.M.A.R.T monitoring
Recorded Reserve Time( System )	Adjustable 1- 9999 hours
Time	Daylight saving / NTP
PTZ protocol	RS-485 × 1, MLP1、MLP2、PELCO D、PELCO P、SAMSUNG、LG-MULTIX
Remote control	IR Remote controller( Need additional option )
Mouse	Mouse click, drag and scroll
UTC	Up The Coax AHD camera supported
CPU	ARMv7 Processor
OS	Embedded Linux Kernel 3.0
WDT	Hardware watchdog timer
Power Supply	Adapter DC 12V, 5A, 60W × 1
Operating temperature	0℃ - 45℃
Operating humidity	5% - 80%
Dimensions	360× 316× 60 mm
Weight	≈3 kg ( Without hard drive )
